Components With Torque Specifications

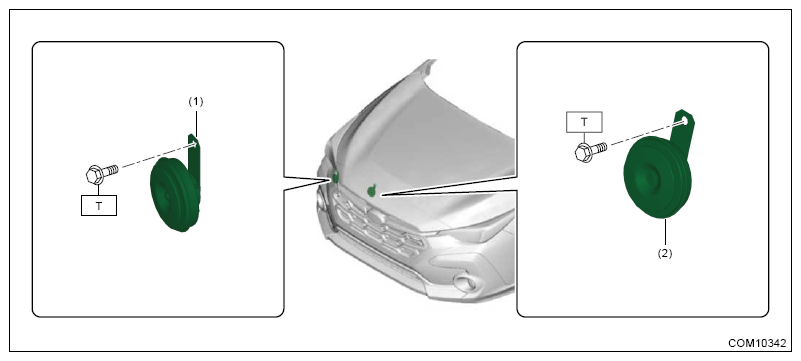

Fig 1: Horn Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Horn ASSY Lo
(2)	Horn ASSY Hi

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
