Model With Push Button Start

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

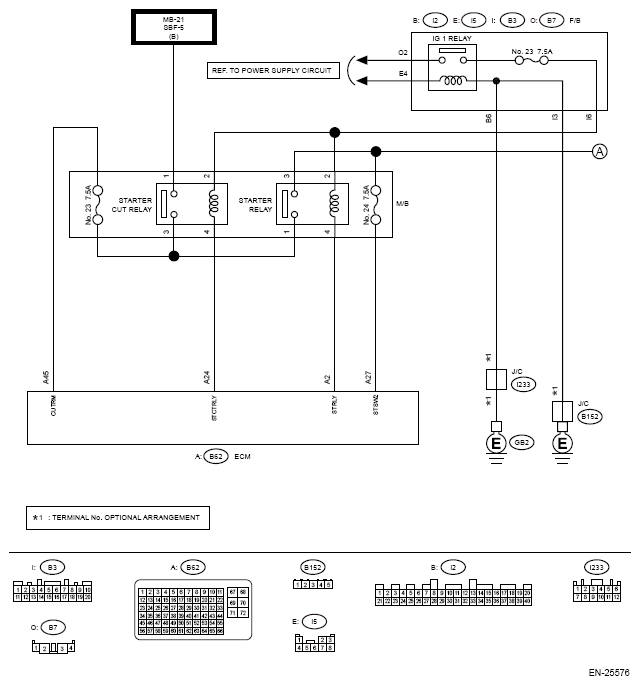

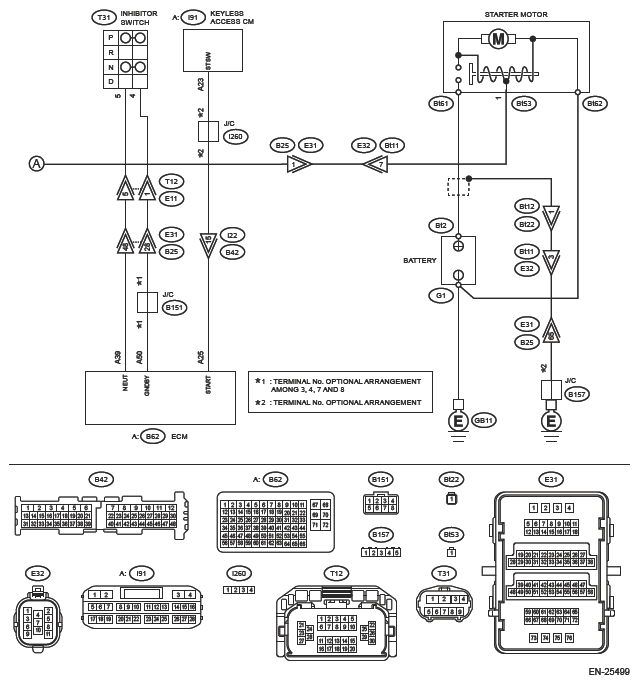

Wiring diagram  :

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM>2.0 L MODEL .

G16764988Courtesy of SUBARU OF AMERICA, INC.
G16764989Courtesy of SUBARU OF AMERICA, INC.
CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .
  1. CHECK BATTERY  .

    Check the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY>INSPECTION .

    Is the check result OK?

    Yes:  GO TO  2.

    No:  Charge or replace the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>BATTERY .

  2. CHECK OPERATION OF STARTER MOTOR  .

    Check the starter motor operation.

    Does the starter motor operate?

    Yes:  GO TO  3.

    No:  GO TO  4.

  3. CHECK DTC  .
    1. Turn the ignition switch to ON.
    2. Read the DTC of [Engine] using the Subaru Select Monitor. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .

    Are any DTCs displayed?

    Yes:  Check the appropriate DTC using the "Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>DIAGNOSTIC TROUBLE CODE (DTC) .

    No:  Check ignition control system. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>DIAGNOSTICS WITH PHENOMENON>IGNITION CONTROL SYSTEM .

  4. CHECK PUSH BUTTON IGNITION SWITCH  .
    1. Turn the ignition switch to OFF.
    2. Press the push button ignition switch twice with the ignition switch OFF (ACC OFF).
    NOTE: Release the brake pedal.

    Does the ignition switch turn to ON?

    Yes:  GO TO  5.

    No:  Check the push button start system. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>DIAGNOSTICS WITH PHENOMENON>LIST .

  5. CHECK PUSH BUTTON IGNITION SWITCH  .
    1. Depress the brake pedal.
      NOTE: Shift the select lever to "P" range.
    2. Check the push button ignition switch indicator.

    Does the indicator turn to green?

    Yes:  GO TO  6.

    No:  Check the push button start system. Ref. to KEYLESS ACCESS WITH PUSH BUTTON START (DIAGNOSTICS)>DIAGNOSTICS WITH PHENOMENON>LIST .

  6. CHECK START SWITCH SIGNAL  .
    1. Using the Subaru Select Monitor, read the value in [Starter Switch].
      NOTE: For detailed operation procedures, refer to "COMMON (DIAGNOSTICS)". Ref. to COMMON (DIAGNOSTICS)>DATA MONITOR .
    2. Press the push button ignition switch once with the brake pedal depressed.

    Does the value of [Starter Switch] change according to push button ignition switch operation?

    Yes:  GO TO  10.

    No:  GO TO  7.

  7. CHECK HARNESS BETWEEN ECM AND KEYLESS ACCESS CONTROL MODULE  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Disconnect the connector from the keyless access control module.
    4. Measure the resistance of harness between ECM connector and keyless access control module.

      Connector & terminal

      (B62) No. 25 - (i91) No. 23:

    Is the resistance less than 1 Ω?

    Yes:  GO TO  8.

    No:  Repair the harness and connector.

    NOTE: In this case, repair the following item:
    • Open circuit of harness between ECM connector and keyless access control module connector
    • Poor contact of coupling connector
    • Poor contact of J/C
  8. CHECK HARNESS BETWEEN ECM AND KEYLESS ACCESS CONTROL MODULE  .

    Measure the resistance between ECM connector and chassis ground.

    Connector & terminal

    (B62) No. 25 - Chassis ground:

    Is the resistance 1 MΩ or more?

    Yes:  GO TO  9.

    No:  Repair the short circuit to ground in harness between ECM connector and keyless access control module connector.

  9. CHECK START SWITCH SIGNAL  .
    1. Connect the connector to ECM.
    2. Connect the connector to the keyless access control module.
    3. Read the waveform of start switch signal using an oscilloscope.
    4. Press the push button ignition switch once with the brake pedal depressed.

      Connector & terminal

      (B62) No. 25 (+) - Chassis ground (-):

    Does waveform of the start switch signal occur?

    Yes:  Repair the poor contact of ECM connector.

    No:  Repair the poor contact of keyless access control module connector.

  10. CHECK INPUT SIGNAL FOR STARTER MOTOR  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from starter motor.
    3. Place the select lever in "P" range or "N" range.
    4. Press the push button ignition switch once with the brake pedal depressed.
    5. Measure the voltage between starter motor connector and chassis ground.

      Connector & terminal

      (Bt53) No. 1 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes:  Check the starter motor. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>STARTER>INSPECTION .

    No:  GO TO  11.

  11. CHECK INPUT VOLTAGE OF IG1 RELAY  .
    1. Turn the ignition switch to OFF.
    2. Remove the IG1 relay.
    3. Turn the ignition switch to ON. (Engine OFF)
    4. Measure the voltage between F/B (IG1 relay) connector and chassis ground.

      Connector & terminal

      (B7) No. 2 (+) - Chassis ground (-):

      (i5) No. 4 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes:  GO TO  12.

    No:  Check the following item and repair or replace if necessary.

    • Open circuit or short circuit to ground in harness between F/B (IG1 relay) connector and power supply circuit
    • Open circuit or short circuit to ground in harness between F/B (IG1 relay) connector and keyless access control module connector
    • Blown out of fuse
  12. CHECK IG1 RELAY GROUND CIRCUIT  .
    1. Turn the ignition switch to OFF.
    2. Measure the resistance in harness between F/B (IG1 relay) connector and chassis ground.

      Connector & terminal

      (B3) No. 3 - Chassis ground:

      (i2) No. 6 - Chassis ground:

    Is the resistance less than 5 Ω?

    Yes:  GO TO  13.

    No:  Check the following item and repair if necessary.

    • Open circuit of the harness between F/B (IG1 relay) connector and chassis ground
    • Poor contact of J/C
  13. CHECK IG1 RELAY  .

    Check the F/B (IG1 relay). Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE>INSPECTION>CHECK RELAY .

    Is the check result OK?

    Yes:  GO TO  14.

    No:  Replace the IG1 relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE .

  14. CHECK INPUT VOLTAGE OF STARTER CUT RELAY  .
    1. Remove the starter cut relay.
    2. Install the IG1 relay.
    3. Turn the ignition switch to ON. (Engine OFF)
    4. Measure the voltage between M/B (starter cut relay) terminal No. 1 and No. 2 and chassis ground.

      Terminals

      No. 1 (+) - Chassis ground (-):

      No. 2 (+) - Chassis ground (-):

    Is the voltage 10 V or more?

    Yes:  GO TO  15.

    No:  Check the following item and repair if necessary.

    • Open circuit or short circuit to ground in harness between SBF-5 and M/B (starter cut relay)
    • Open circuit or short circuit to ground in harness between M/B (starter cut relay) and F/B (IG1 relay) connector
    • Blown out of fuse
    • Poor contact of F/B connector
    • Replacement of F/B
    • Replacement of M/B
  15. CHECK HARNESS BETWEEN ECM AND M/B (STARTER CUT RELAY)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Measure the resistance of harness between ECM connector and M/B (starter cut relay) terminal No. 4.

      Connector & terminal

      (B62) No. 24 - No. 4:

    Is the resistance less than 1 Ω?

    Yes:  GO TO  16.

    No:  Check the following item and repair if necessary.

    • Open circuit in harness between ECM connector and M/B (starter cut relay)
    • Replacement of M/B
  16. CHECK STARTER CUT RELAY  .

    Check the starter cut relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE>INSPECTION>CHECK RELAY .

    Is the check result OK?

    Yes:  GO TO  17.

    No:  Replace the starter cut relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE .

  17. CHECK INPUT VOLTAGE OF STARTER RELAY  .
    1. Remove the starter relay.
    2. Install the starter cut relay.
    3. Connect the connector to ECM.
    4. While depressing the brake pedal, press the push button ignition switch once, and measure the voltage between M/B (starter relay) terminal No. 1 and No. 2 and chassis ground.

      Terminals

      No. 1 (+) - Chassis ground (-):

      No. 2 (+) - Chassis ground (-):

      NOTE: Shift the select lever to "P" range.

    Is the voltage 10 V or more?

    Yes:  GO TO  18.

    No:  Check the following item and repair if necessary.

    • Open circuit in harness between M/B (starter relay) and M/B (starter cut relay)
    • Open circuit of the harness between M/B (starter relay) and F/B (IG1 relay) connector
  18. CHECK HARNESS BETWEEN ECM AND M/B (STARTER RELAY)  .
    1. Turn the ignition switch to OFF.
    2. Disconnect the connector from ECM.
    3. Measure the resistance of harness between ECM connector and M/B (starter relay) terminal No. 4.

      Connector & terminal

      (B62) No. 2 - No. 4:

    Is the resistance less than 1 Ω?

    Yes:  GO TO  19.

    No:  Check the following item and repair if necessary.

    • Open circuit in harness between ECM connector and M/B (starter relay)
    • Replacement of M/B
    • Poor contact of coupling connector (model with alarm control)
  19. CHECK STARTER RELAY  .

    Check the starter relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE>INSPECTION>CHECK RELAY .

    Is the check result OK?

    Yes:  GO TO  20.

    No:  Replace the starter relay. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>RELAY AND FUSE .

  20. CHECK HARNESS BETWEEN M/B (STARTER RELAY) AND STARTER MOTOR  .
    1. Disconnect the connector from starter motor.
    2. Measure the resistance of harness between M/B (starter relay) terminal No. 3 and starter motor connector.

      Connector & terminal

      No. 3 - (Bt53) No. 1:

    Is the resistance less than 1 Ω?

    Yes:  Check the engine control module (ECM) power supply and ground line. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>DIAGNOSTICS WITH PHENOMENON>CHECK POWER SUPPLY AND GROUND LINE OF ENGINE CONTROL MODULE (ECM) .

    No:  Check the following item and repair if necessary.

    • Open circuit of harness between M/B (starter relay) and starter motor connector
    • Poor contact of coupling connector
    NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DO 2.0)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .
