Heat Shield Cover

Courtesy of SUBARU OF AMERICA, INC.

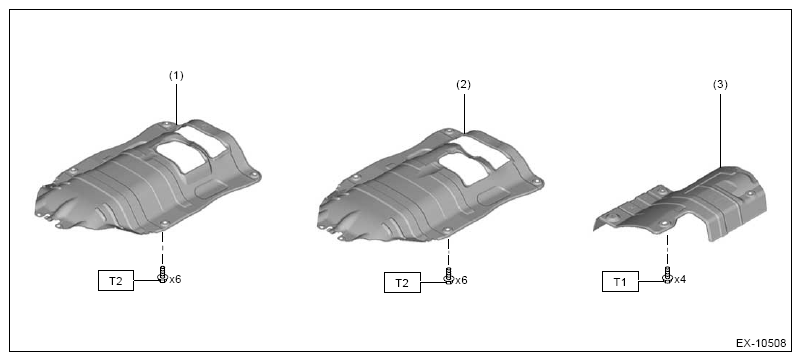

(1)	Center exhaust cover (sedan model)
(2)	Center exhaust cover (except for sedan model)
(3)	Rear exhaust cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 10 (1.0, 7.4)

T2: 18 (1.8, 13.3)
