Model Without Push Button Start

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Failure of engine to start

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

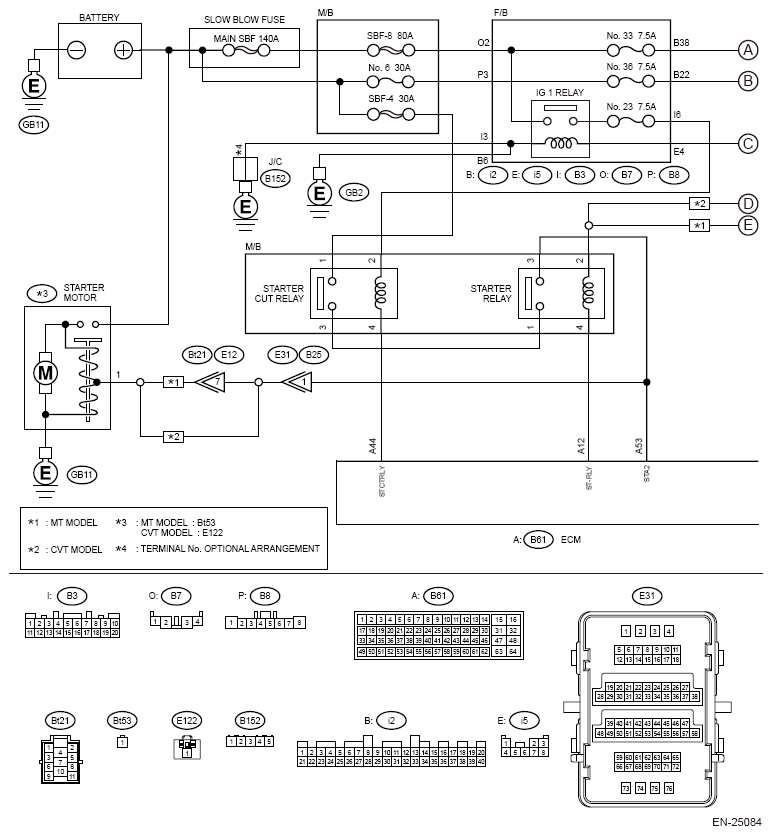

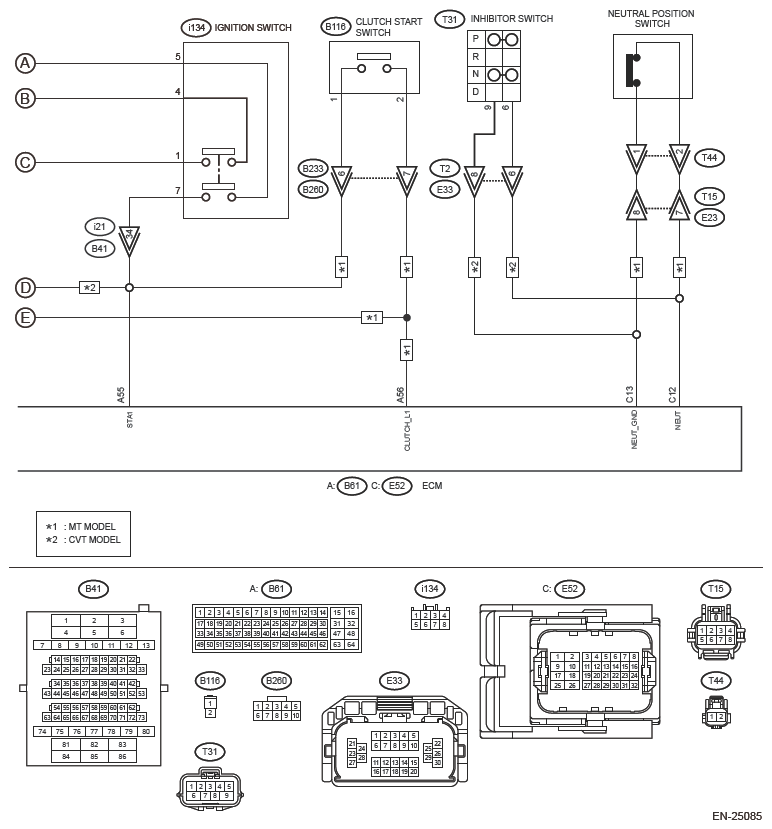

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

G14614568

Courtesy of SUBARU OF AMERICA, INC.

G14614569

Courtesy of SUBARU OF AMERICA, INC.

CHECK DTC .
1. Using the Subaru Select Monitor or a general scan tool, perform the clear memory of [Engine]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
2. Start and idle the engine for three minutes or more.
3. Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC P0512 displayed? (Current code)

Yes: Go to 2.

No: Even if DTC is detected, the circuit has returned to a normal condition at this time.

Reproduce the failure, and then perform the diagnosis again. In this case, a malfunction may be detected by continuously holding the ignition key at START position.
CHECK HARNESS BETWEEN ECM AND IGNITION SWITCH (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Turn the ignition switch to ON.
4. Measure the voltage between ECM connector and engine ground.
  Connector & terminal

  (B61) No. 55 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes: Repair the short circuit to power supply in harness between ECM connector and ignition switch connector.

No: Repair the poor contact of ECM connector.
