Battery Cable Assembly: Installation

Install the terminal base.

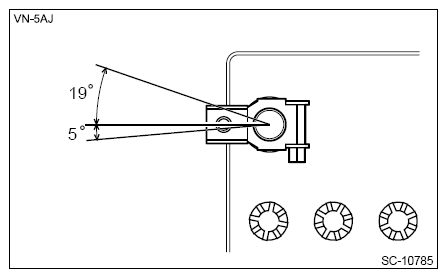

NOTE: Install the part so that the center of the terminal base comes within the range shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

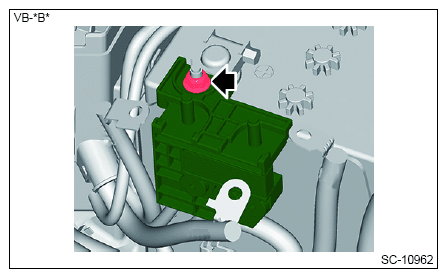

Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

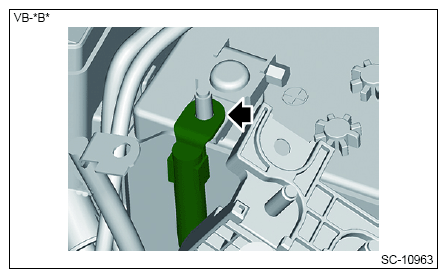

Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.

Courtesy of SUBARU OF AMERICA, INC.

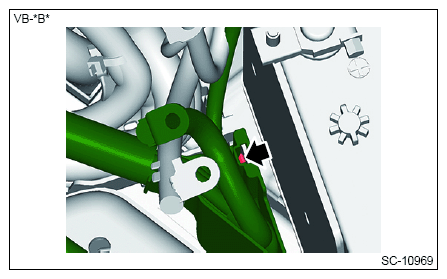

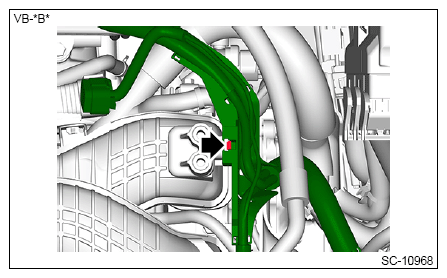

Secure the battery cable assembly to the intake manifold assembly with claw.

Courtesy of SUBARU OF AMERICA, INC.
Connect the terminal B (A) and ground terminal (B). (CVT model)
Tightening torque:

T1: 11 N.m (1.1 kgf-m, 8.1 ft-lb)

T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

Fig 1: Ground Terminal With Torque Specification (CVT Model)
Courtesy of SUBARU OF AMERICA, INC.

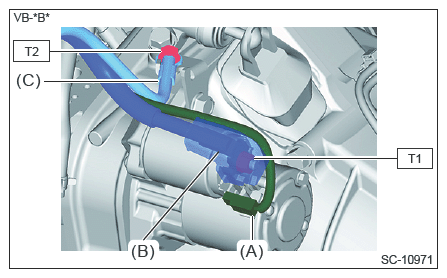

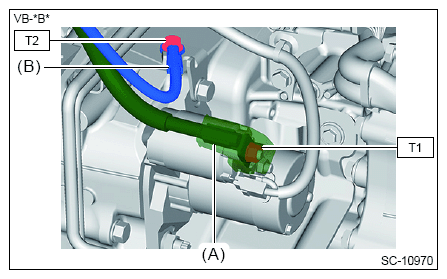

Connect the connector (A), terminal B (B) and ground terminal (C). (MT model)
Tightening torque:

T1: 11 N.m (1.1 kgf-m, 8.1 ft-lb)

T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

Fig 2: Ground Terminal With Torque Specification (MT Model)
Courtesy of SUBARU OF AMERICA, INC.

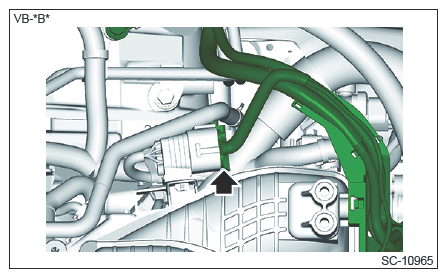

Connect the connector.

Courtesy of SUBARU OF AMERICA, INC.
Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .

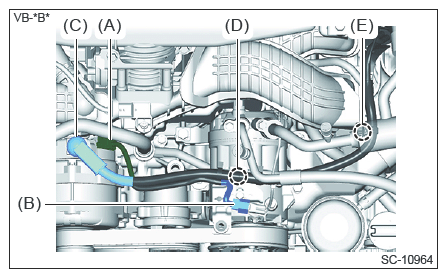

Secure the battery cable assembly with the clip (E) and clip (D).
Connect the terminal (C), connector (B) and connector (A).
Tightening torque:

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt cover.
NOTE:
- Check the grommet for peel-off or disengagement.
- Be careful not to deform the bracket during installation.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)
Connect the terminal (B) and the terminal (A) to the slow blow fuse (C).
Tightening torque:

5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

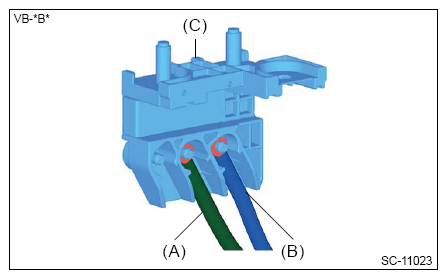

Set the terminal of battery cable assembly to the terminal base.

Courtesy of SUBARU OF AMERICA, INC.
Connect the slow blow fuse to the terminal base.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

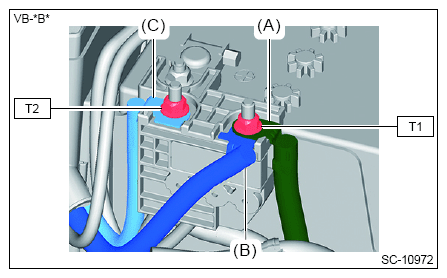

Connect the terminal (C), terminal (B) and terminal (A).
Tightening torque:

T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

Fig 3: Terminal Nuts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.

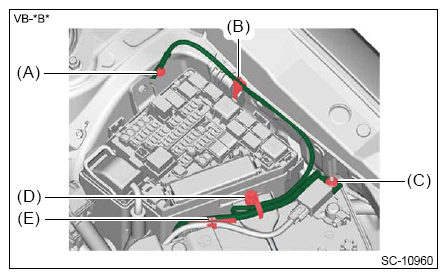

Install the battery sensor harness to the clip (E).
Install the battery cable holder (D), and connect the ground terminal (C).
CAUTION: Install the battery sensor and battery cable assembly without applying an excessive force.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

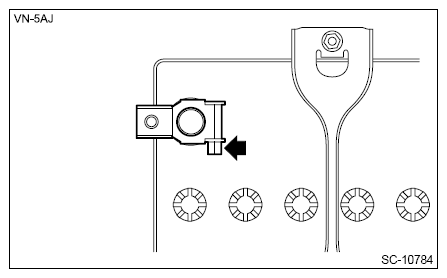

Install the ground cable to the clip (B), and connect the ground terminal (A).
Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
