Battery Cable Assembly

• CVT model

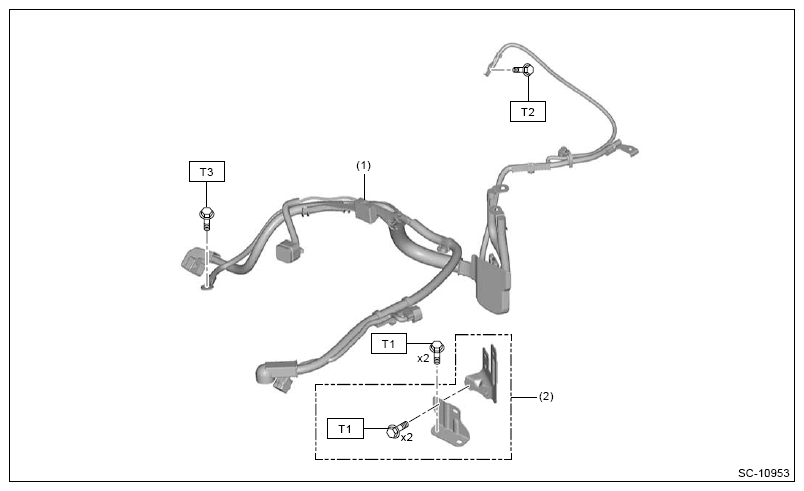

Fig 1: Battery Cable Assembly Components Location - CVT Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 13 (1.3, 9.6)

T3: 14 (1.4, 10.3)

• MT model

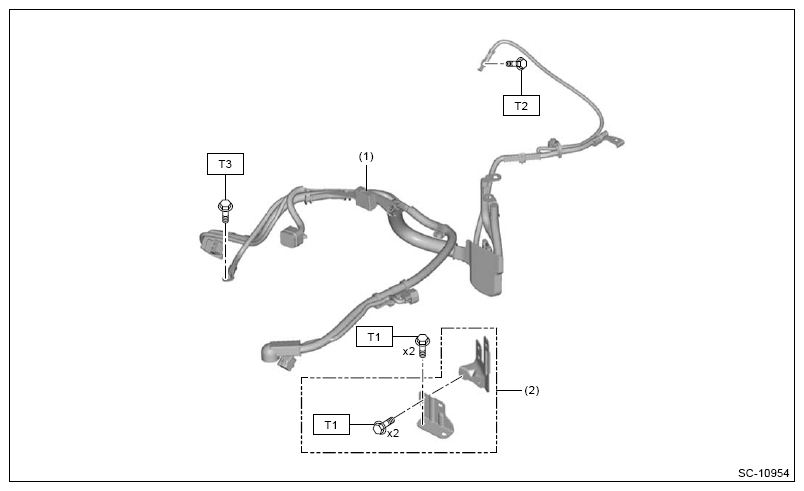

Fig 2: Battery Cable Assembly Components Location - MT Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 13 (1.3, 9.6)

T3: 14 (1.4, 10.3)
