Engine Starting System & Charging System: Starter: Assembly

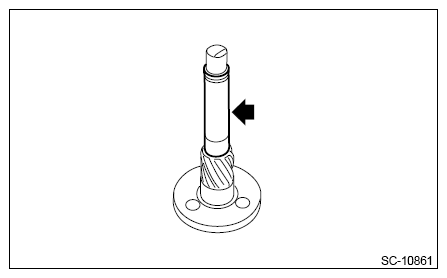

  1. Apply grease to the sliding parts of the shaft.

    Preparation items:

    Grease: Multemp #6129 or equivalent

    G16524667Courtesy of SUBARU OF AMERICA, INC.

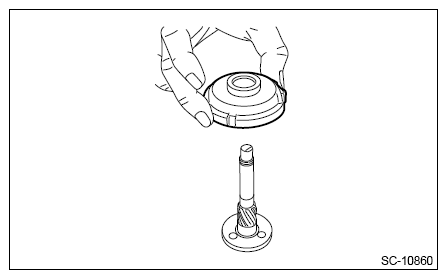

  2. Install the internal gear to the shaft.
    G16524652Courtesy of SUBARU OF AMERICA, INC.
  3. Install the overrunning clutch as follows:

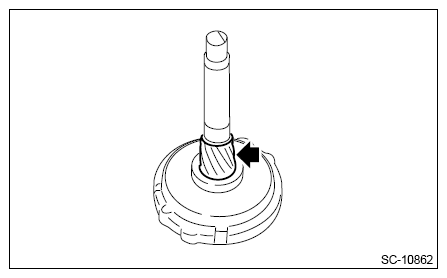

    1. Apply grease to the spline portion of the shaft.

      Preparation items:

      Grease: Multemp #6129 or equivalent

      G16524669Courtesy of SUBARU OF AMERICA, INC.

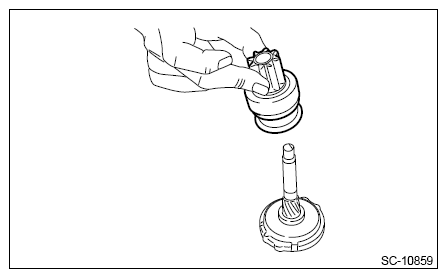

    2. Set the overrunning clutch.
      G16524651Courtesy of SUBARU OF AMERICA, INC.

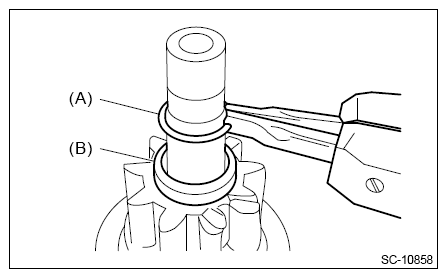

    3. Pass a new stopper (B) through, and attach a new snap ring (A).
      G16524650Courtesy of SUBARU OF AMERICA, INC.
    4. Using a press, pressure fit stopper (B) into snap ring (A).
    CAUTION: Do not apply any load to the internal gear.
    G07665135Courtesy of SUBARU OF AMERICA, INC.

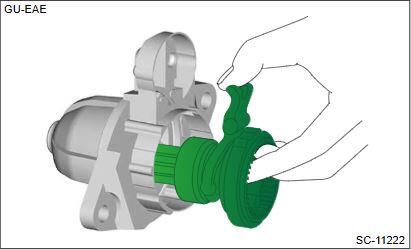

  4. Install the overrunning clutch, internal gear, shaft and shift lever as a single unit to the starter housing.
    NOTE: Apply grease to the moving parts of the shift lever.

    Preparation items:

    Grease: Multemp #6129 or equivalent

    G00674236Courtesy of SUBARU OF AMERICA, INC.

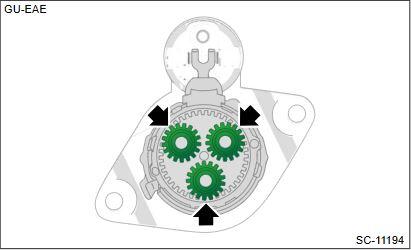

  5. Apply grease to the inside of the internal gear and pinion gear, and attach the pinion gear to the internal gear.
    NOTE: Apply grease evenly to the contact surfaces of each gear.

    Preparation items:

    Grease: Molykote® AG650 or equivalent

    G00674237Courtesy of SUBARU OF AMERICA, INC.

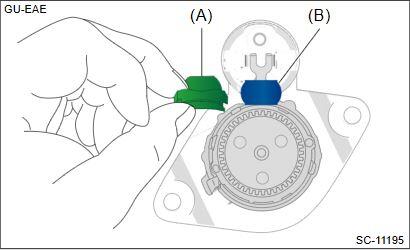

  6. Install the plate (B) and seal rubber (A).
    G00674238Courtesy of SUBARU OF AMERICA, INC.

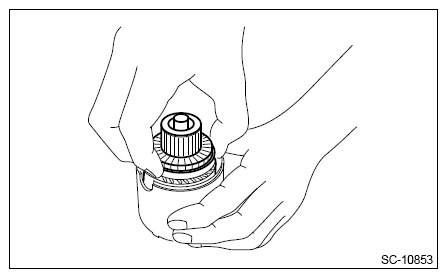

  7. Set the armature to the yoke.
    G16524645Courtesy of SUBARU OF AMERICA, INC.
  8. Attach the armature and yoke to the starter housing together as a single unit.
    NOTE: As shown in the figure, match the protrusion of the yoke to the cut out of the starter housing.
    G13199235Courtesy of SUBARU OF AMERICA, INC.
  9. Use an appropriate tool (suitable attachment, etc.) to attach the brush holder.
    NOTE: Be careful not to damage the brushes.
    G13199236Courtesy of SUBARU OF AMERICA, INC.

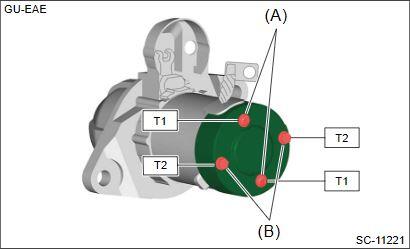

  10. Set the starter cover and install the bolts (A) and through bolts (B).

    Tightening torque:

    1. CVT model

      T1:  3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

      T2:  3.5 N.m (0.4 kgf-m, 2.6 ft-lb)

    2. MT model

      T1:  3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

      T2:  6.1 N.m (0.6 kgf-m, 4.5 ft-lb)

    G00674239Courtesy of SUBARU OF AMERICA, INC.

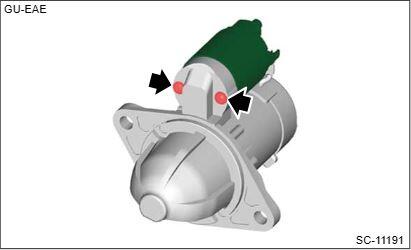

  11. Install the magnet switch.

    Tightening torque:

    1. CVT model

      3.4 N.m (0.3 kgf-m, 2.5 ft-lb)

    2. MT model

      5.9 N.m (0.6 kgf-m, 4.3 ft-lb)

    G00674240Courtesy of SUBARU OF AMERICA, INC.

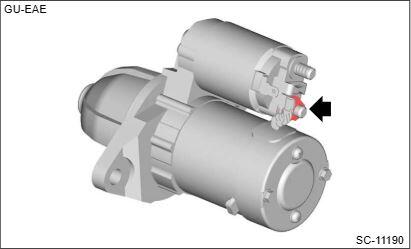

  12. Connect the cable to the terminal M.

    Tightening torque:

    1. CVT model

      10.7 N.m (1.1 kgf-m, 7.9 ft-lb)

    2. MT model

      10.7 N.m (1.1 kgf-m, 7.9 ft-lb)

    G00674241Courtesy of SUBARU OF AMERICA, INC.
