Battery Cable Assembly: Installation

  1. Set the battery cable assembly, and secure the battery cable assembly to the bracket with claw.
    G13619475Courtesy of SUBARU OF AMERICA, INC.
  2. Secure the battery cable assembly with the claw (D) and clip (C).
  3. Install the engine wiring harness to the clip (B), and connect the connector (A).
    G16383935Courtesy of SUBARU OF AMERICA, INC.
  4. Secure the battery cable assembly with the clip (A) and clip (B).
  5. Connect the connector (C), connector (D), connector (E) and the terminal (F).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

    G13618388Courtesy of SUBARU OF AMERICA, INC.
  6. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685912Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  7. Install the V-belt cover.
    NOTE:
    • Check the grommet for peel-off or disengagement.
    • Be careful not to deform the bracket during installation.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

    G13618354Courtesy of SUBARU OF AMERICA, INC.
  8. Connect the ground terminal (C).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    14 N.m (1.4 kgf-m, 10.3 ft-lb)

  9. Connect the terminal B (B) and connector (A).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    11 N.m (1.1 kgf-m, 8.1 ft-lb)

    G13619436Courtesy of SUBARU OF AMERICA, INC.
  10. After connecting the terminal B, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685908Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  11. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685909Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  12. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
  13. Connect the terminal (A) and the terminal (B) to the slow blow fuse (C).

    Tightening torque:

    5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

    G14601659Courtesy of SUBARU OF AMERICA, INC.
  14. Set the terminal of battery cable assembly to the terminal base.
    G16383928Courtesy of SUBARU OF AMERICA, INC.
  15. Connect the slow blow fuse to the terminal base.
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G13619483Courtesy of SUBARU OF AMERICA, INC.
  16. Connect the terminal (C), terminal (B) and terminal (A).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    T1: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    T2: 14 N.m (1.4 kgf-m, 10.3 ft-lb)

    G16383945Courtesy of SUBARU OF AMERICA, INC.

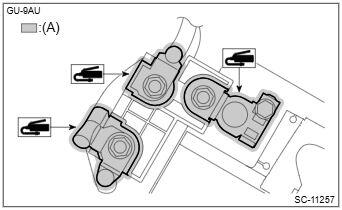

  17. After connecting each terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685913Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
  18. Install the battery cable assembly to the clip (E).
  19. Install the battery cable holder (D), and connect the ground terminal (C).
    CAUTION:
    • Install the battery sensor and battery cable assembly without applying an excessive force.
    • As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.
    • Do not apply anti-rust grease to the battery sensor and the ground terminal.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  20. Install the ground cable to the clip (B), and connect the ground terminal (A).
    CAUTION: As residual anti-rust grease or dirt on the threads (bolts and nuts), terminals and seating surfaces may cause overtorque, clean and degrease them.

    Tightening torque:

    13 N.m (1.3 kgf-m, 9.6 ft-lb)

    G16383925Courtesy of SUBARU OF AMERICA, INC.
  21. After connecting the ground terminal, apply a thin coat of anti-rust grease to the terminal section.
    CAUTION: This procedure is required to prevent rust and suppress sulfation.

    Preparation items:

    Grease: Viscotech R174 or equivalent Ref. to RECOMMENDED MATERIALS>GREASE>STARTING/CHARGING SYSTEM

    G00685914Courtesy of SUBARU OF AMERICA, INC.
    (A) Anti-rust grease application area
