Ignition System - NIPPONDENSO Electronic: Overhaul

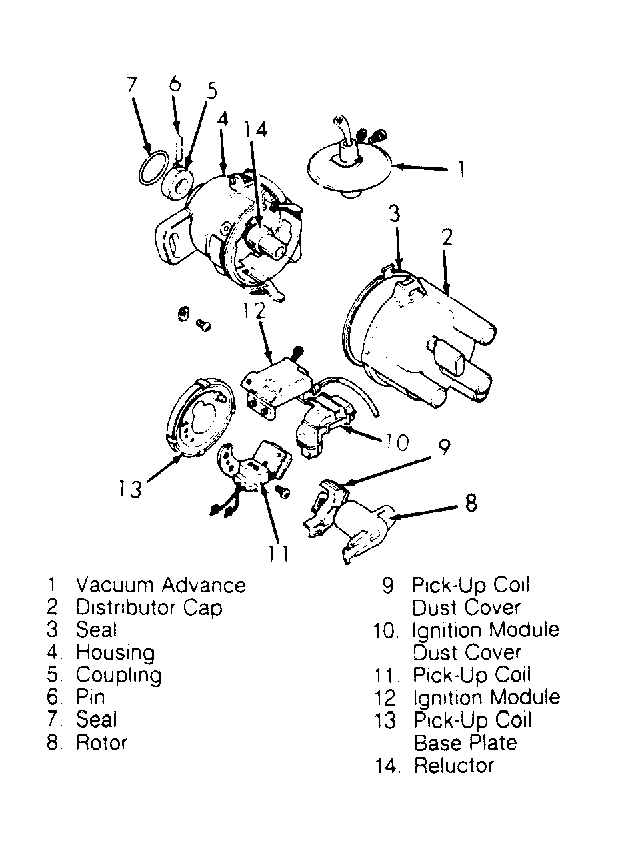

Fig 1: Exploded View of Samurai (Non-Turbo) Distributor
G94276Courtesy of ISUZU MOTOR CO.
