Steering Column: Inspection

See Fig 1 or Fig 2 for column damage measurements. If measurements are not within specification, replace steering column.

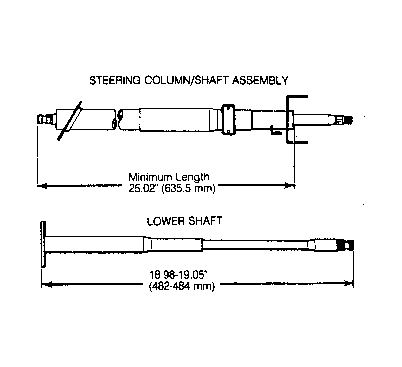

Fig 1: Measuring Steering Shaft & Column (Samurai)

Courtesy of SUZUKI OF AMERICA CORP.

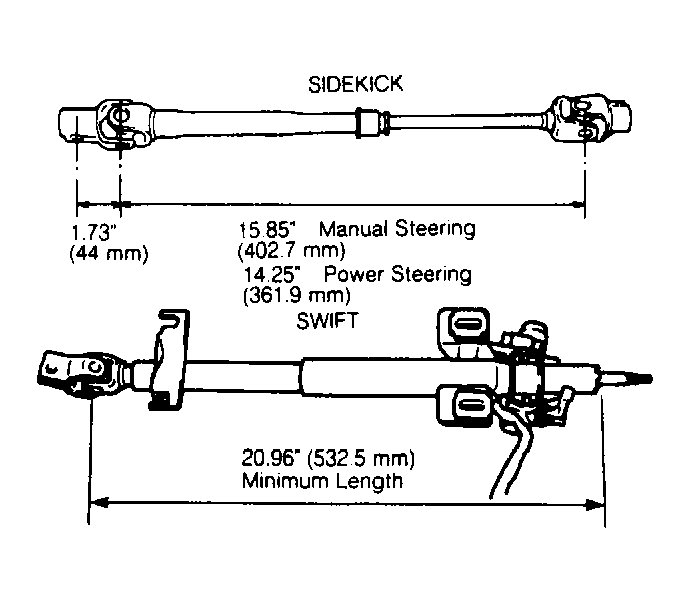

Fig 2: Measuring Steering Shaft & Column (Sidekick & Swift)

Courtesy of SUZUKI OF AMERICA CORP.
