Bench Testing: Condenser

Using an ohmmeter set to read capacitance, check capacity of condenser in regulator. See Fig 1. Condenser capacitance should be .5 microfarads. If not, replace the regulator.

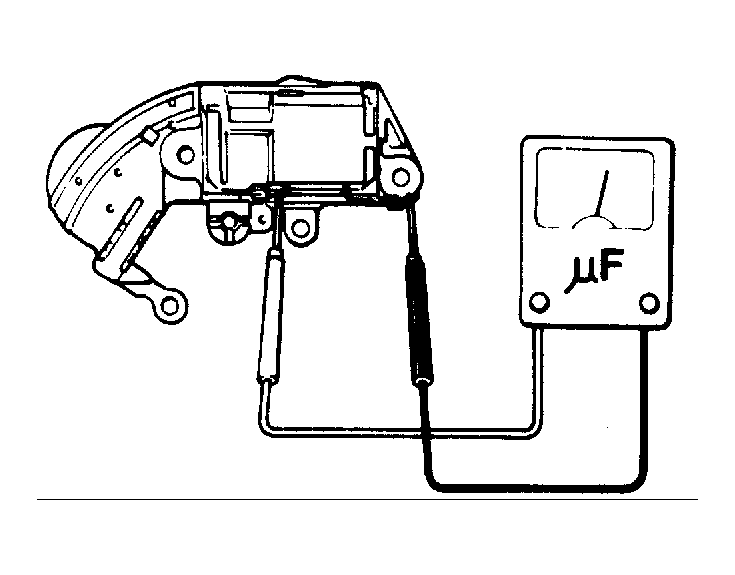

Fig 1: Testing Condenser Capacitance

Courtesy of SUZUKI OF AMERICA CORP.
