Control Units

CONTROL UNITS LOCATION

Component Location
A/T Control Module Under center of dash. See Figure .
Daytime Running Light (DRL) Controller (Canada) Behind left side of dash, left of steering column.

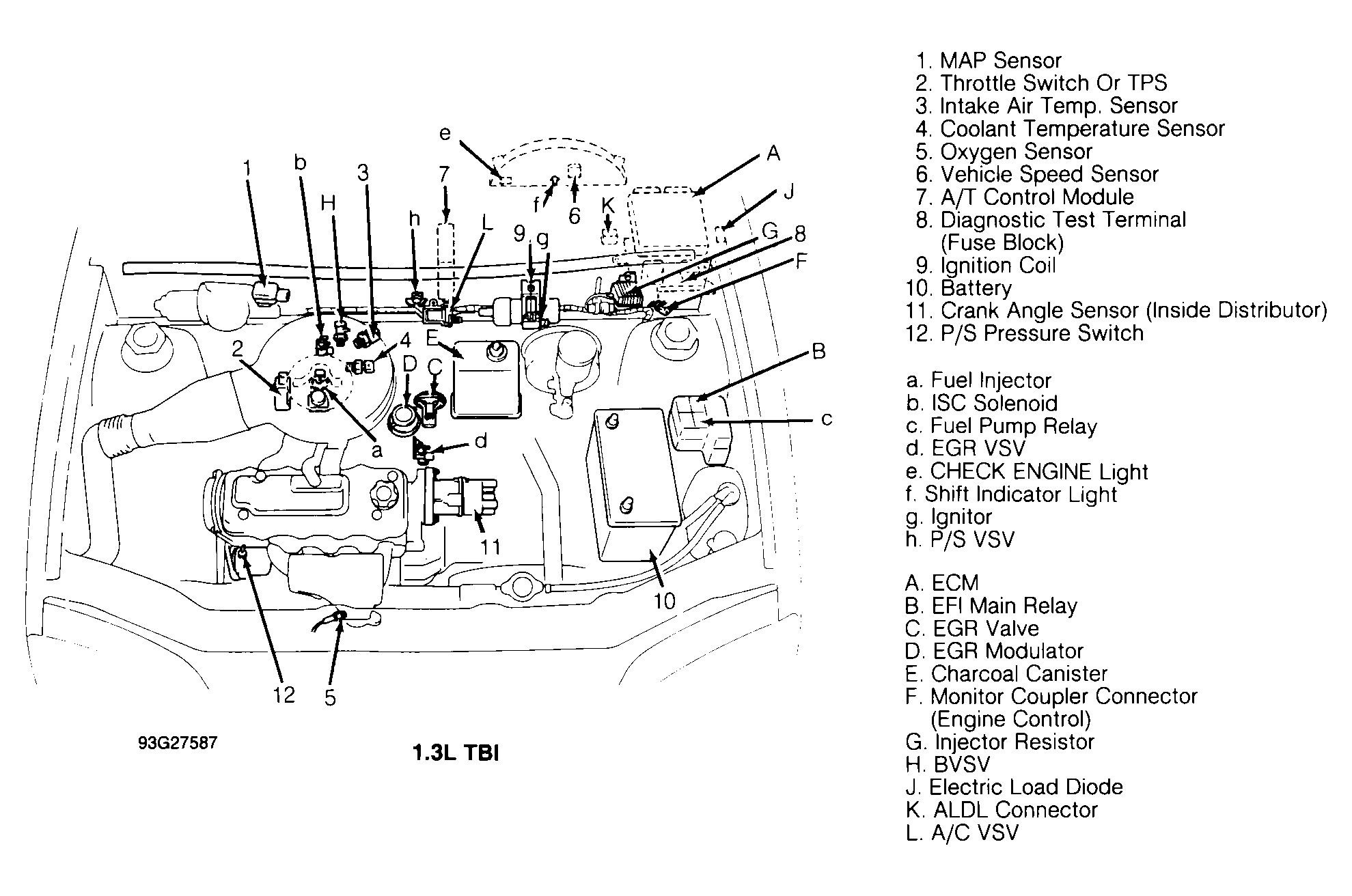

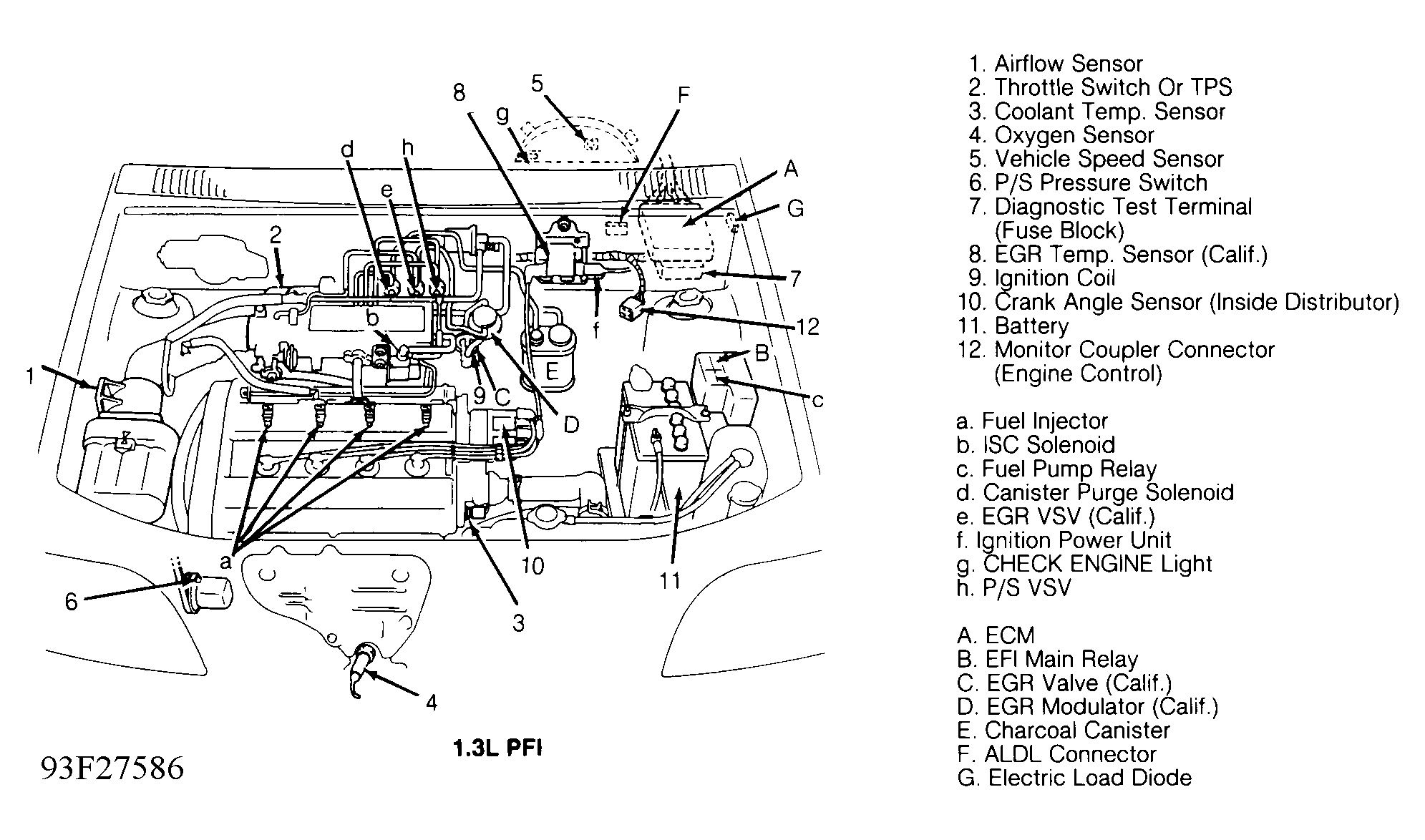

Electronic Control Module (ECM) Behind left side of dash. See Figure & Figure .
