Code 13 - Oxygen Sensor Circuit

Fig 1: Code 13 - Schematic
G91J18522Courtesy of SUZUKI OF AMERICA CORP.

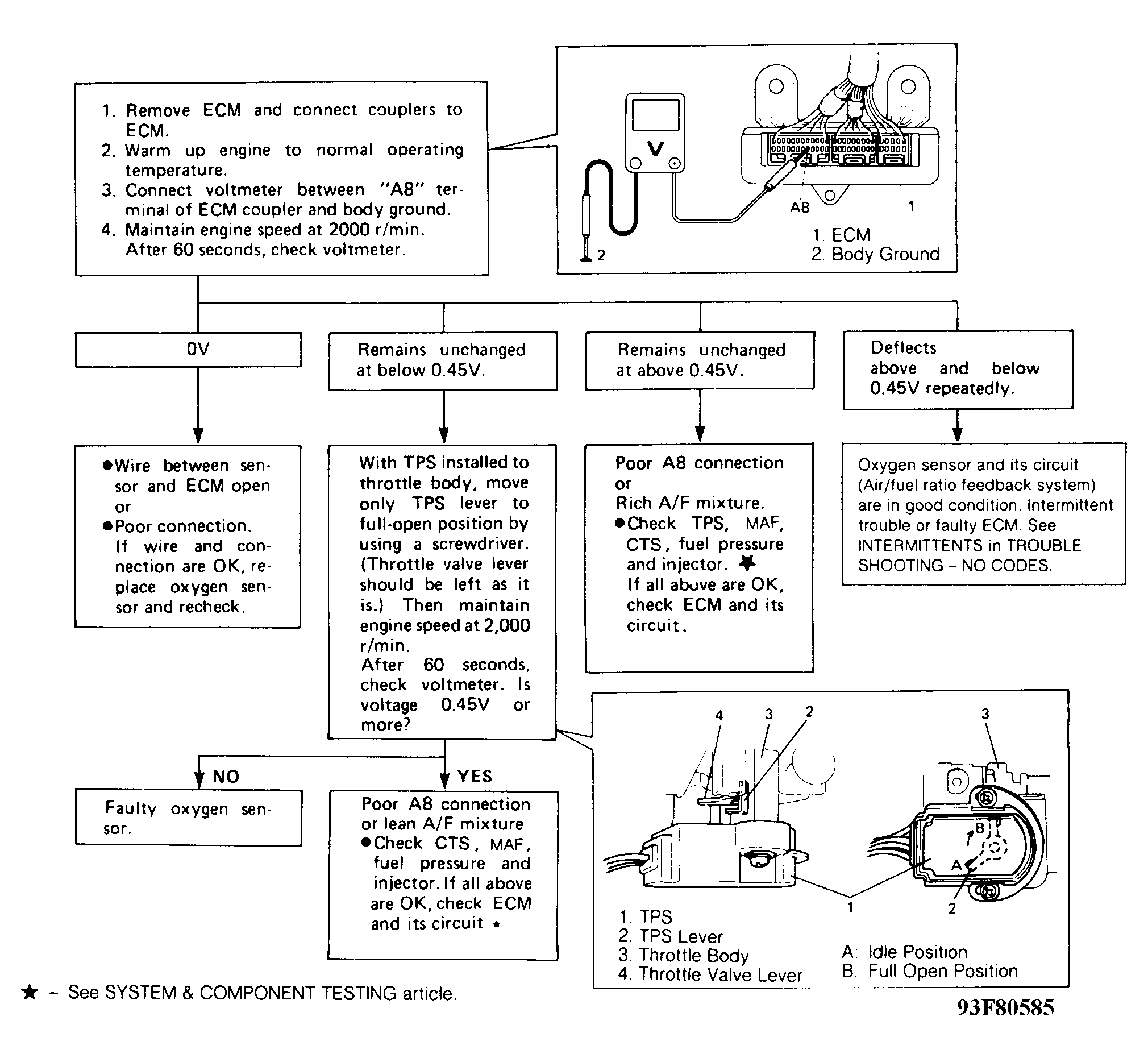

Fig 2: Code 13 - Diagnostic Flowchart
G93F80585Courtesy of SUZUKI OF AMERICA CORP.
