Code 24 - Speed Sensor Circuit Check

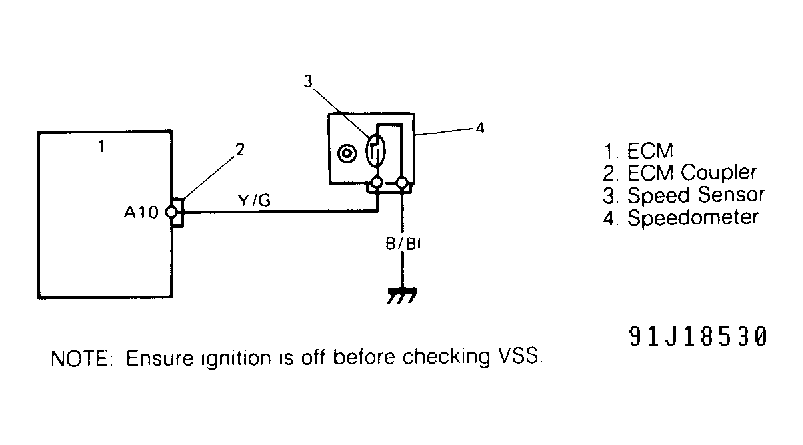

Fig 1: Code 24 - Schematic
G91J18530Courtesy of SUZUKI OF AMERICA CORP.

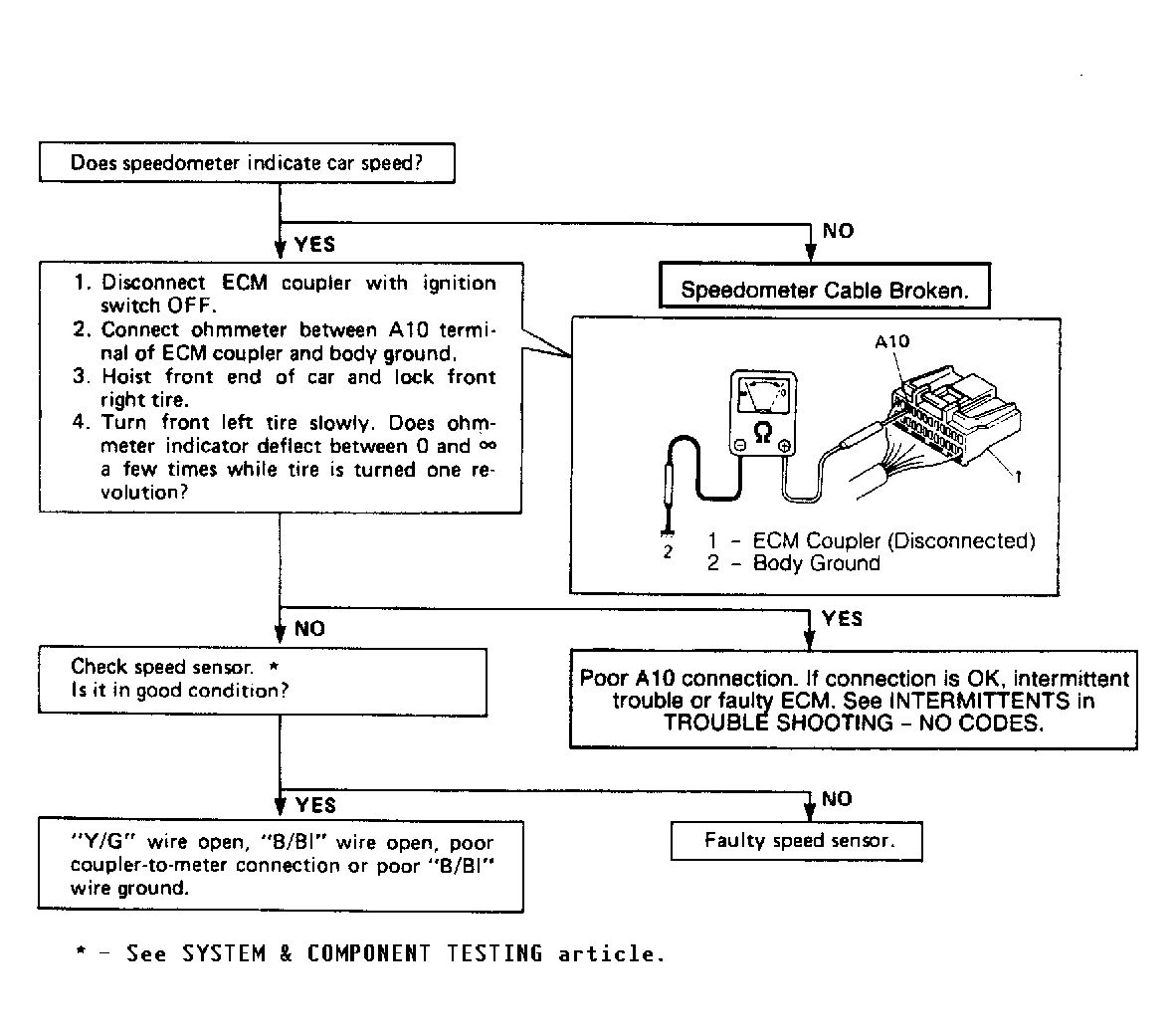

Fig 2: Code 24 - Diagnostic Flowchart
G91A18531Courtesy of SUZUKI OF AMERICA CORP.
