1996 Sidekick With 4-Speed A/T & X90

WARNING: This page is about a different car, the 1996 Suzuki X-90 and 1996 Suzuki Sidekick. However, it is still accessible from the selected car via links, so may be relevant.

Apply parking brake. Disconnect electrical connector at shift switch, located on side of transmission. SeeFigure .
Note terminal identification on shift switch. SeeFig 1 . Using ohmmeter, check for continuity between specified terminals with shift lever in specified positions. See SHIFT SWITCH SPECIFICATIONS . If proper continuity does not exist, adjust or replace shift switch as necessary.

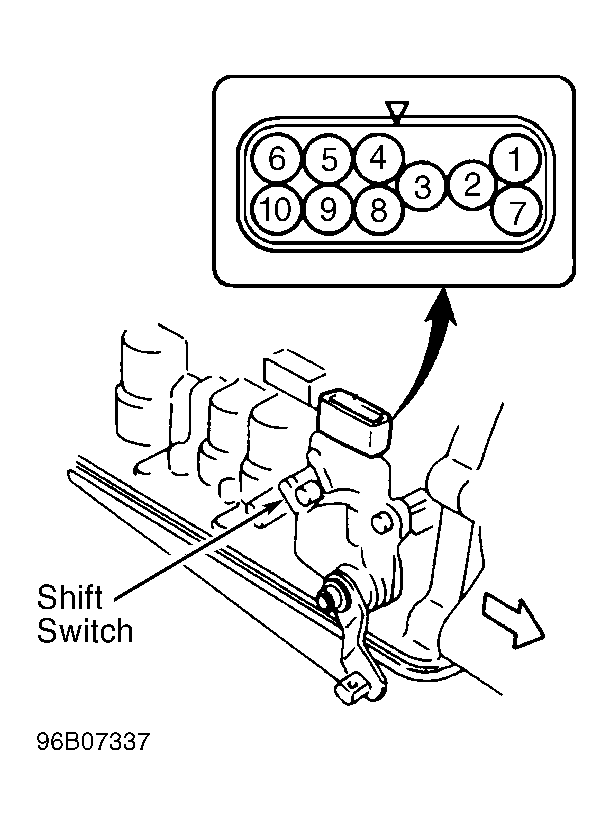

Fig 1: Identifying Shift Switch Terminals (Sidekick With 4-Speed A/T & X90)

Courtesy of SUZUKI OF AMERICA CORP.
