Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

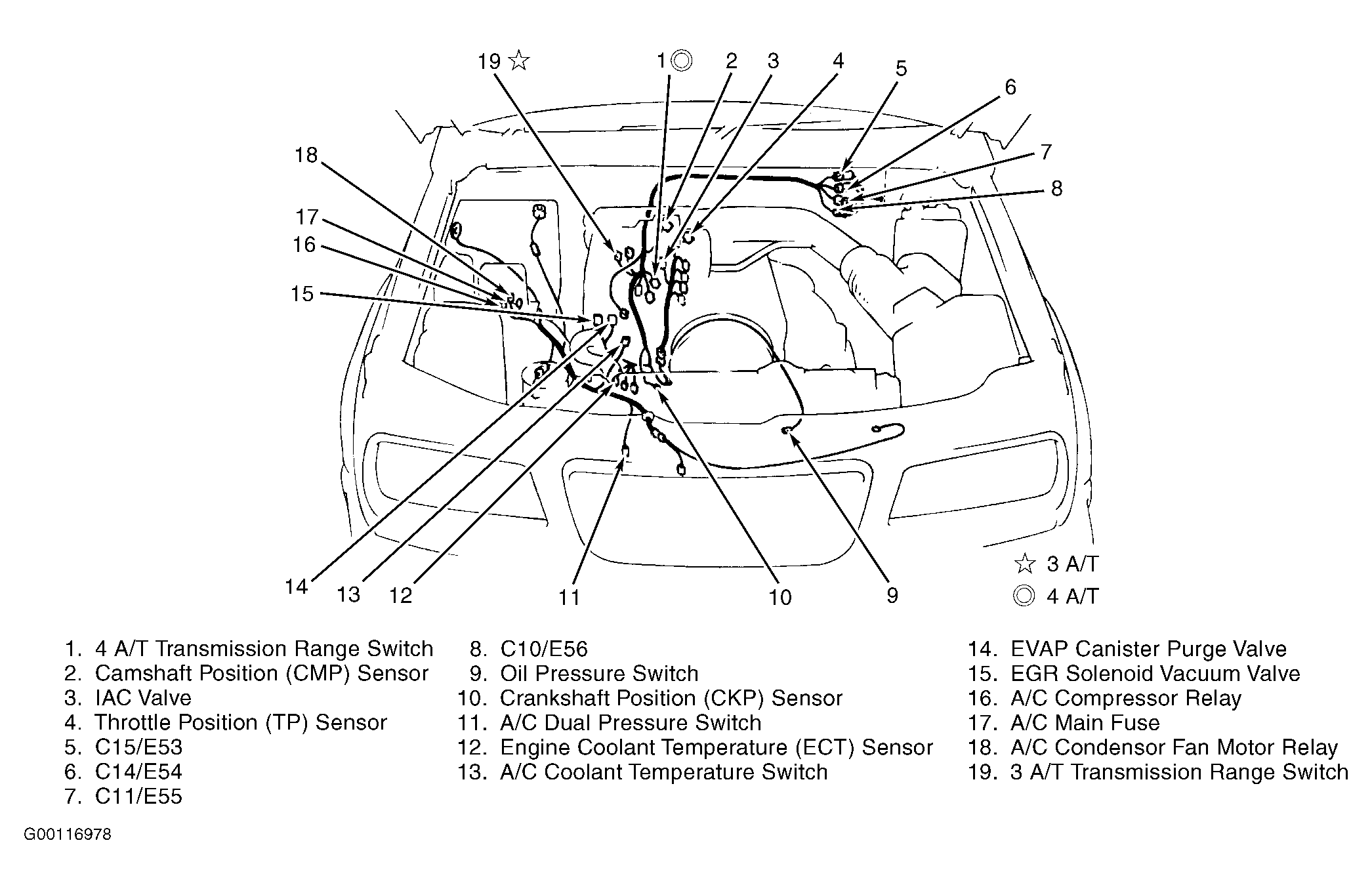

A/C Main Fuse On engine room fuse block, in front of battery. See Figure .
Fuse Block (Engine Compartment) On right fender inner panel, in front of battery.
Fuse Block (Passenger Compartment) Behind dash, under steering column.

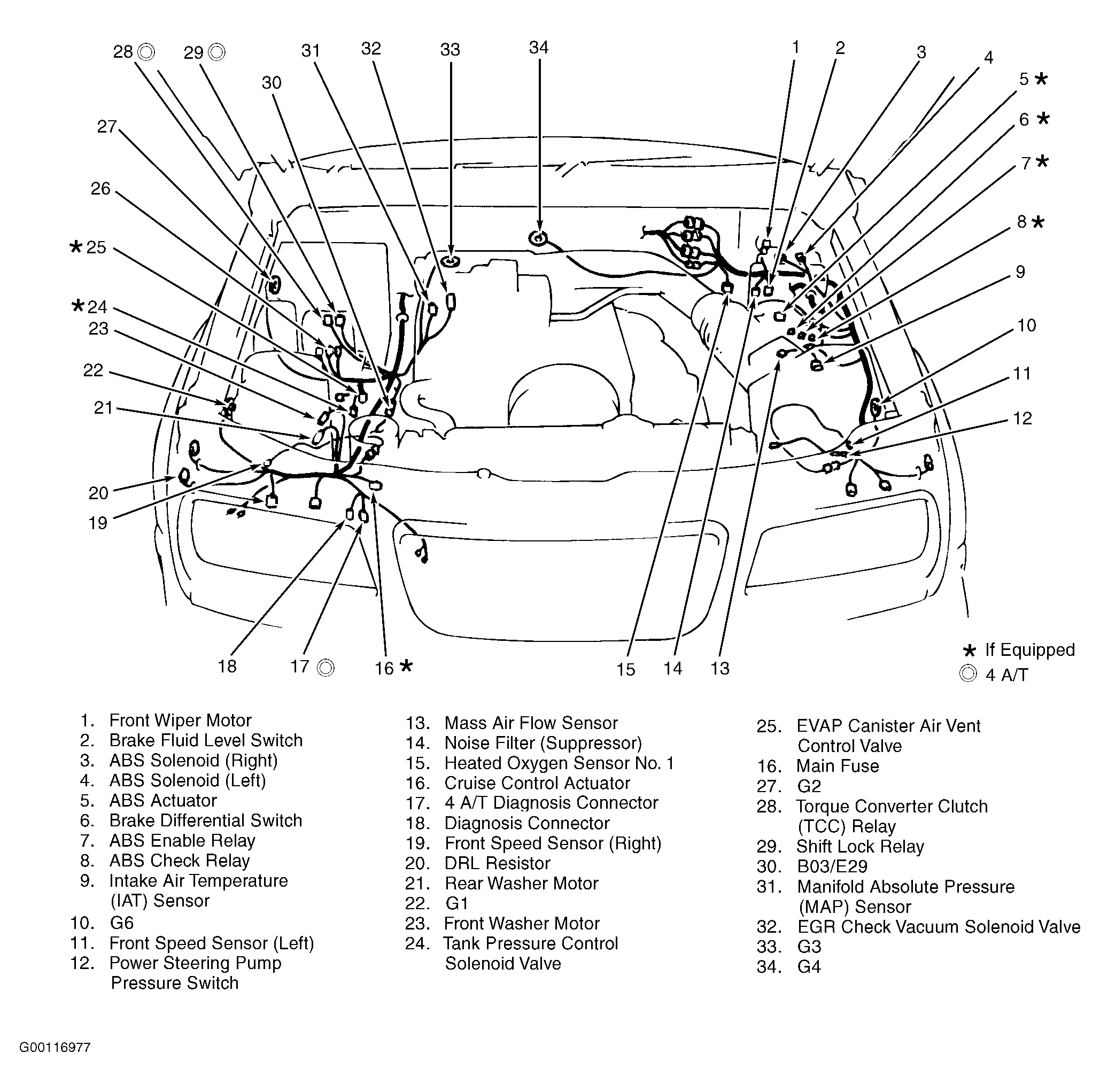

Main Fuse On engine room fuse block, in front of battery. See Figure .
