Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine Compartment
G00116977
Fig 2: Engine Compartment
G00116978

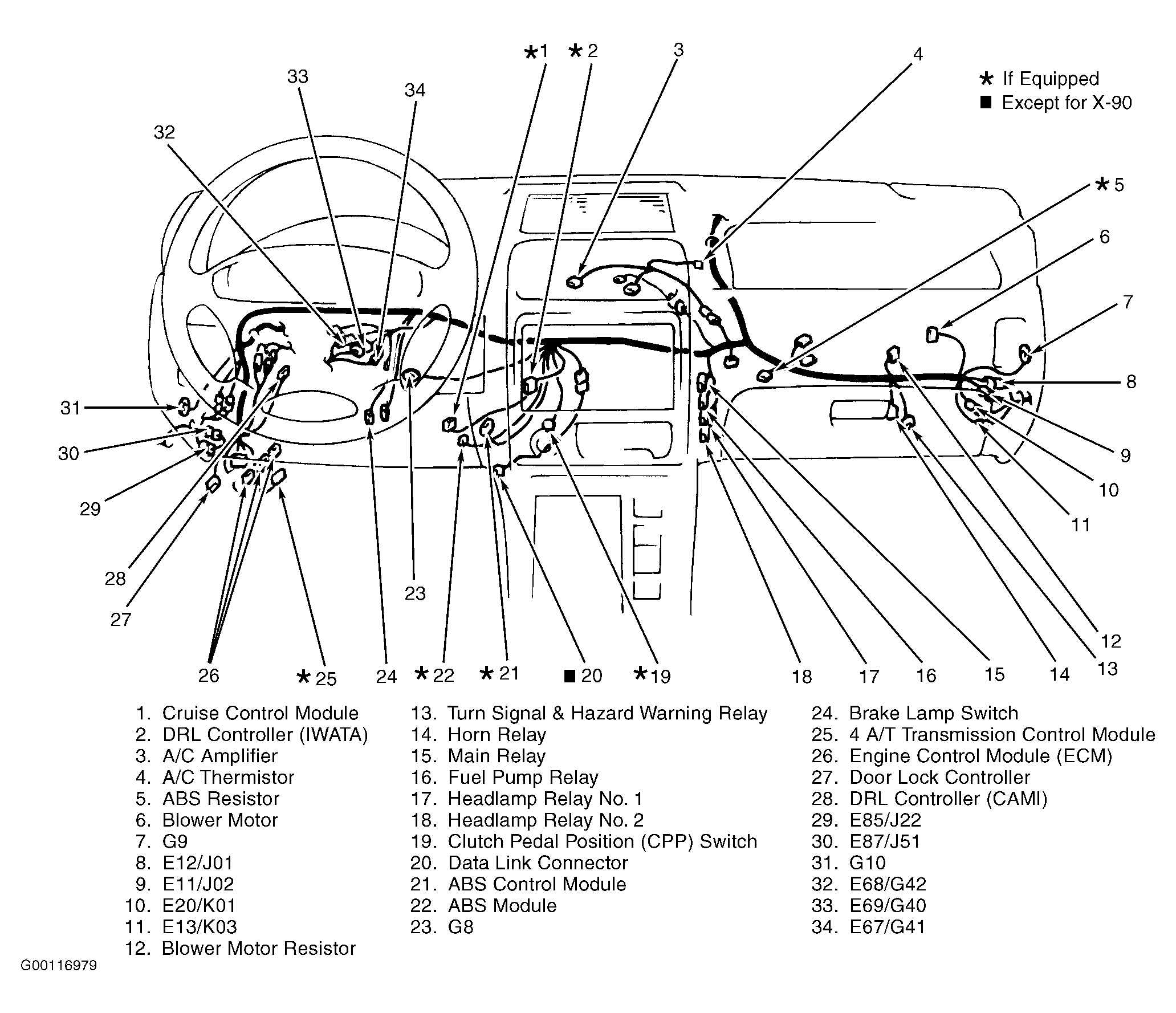

Fig 3: Dash
G00116979

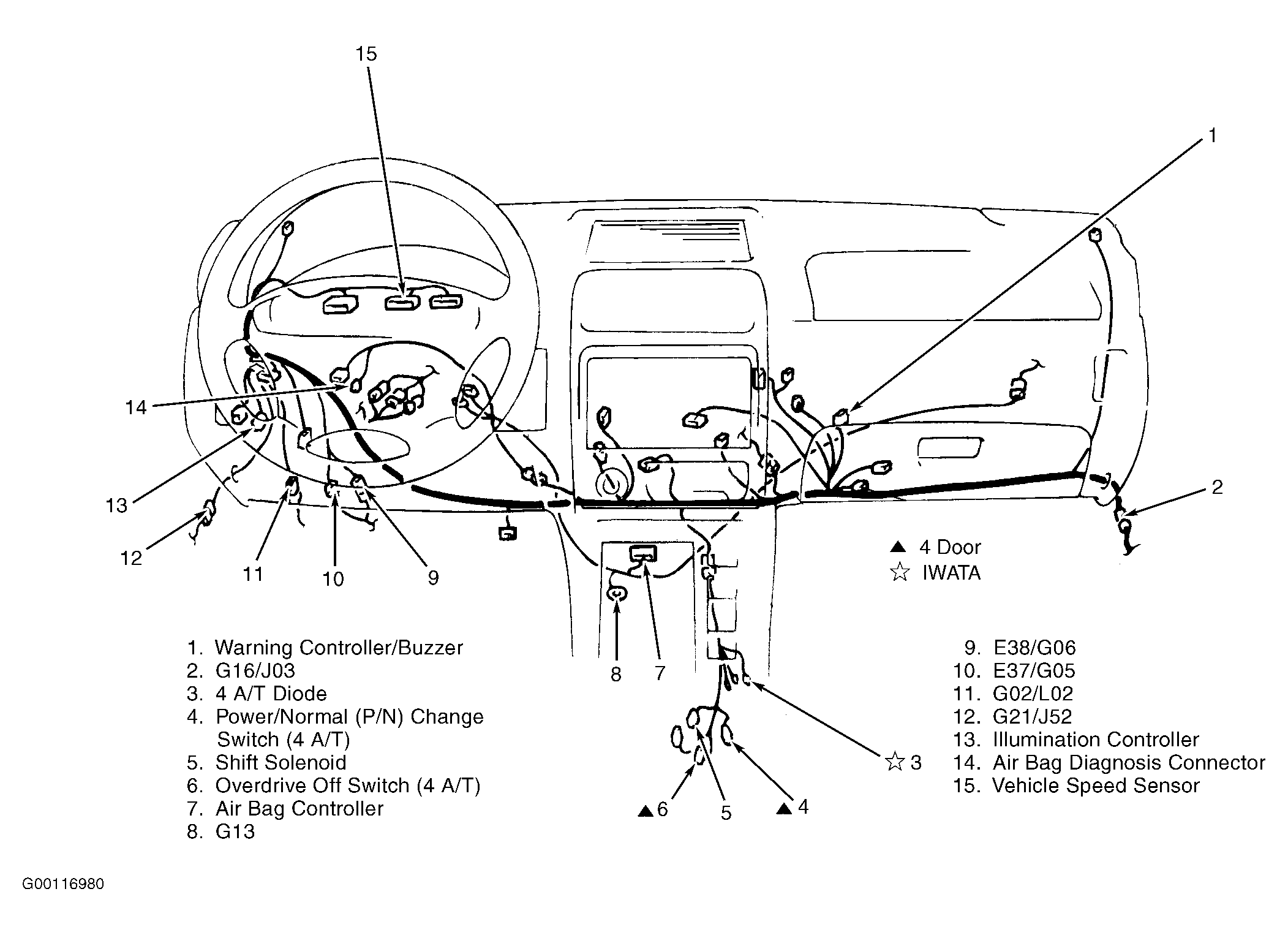

Fig 4: Dash
G00116980
