Transfer Case: Notes

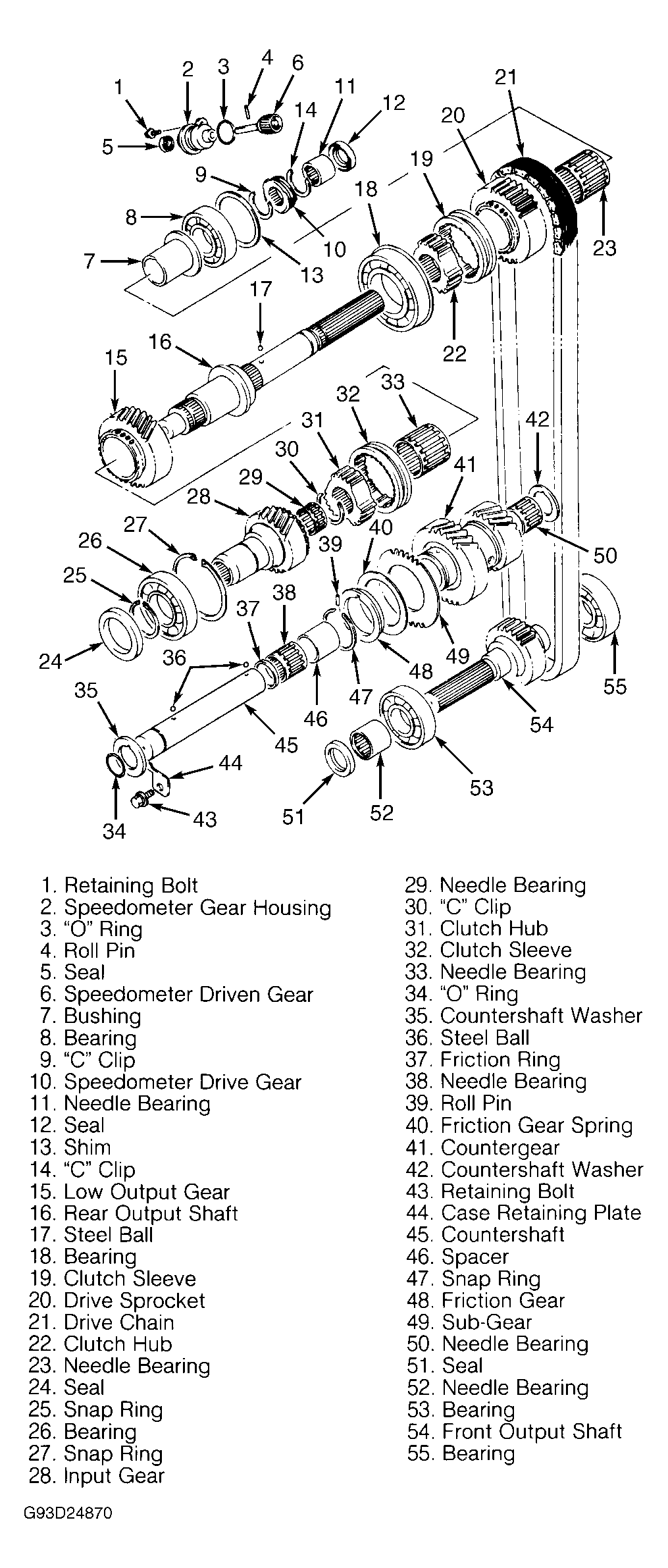

NOTE: Use illustration to identify transfer case internal components. See Figure .
