IGNITOR (Power Unit): Swift
- Turn ignition on. Using a voltmeter, check for battery voltage at ignition coil between coil positive terminal (Black/White wire) and ground. If battery voltage does not exist, check ignition fuse circuit.

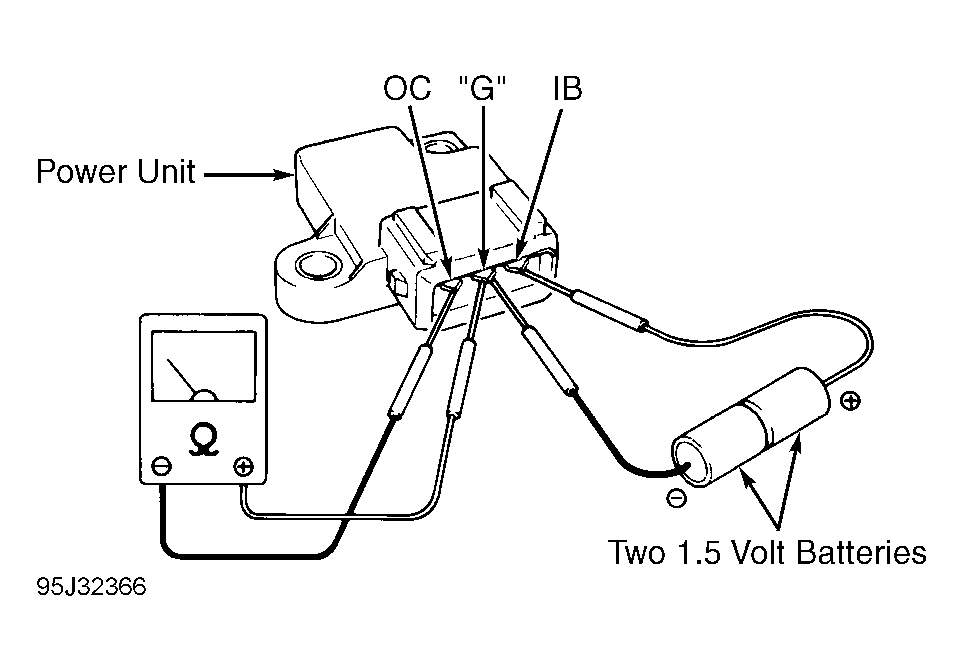

- To test ignitor, turn ignition off. Remove ignitor from its bracket. Connect two 1.5-volt batteries in series (3 volts). Connect a jumper wire from ignitor terminal "G" to negative side of batteries. Connect another jumper wire from ignitor terminal IB to positive side of batteries. See Fig 1
.
- Using an ohmmeter, connect positive lead to ignitor terminal "G" and negative lead to ignitor terminal OC. See Fig 1
. Check for continuity with voltage from batteries applied. Continuity should not exist with batteries disconnected from ignitor. Replace ignitor if continuity is not as specified.
Courtesy of SUZUKI OF AMERICA CORP.
