Control Module: Service and Repair

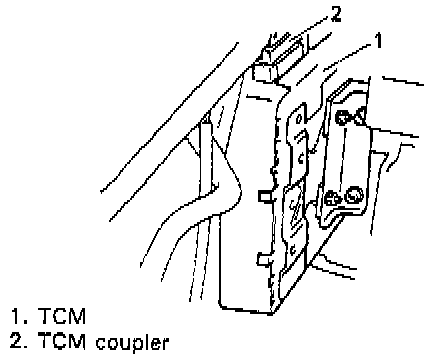

REMOVAL
1. Disconnect negative cable at battery.
2. Disconnect TCM couplers from TCM.
3. Remove TCM by removing its bolts.

INSTALLATION
1. Install TCM to its bracket.
2. Connect TCM couplers to TCM.
3. Connect negative cable to battery.
