Engine Controls

Check vehicle speed sensor referring to step 3 of DTC P0500 Flow Chart below. If malfunction is found, replace.

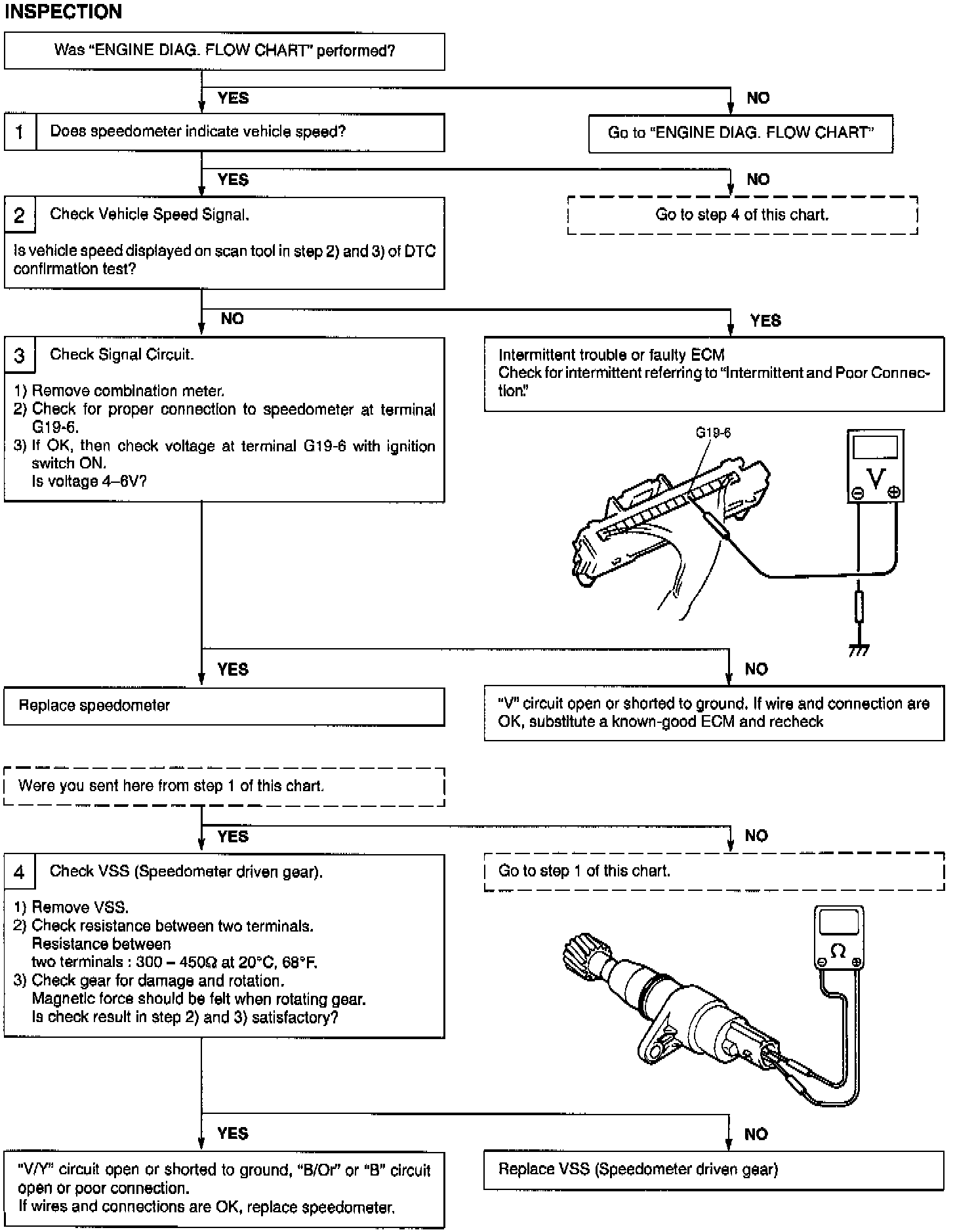

DTC P0500 Flow Chart
