Engine Basic Inspection

PART 1 OF 2:




PART 2 OF 2:




ENGINE BASIC INSPECTION
This check is very important for troubleshooting when ECM has detected no DTC and no abnormality has been found in visual inspection.

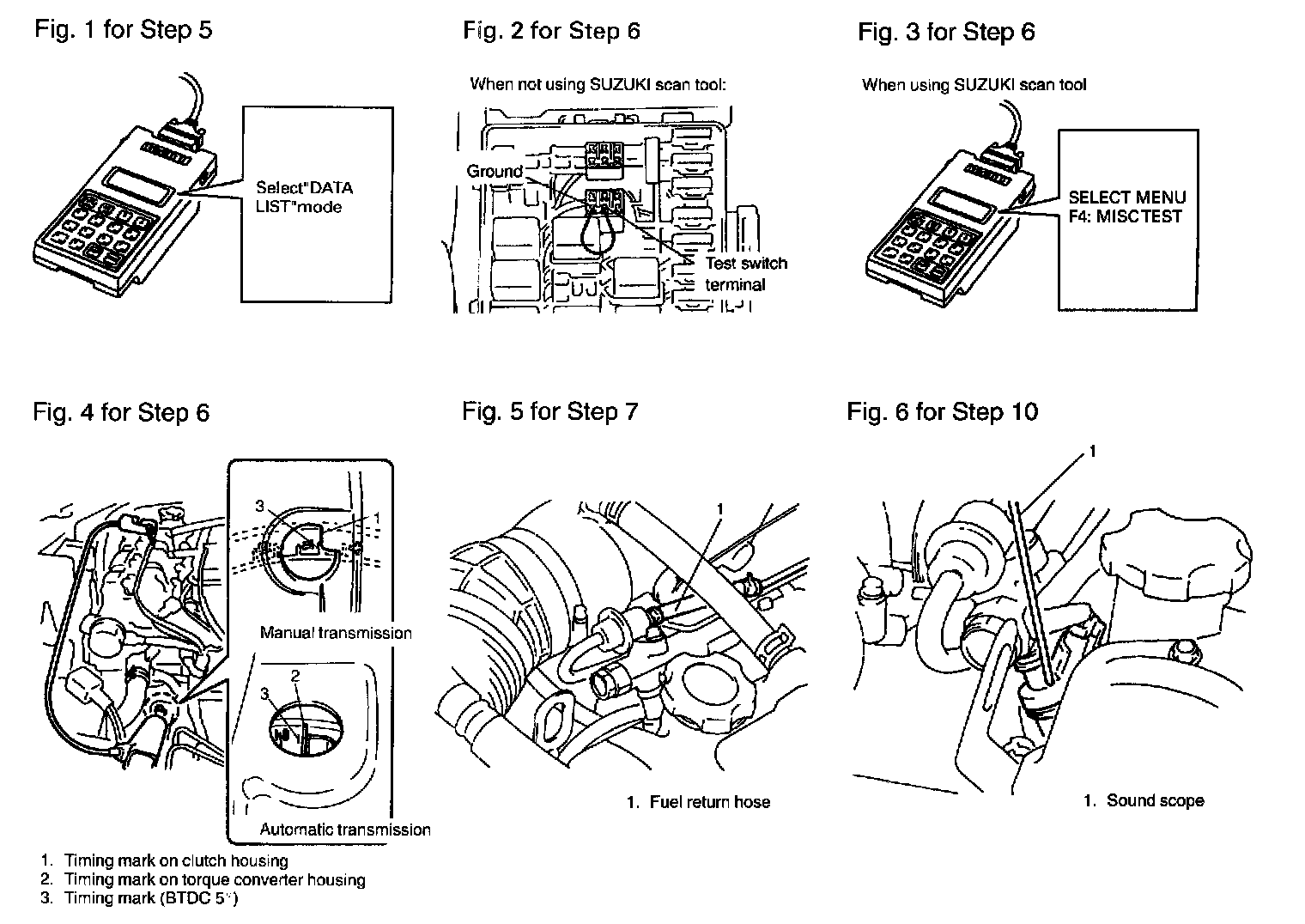

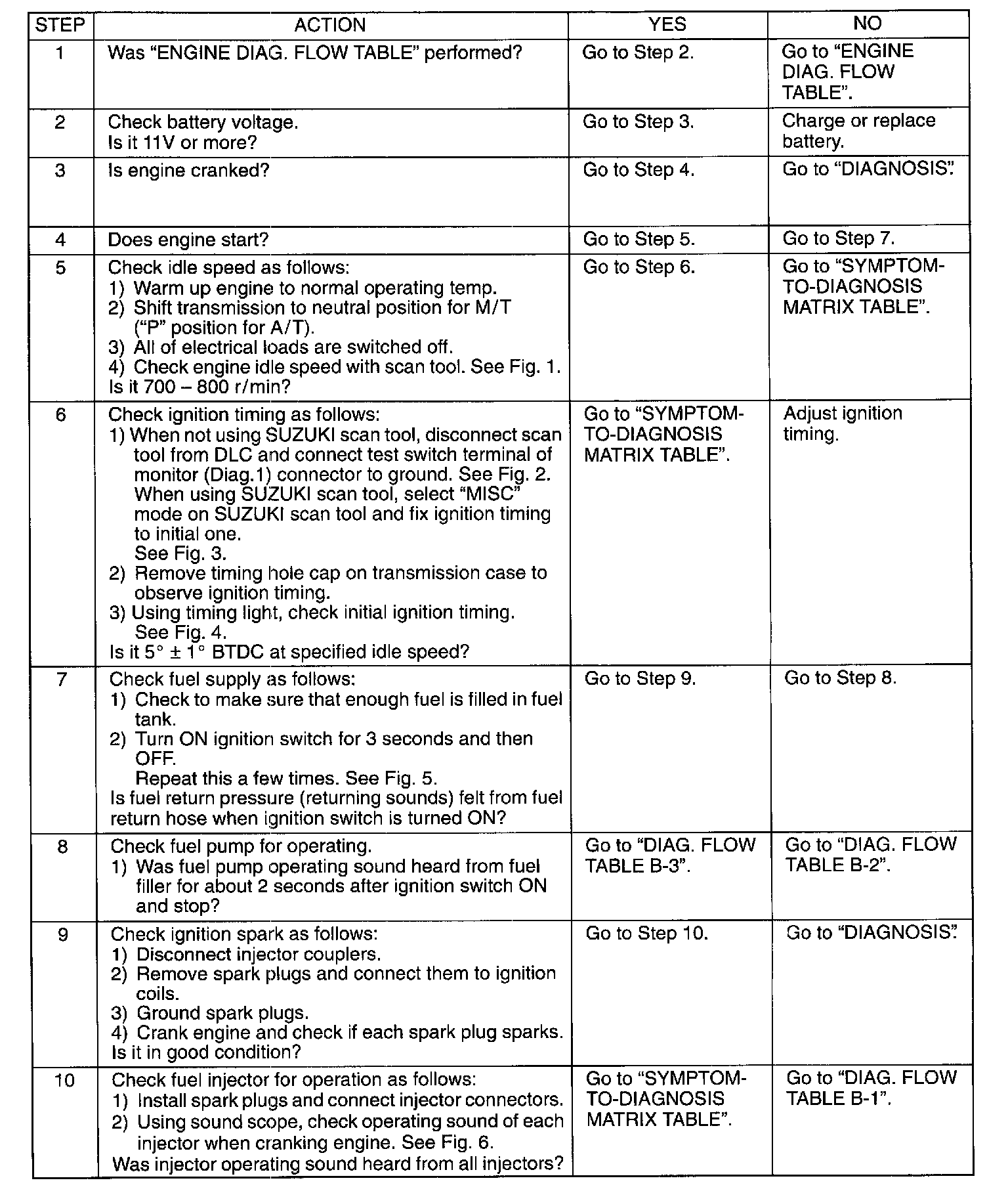

Follow the flow table carefully.
