Ignition System: Testing and Inspection

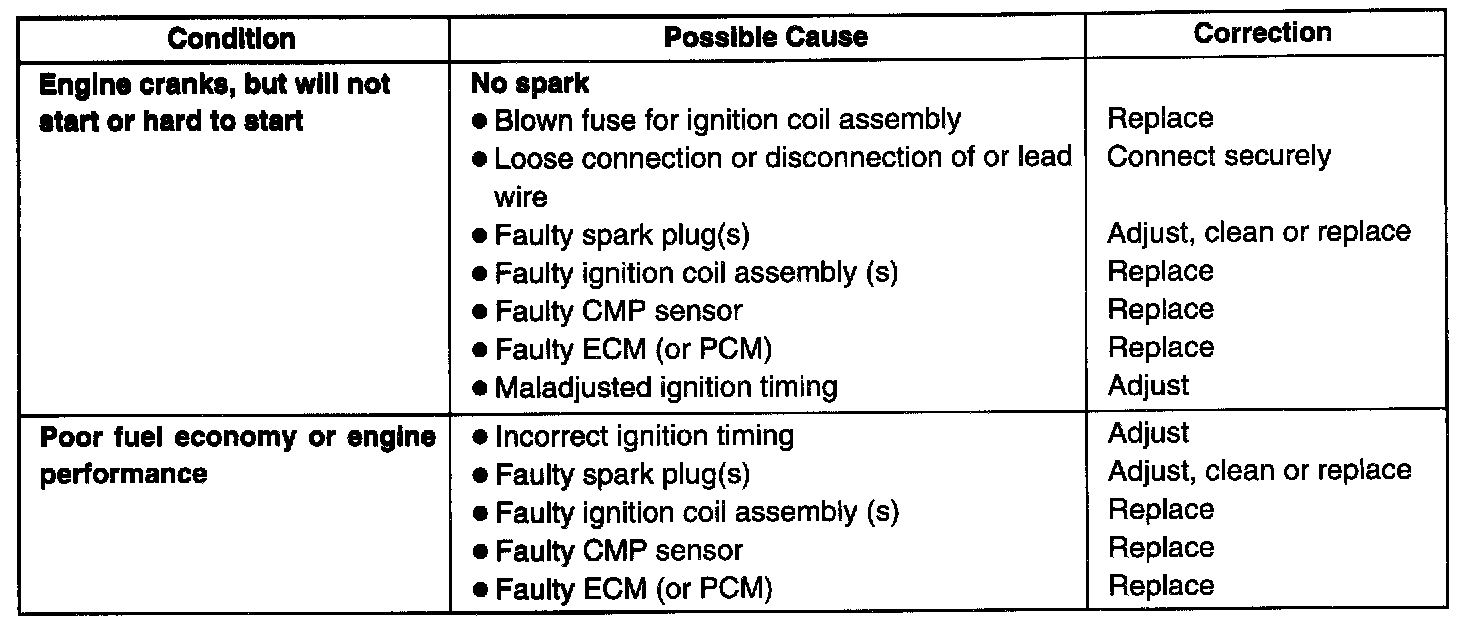

DIAGNOSIS

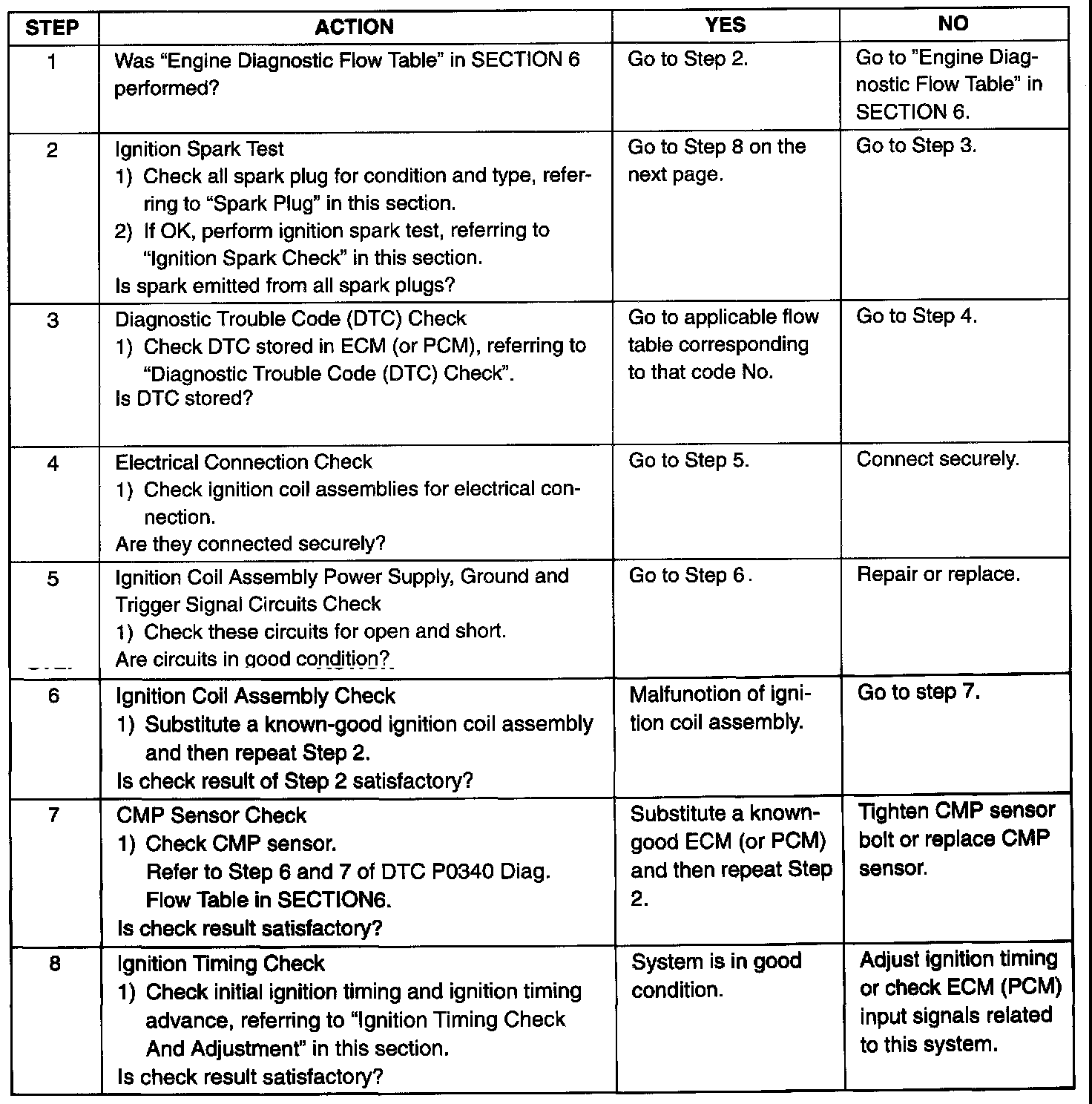

DIAGNOSTIC FLOW TABLE




Reference
Oscilloscope waveforms of CMP sensor REF signal and No.1 ignition trigger signal are as shown in figure when connecting oscilloscope between terminal C51-3-1O of ECM (PCM) connector connected to ECM (PCM) and ground, and between terminal C51 -2-13 and ground.
