How to Read the Power Supply Diagram

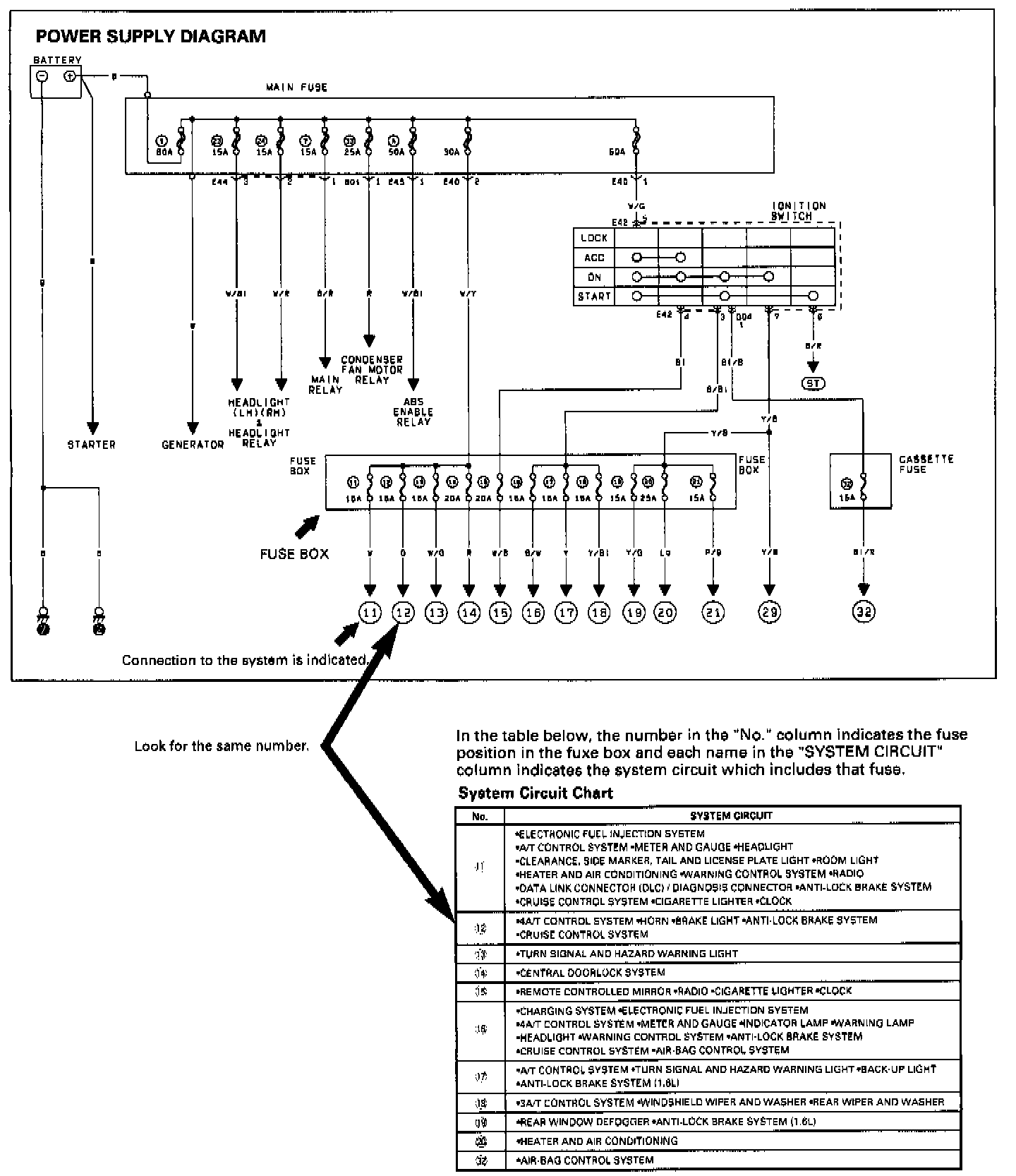

Power Supply Diagram in "POWER SUPPLY DIAGRAM" section shows the circuit from the positive terminal of the battery to each fuse in the fuse box and where each fuse is connected (each system circuit name). In addition, the electric load value of each fuse is indicated.
