Air Flow Meter/Sensor: Service and Repair

Removal

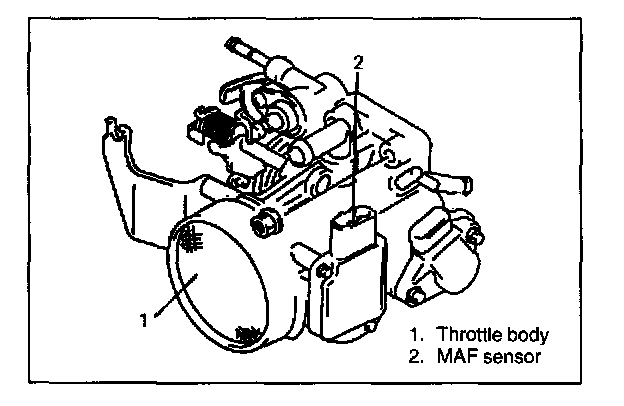

1. Disconnect negative cable at battery and coupler from MAF sensor.
2. Remove throttle body, referring to Throttle Body; Service and Repair.

NOTE: Don't remove MAF sensor.

CAUTION:
- Do not expose MAF sensor (throttle body) to any shock.
- Do not blow compressed air by using air gun or the like.
- Do not put finger or any other object into MAF sensor and keep away from net. Malfunction may occur.

Installation
1. Install throttle body, referring to Throttle Body; Service and Repair.
