Cruise Control Module: Service and Repair

CRUISE CONTROL ACTUATOR ASSEMBLY (WITH CONTROL MODULE)

CAUTION: Never disassemble cruise control actuator assembly. Disassembly will spoil its original function.




REMOVAL
1. Disconnect negative cable from battery.
2. Disconnect connector from actuator assembly (with control module).

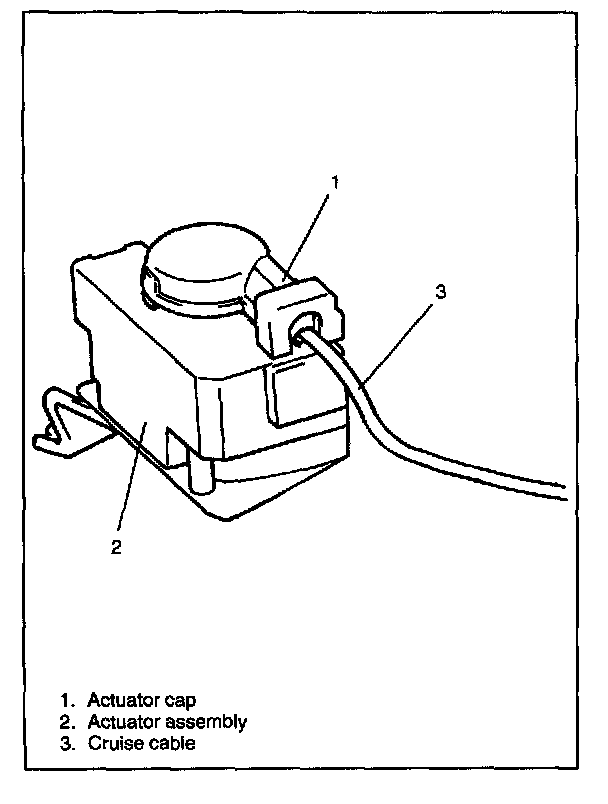

3. Remove actuator cap from actuator assembly.
4. Disconnect cruise cable from actuator assembly.
5. Remove actuator assembly from vehicle.

INSTALLATION
Install actuator assembly by reversing removal procedure, noting following point.
- Adjust cruise cable play to specification referring to "CRUISE CABLE".
