Control Module: Description and Operation

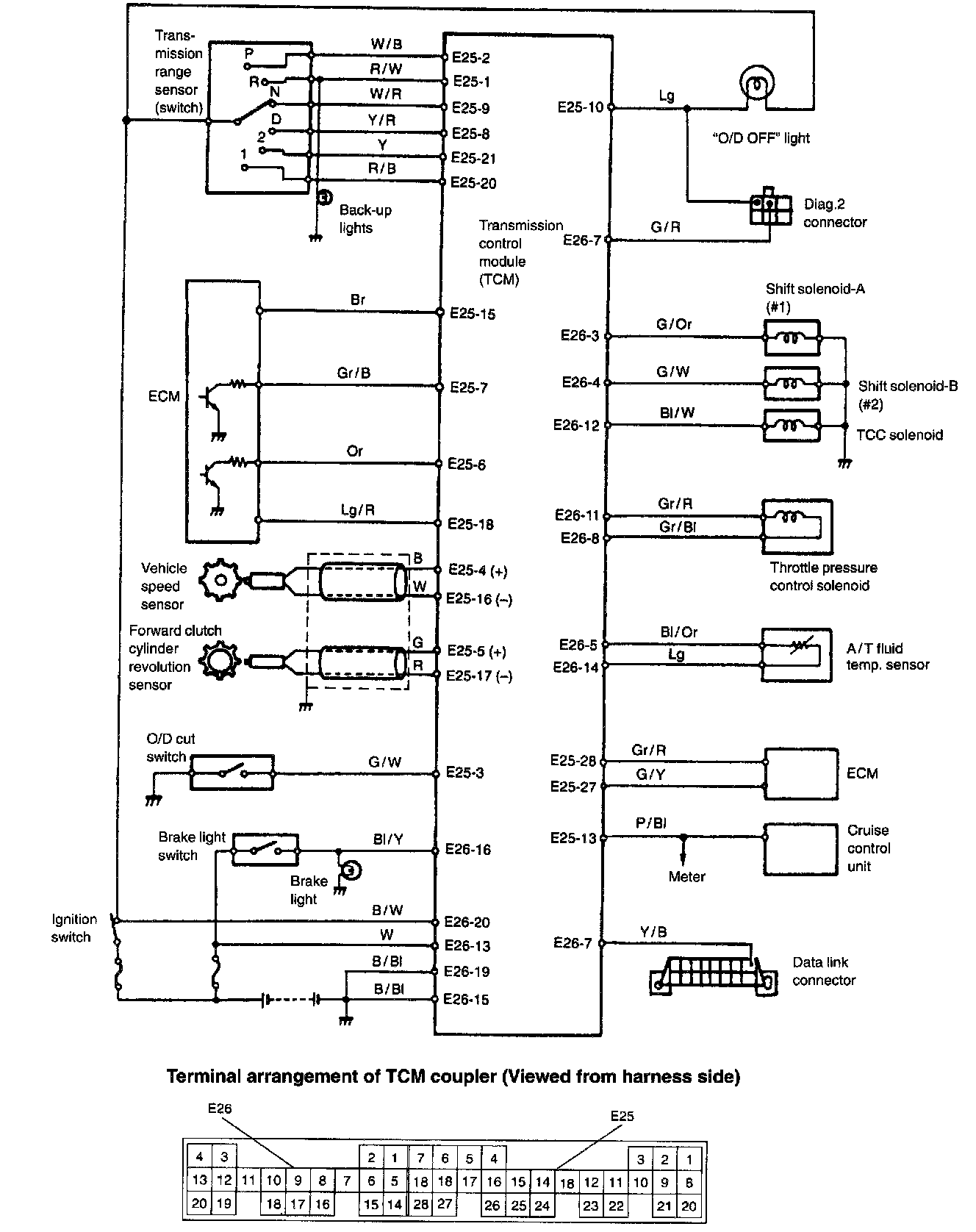

TRANSMISSION CONTROL MODULE (TCM)
The TCM controls gear shift, TCC, etc. according to the signals from each sensor. It is a microcomputer consisting of an IC, transistor, diode, etc. It is installed at the left side of the steering column.
