Select Cable
- With loosening cable end nut, shift selector lever to "N" range.

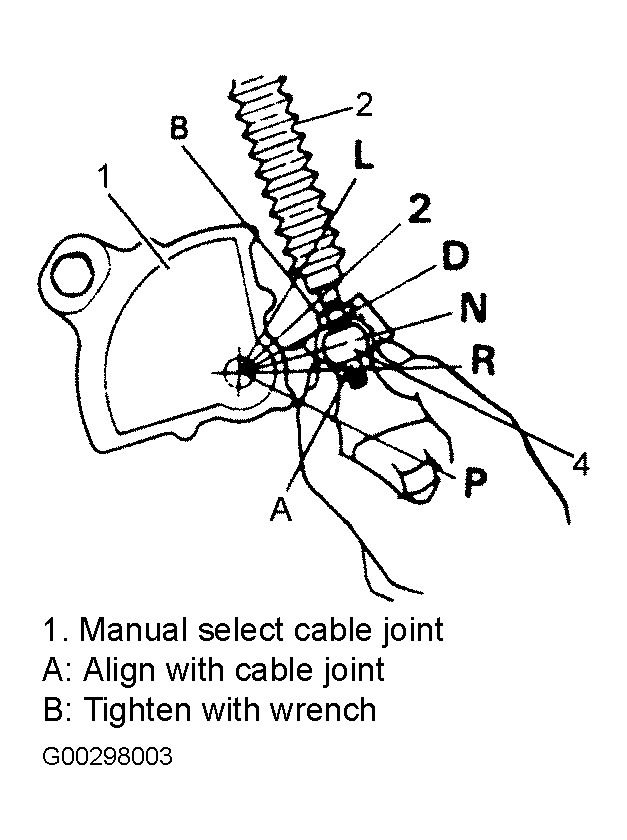

- Shift manual shift lever to "N" range. See Fig 1 .
- Turn nut "A" by hand until it contacts manual select cable joint. Tighten nut "B". After tightening nut, check for the following.
- Vehicle should not move when pushing vehicle with selector lever shifted to "P" range.
- Vehicle can not be driven in "N" range.
- Vehicle can be driven in "D", "2" and "L" ranges.
- Vehicle can be backed in "R" range.
NOTE:
Ensure that nut and cable joint have clearance.
