Steering Lock Assembly (Ignition Switch) Removal And Installation: Installation

Position oblong hole of steering shaft (2) in the center of hole in steering column assembly (1).

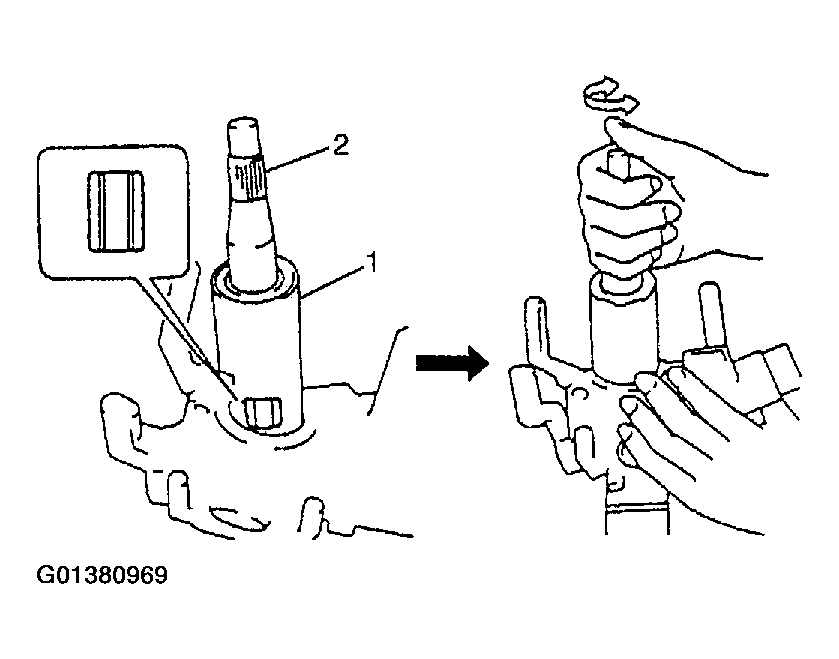

Fig 1: Positioning Oblong Hole Of Steering Shaft In Center Of Hole In Steering Column Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition key to "ACC" or "ON" position and install steering lock assembly onto column.
Now turn ignition key to "LOCK" position and pull it out.
Align hub on lock with oblong hole of steering shaft and rotate shaft to assure that steering shaft is locked.
Tighten new bolts until head of each bolt is broken off.

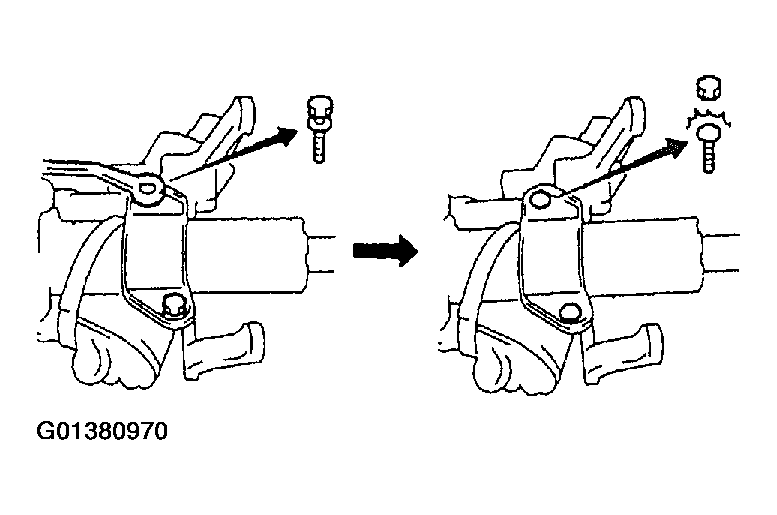

Fig 2: Tightening New Bolts Steering Lock Assembly Onto Column
Courtesy of SUZUKI OF AMERICA CORP.
Turn ignition key to "ACC" or "ON" position and check to be sure that steering shaft rotates smoothly. Also check for lock operation.
Install steering column. Refer to INSTALLATION .
