Cruise Control Module Power and Ground Circuits Check

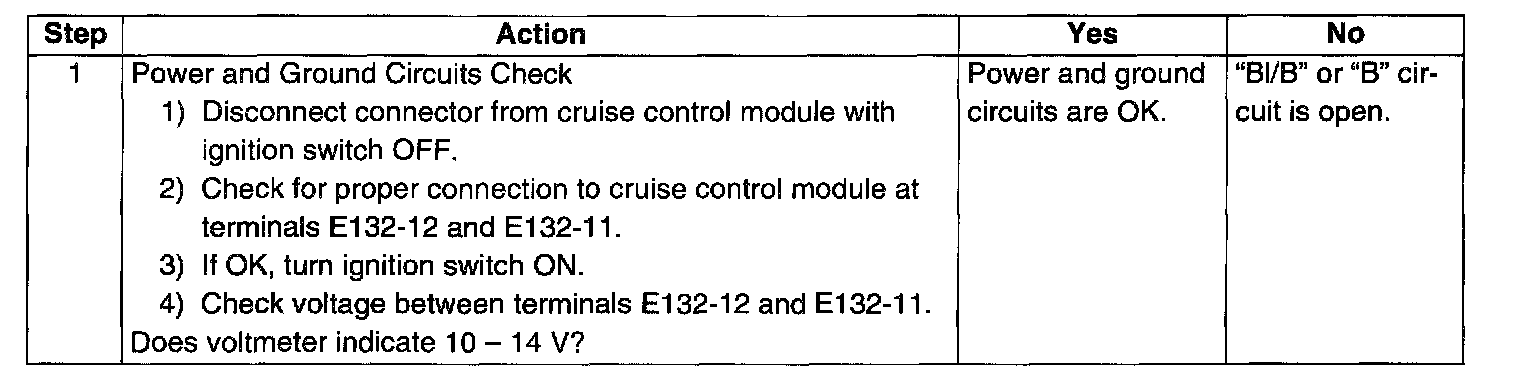

Cruise Control Module Power And Ground Circuits Check (Step 1):

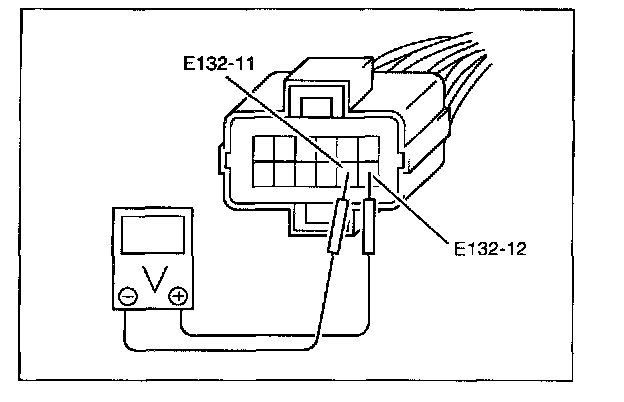

Cruise Control Module Power And Ground Circuits Check (Fig. For Step 1):
