Throttle Position Sensor: Testing and Inspection

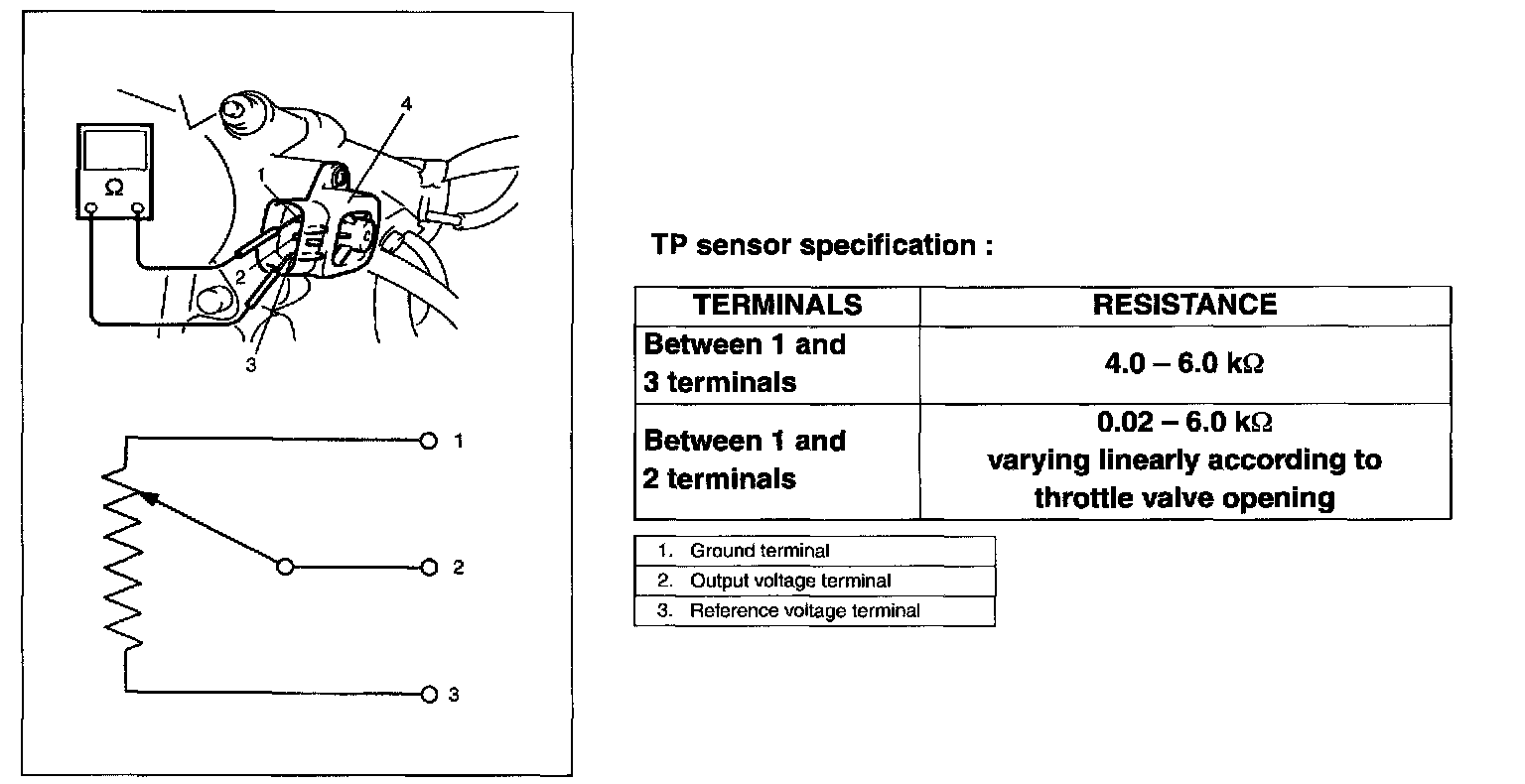

1. Disconnect negative cable (-) at battery and coupler from TP sensor (4).
2. Using ohmmeter, check resistance between terminals under each condition given in table.
If check result is not satisfactory, replace TP sensor.
3. Connect TP sensor coupler securely.
4. Connect negative cable to battery.
