Transmission Position Sensor/Switch: Testing and Inspection

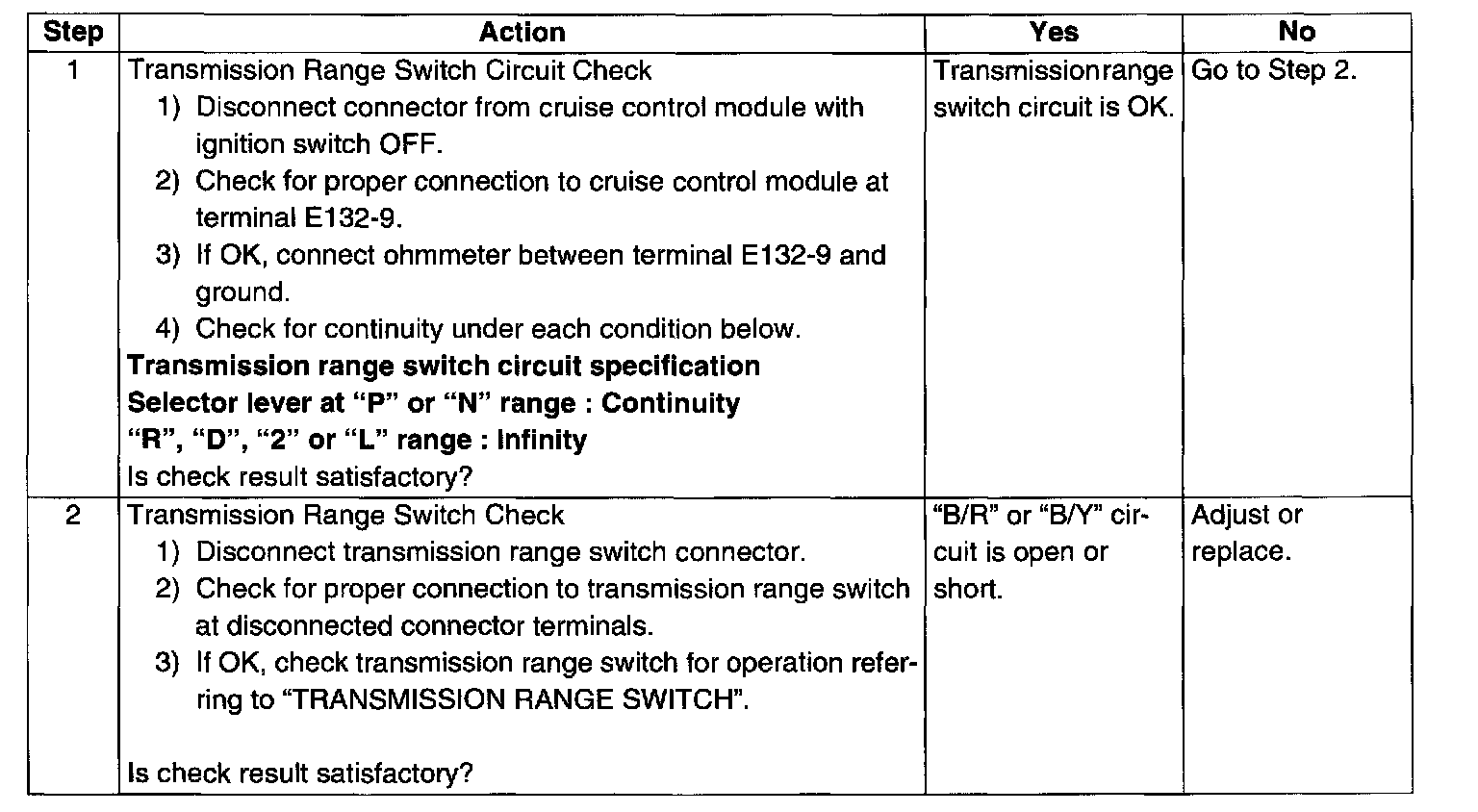

Transmission Range Switch Circuit Check (Step 1 - 2):



Transmission Range Switch Circuit Check (Fig. For Step 1):
