Transmission Position Sensor/Switch: Testing and Inspection

Inspection
1. Disconnect transmission range sensor connector.

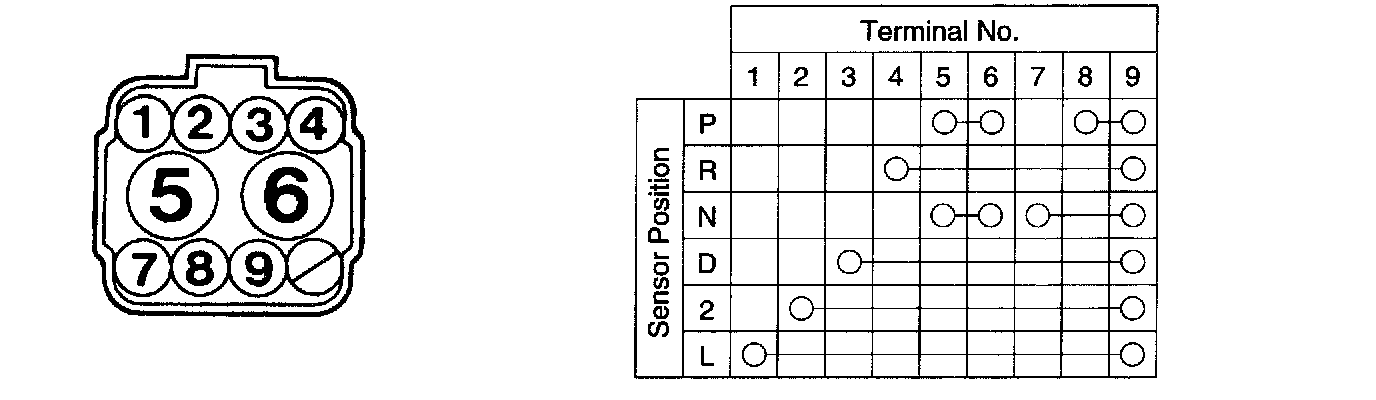

2. Check that continuity exists at terminals shown in the following figure by moving selector lever.
