How to Read Connector Codes and Terminal Nos.

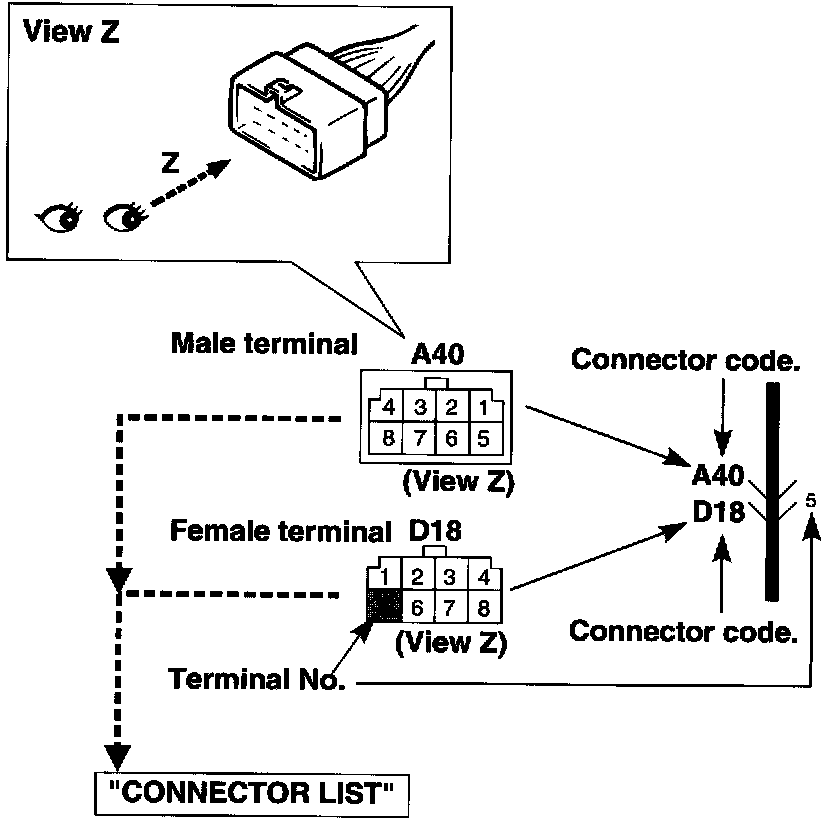

1. Connector code/Terminal No./Terminal layout
- The connector shape and terminal layout shown are those when viewed from "Z" in the illustration. Refer to "List of Connectors:".




2. Connector type

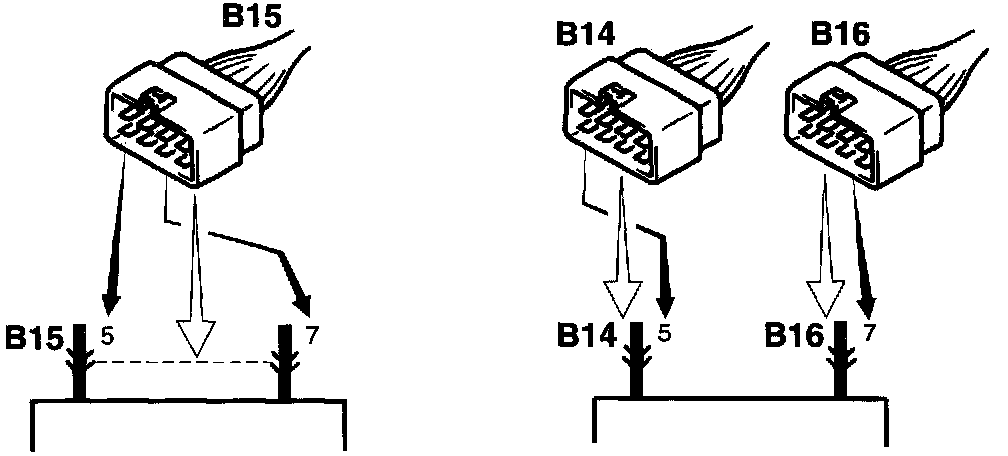

3. Terminals in one connector (Broken line) (B15)/Terminals in different connectors (B14,B16)

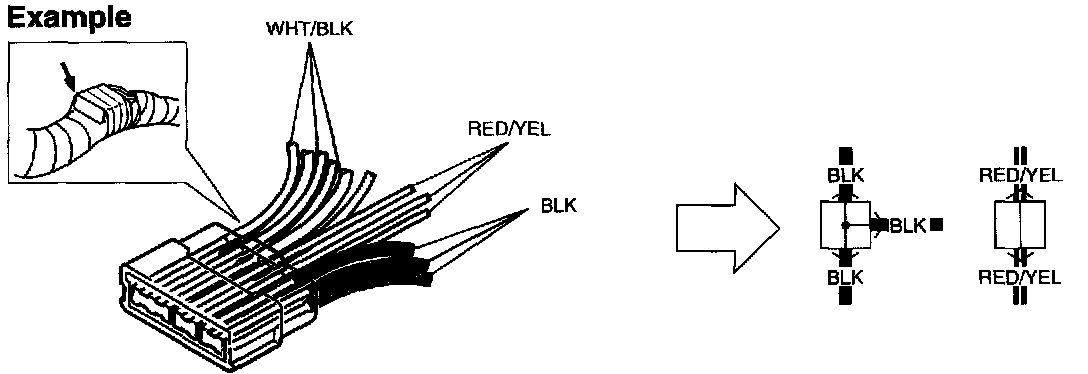

4. Joint connector (J/C)
- The joint connector (J/C) connects several different wires with the same wire color at one place instead of connecting them by welding or caulking one by one. It is not an ordinary connector but a part of the continuous wire in the harness.

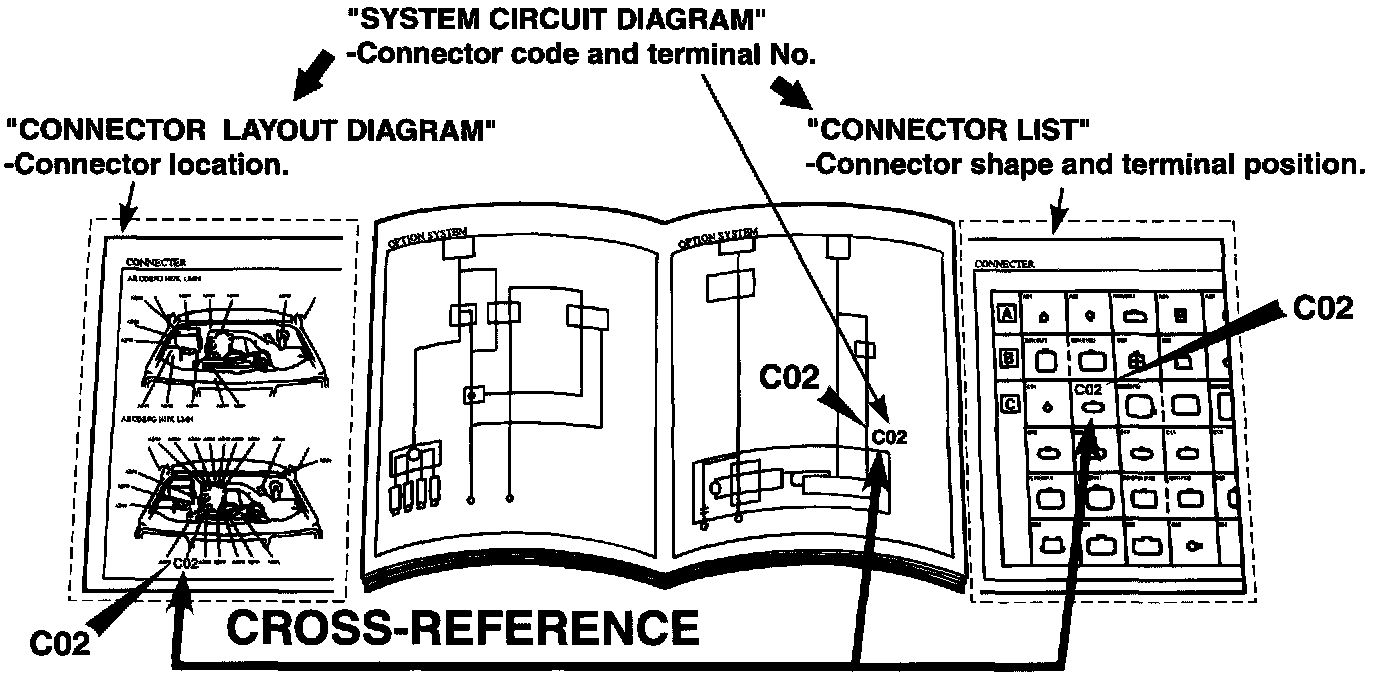

5. Connector location, shape and terminal No.
Refer to "Connector Layout Diagram:".
Refer to "System Circuit Diagram:".
Refer to "List of Connectors:".
