Engine Control Module (Powertrain Control Module) Location

ECM (PCM) is located under instrument panel, behind glove box. See Fig 1 .

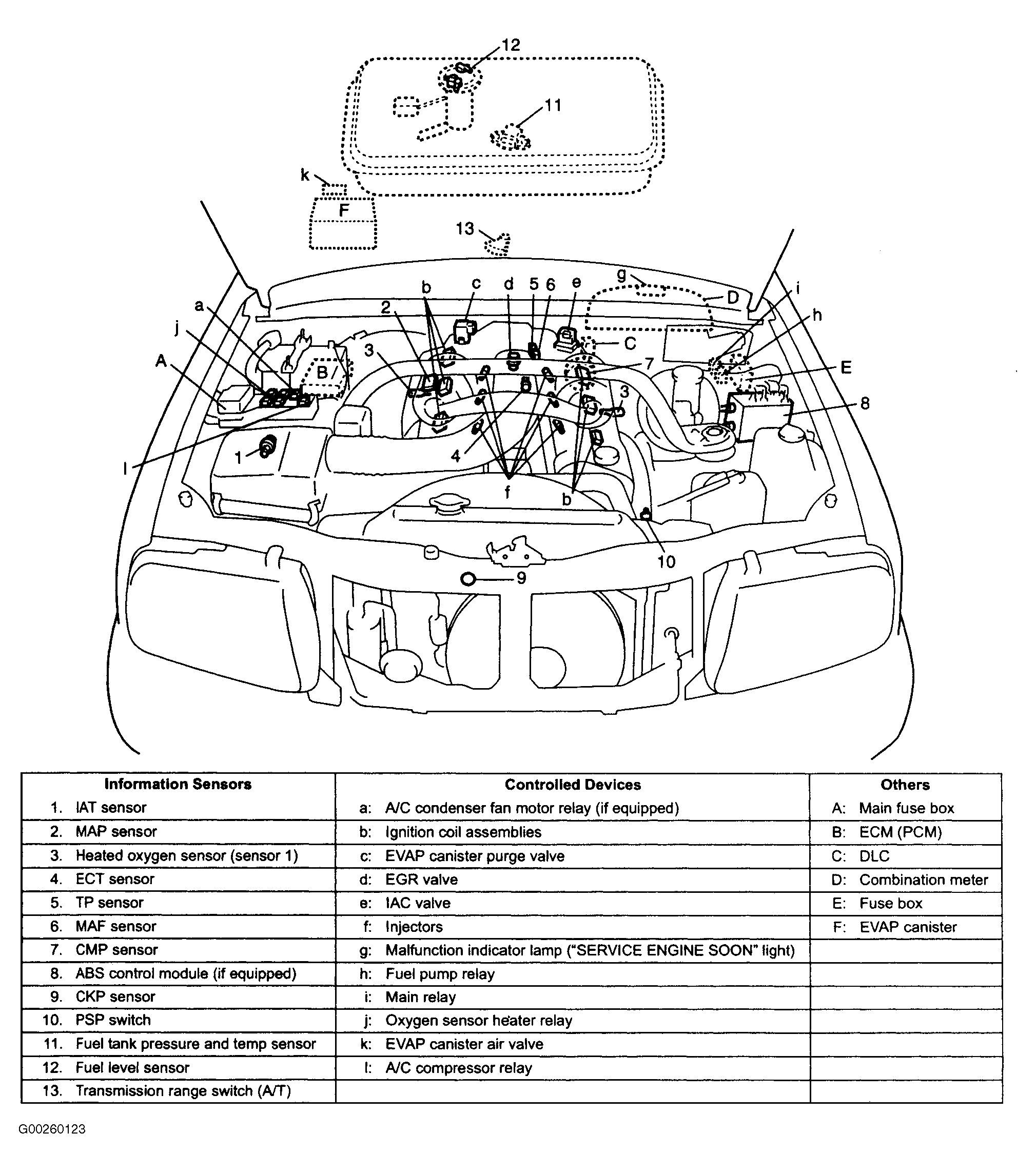

Fig 1: Locating Engine Control System Components

Courtesy of SUZUKI OF AMERICA CORP.
