With Cruise Control Module

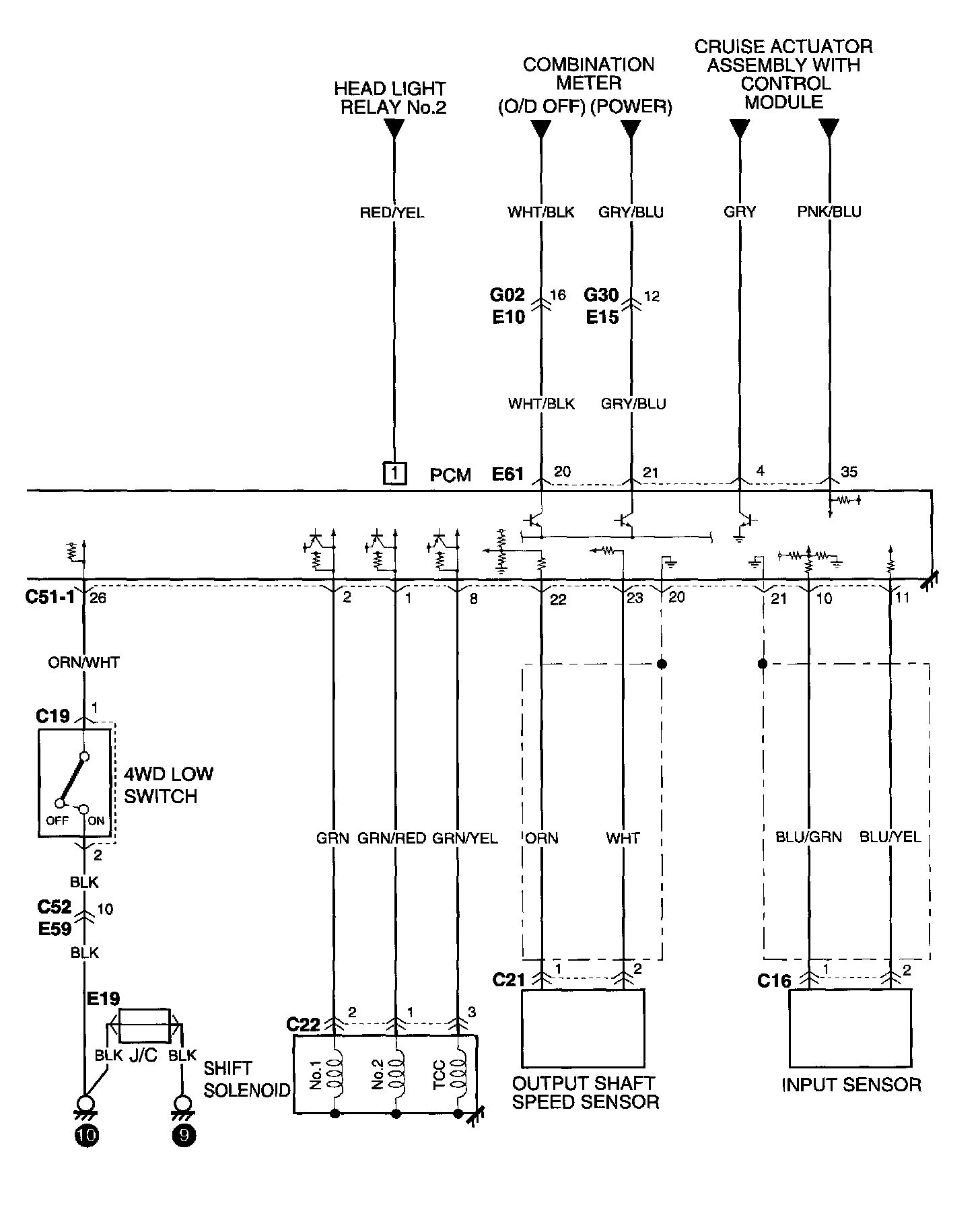

Vehicle With Cruise Control Module Part 1:

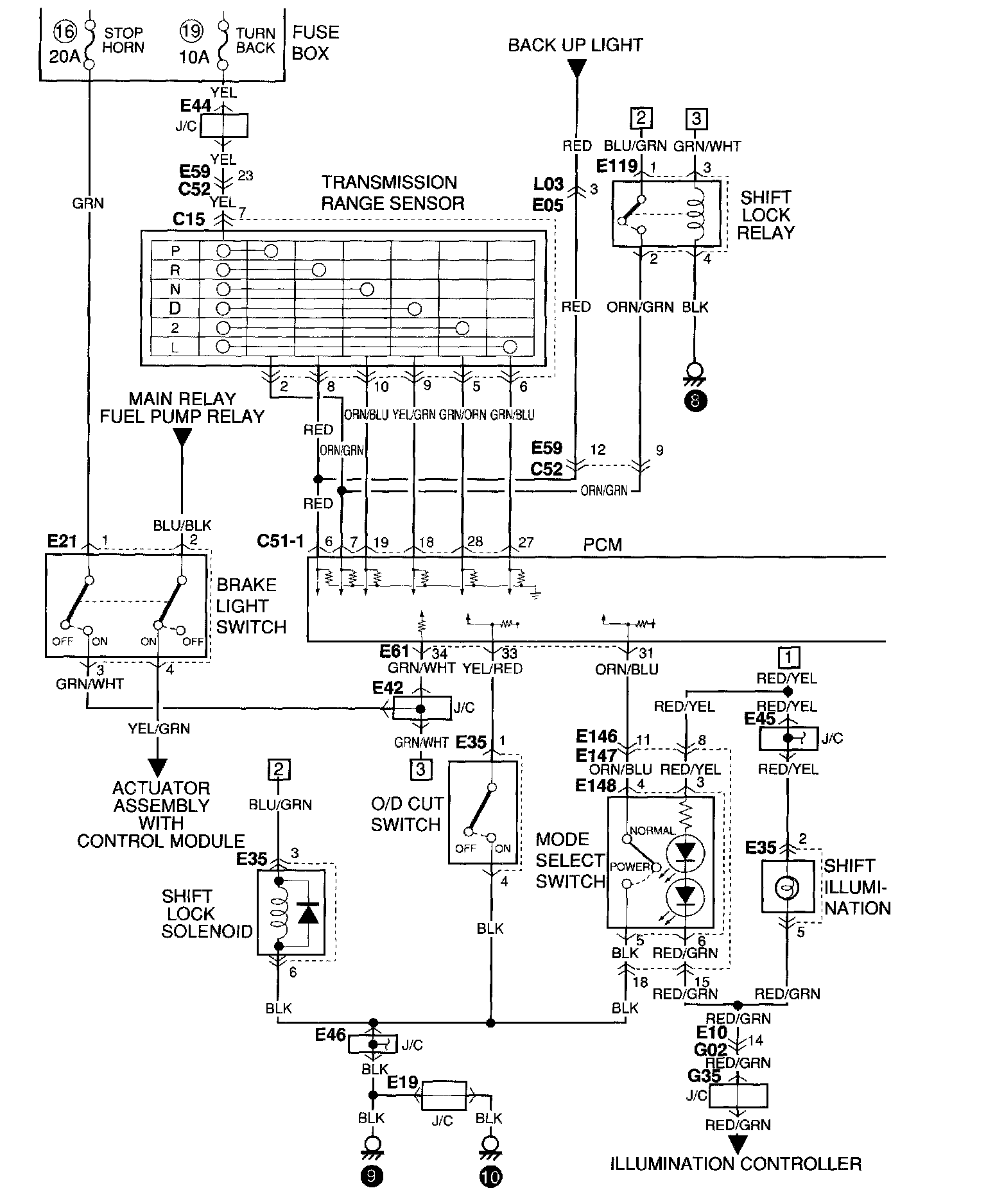

Vehicle With Cruise Control Module Part 2:
