Alternator: Service and Repair

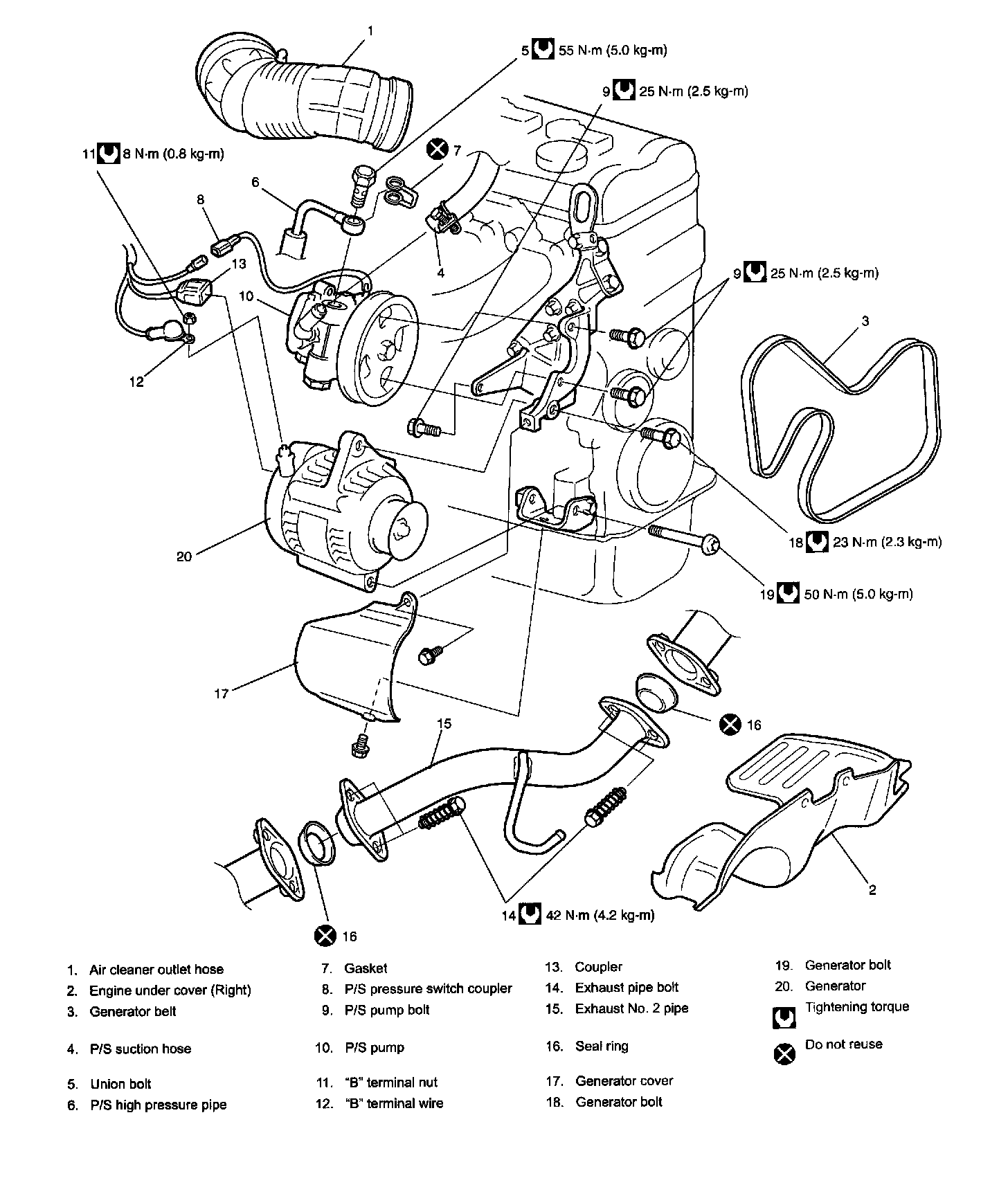

Generator Dismounting and Remounting
1. Disassemble in order shown in figure.
2. Assemble in reverse order of disassembly.
