Transmission Position Sensor/Switch: Description and Operation

Transmission range sensor (switch) (A/T only)

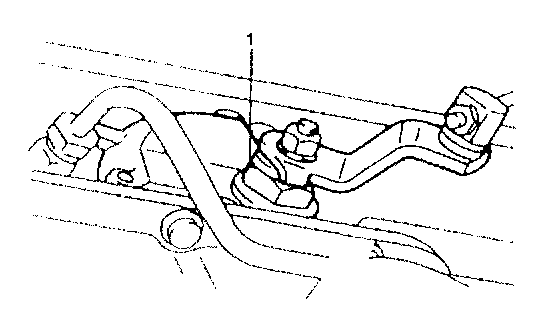

This switch (1) is installed on the automatic transmission. ECM (PCM) detects transmission range by monitoring the ON/OFF signal from this switch and uses it as one of the signals to control the fuel injectors, IAC valve, ignition timing and automatic transmission.
