System Specifications



REAR DIFFERENTIAL

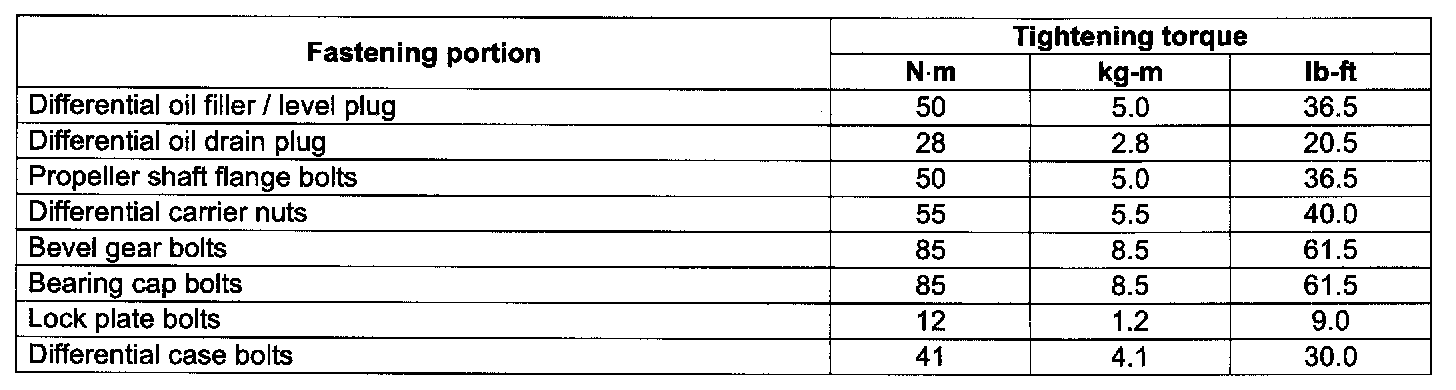

Tightening Torque Specifications

PROPELLER SHAFT

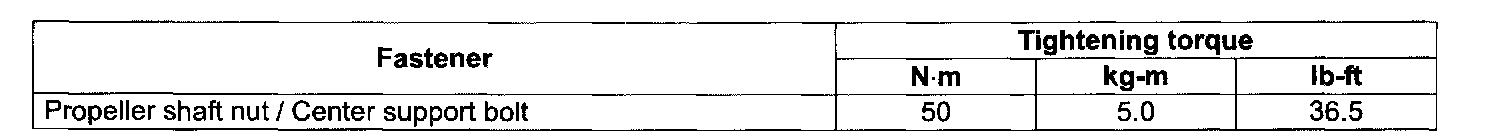

Tightening Torque Specifications

AUTOMATIC TRANSMISSION

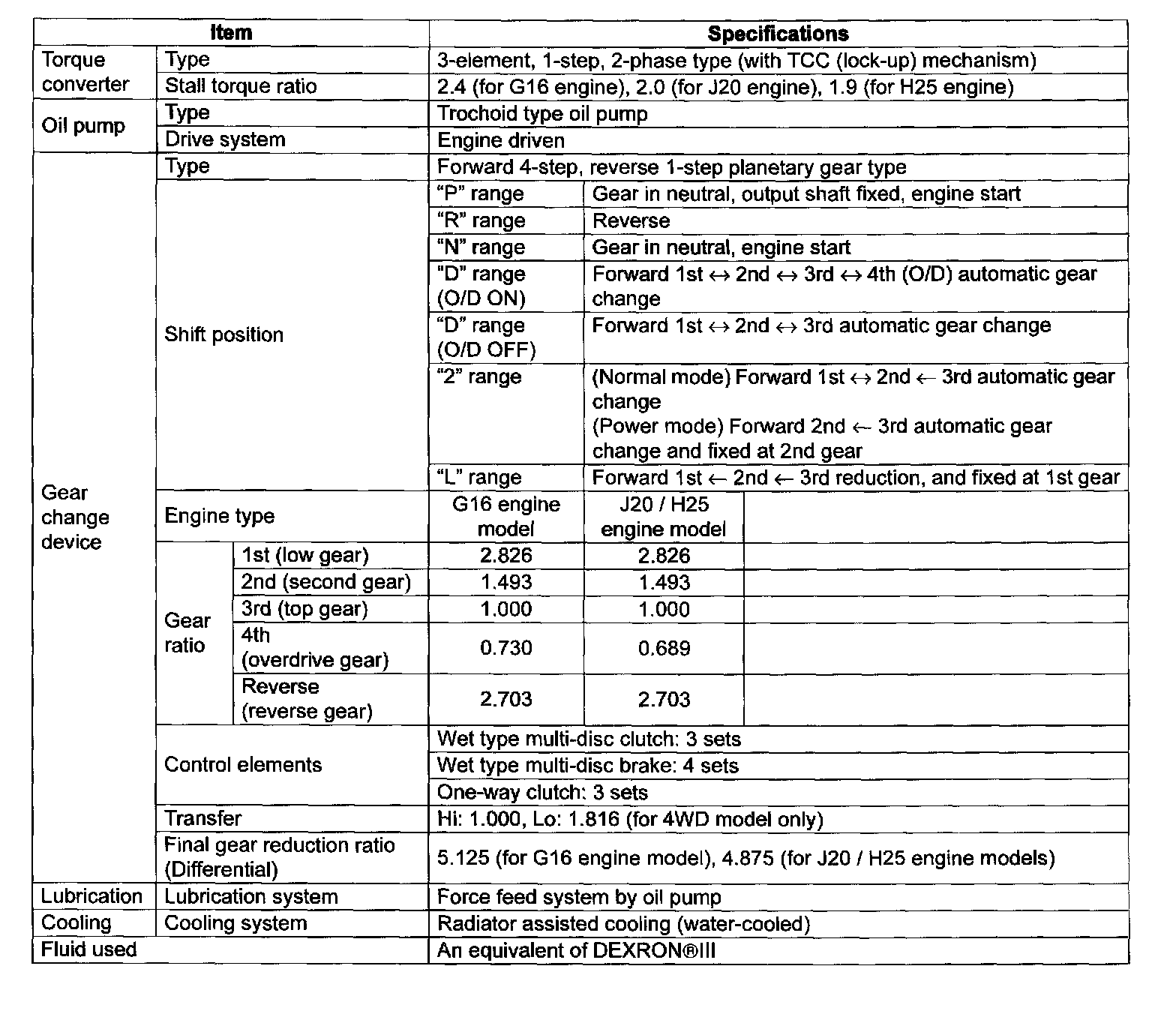

General Specifications

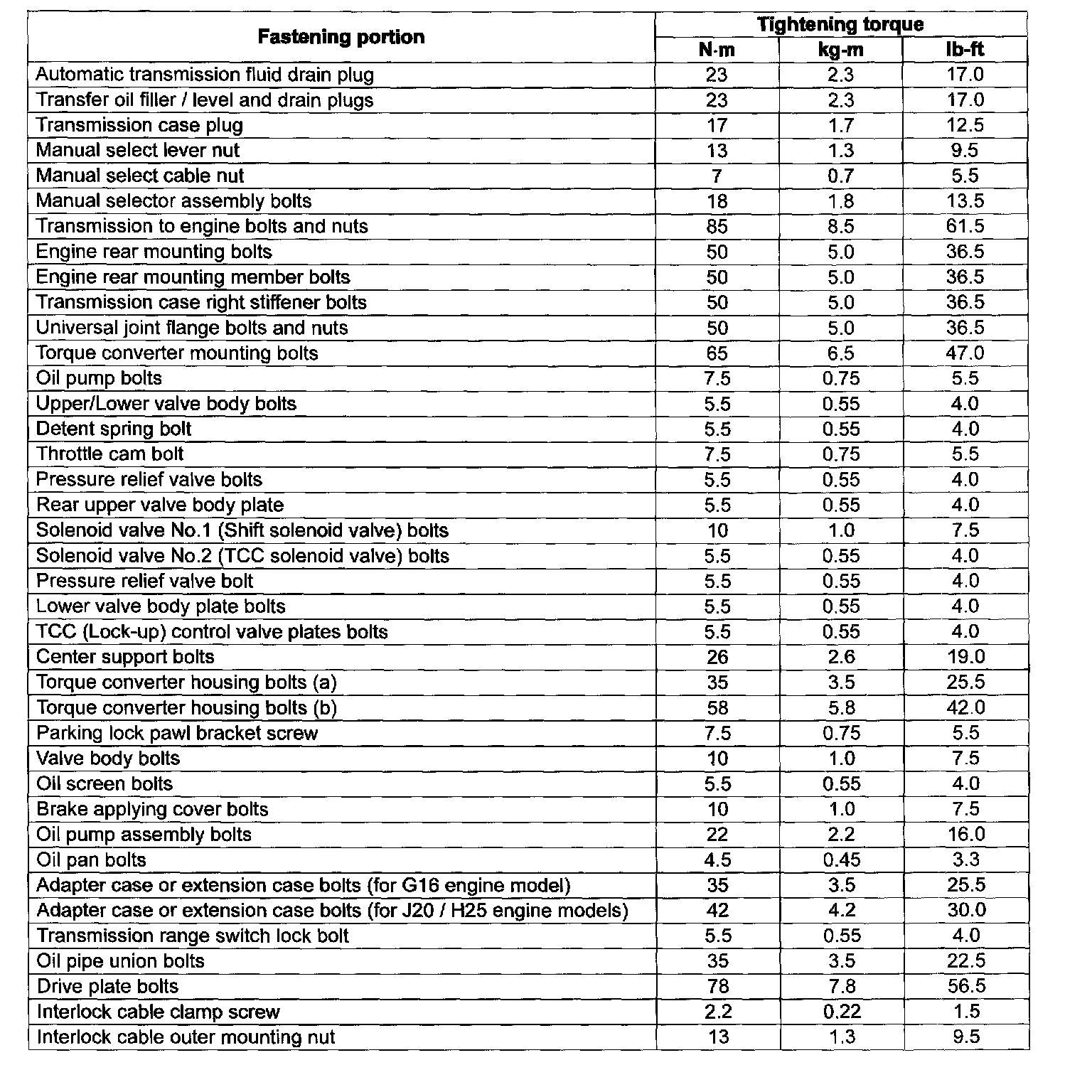

Tightening Torque Specifications

MANUAL TRANSMISSION
Type 1 - 2.0 engine

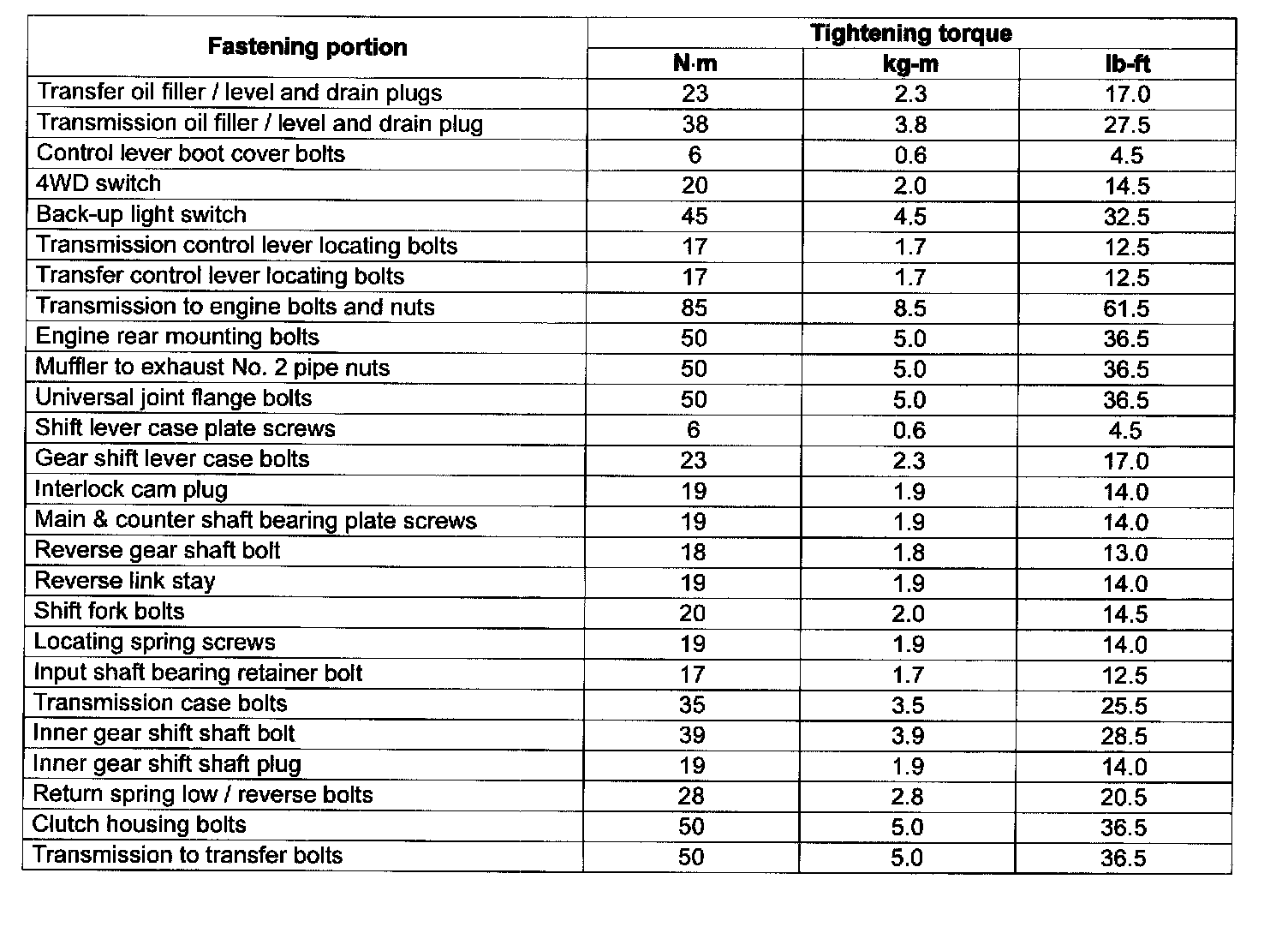

Tightening Torque Specifications

Type 2 - 2.5 engine

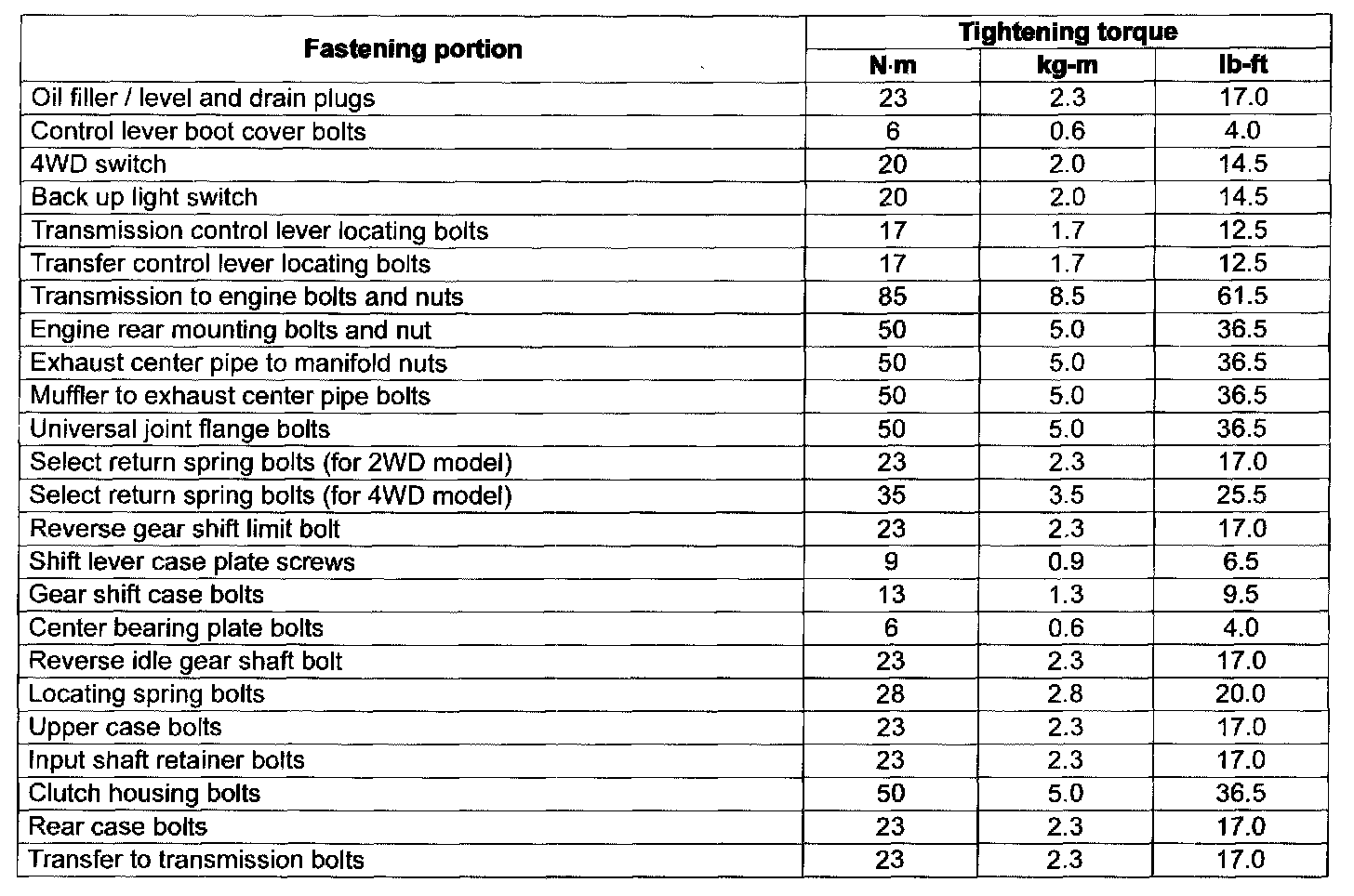

Tightening Torque Specifications

CLUTCH

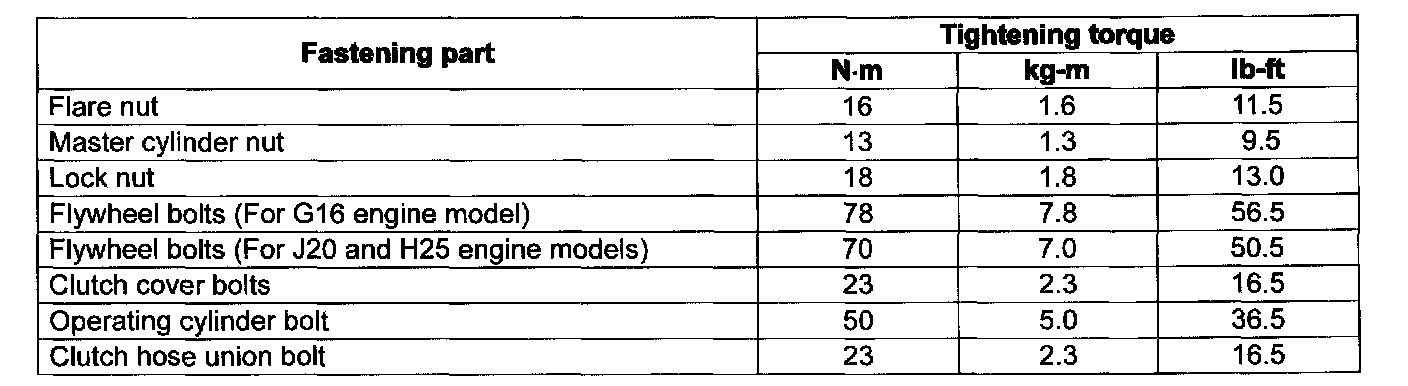

Tightening Torque Specifications
