Voltage Check

Cruise Control Module and Its Circuit Inspection

CAUTION: Cruise control module can not be checked by itself. It is strictly prohibited to connect voltmeter or ohmmeter to cruise control module with coupler disconnected from it.

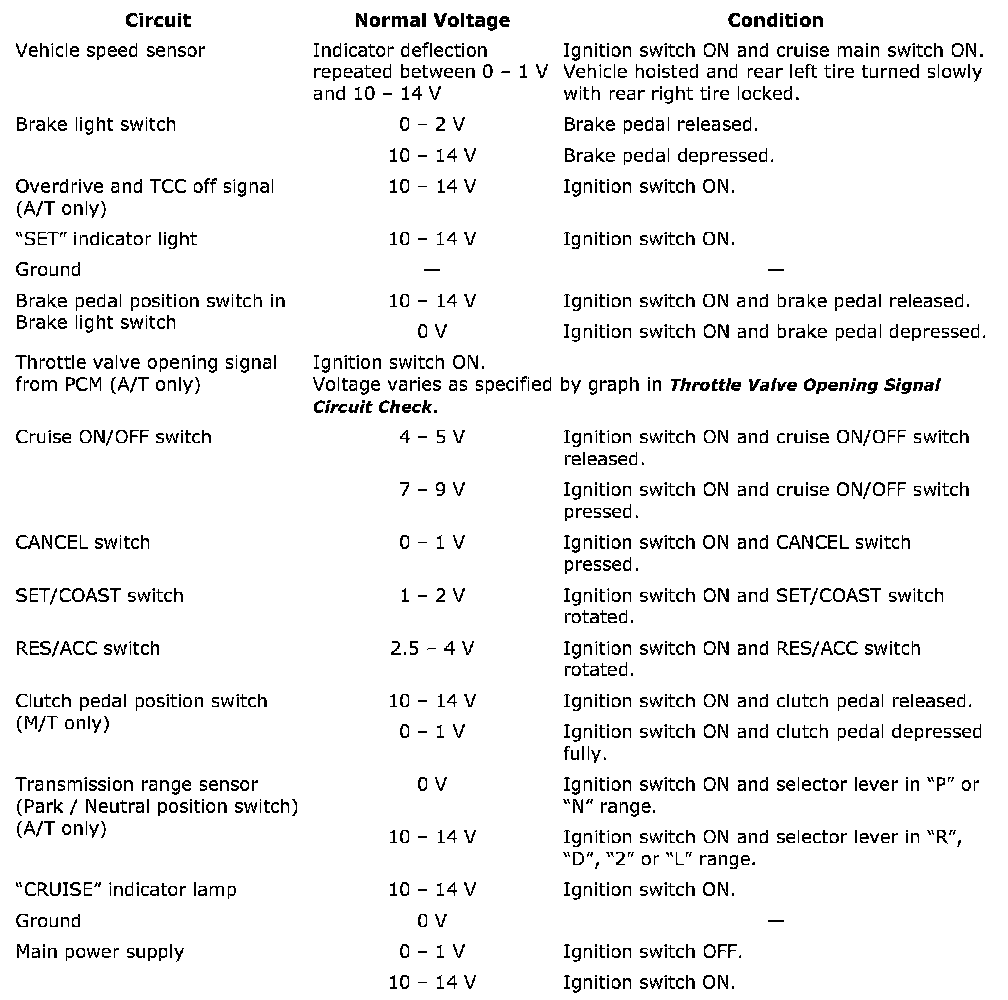

Voltage Check
Check for input or output voltage of control module (voltage between each circuit and body ground) with cruise control module connector connected.
