Throttle Position Sensor: Service and Repair

Removal
1. Disconnect battery negative cable at battery.
2. Disconnect coupler from TP sensor.
3. Remove TP sensor from throttle body.




Installation

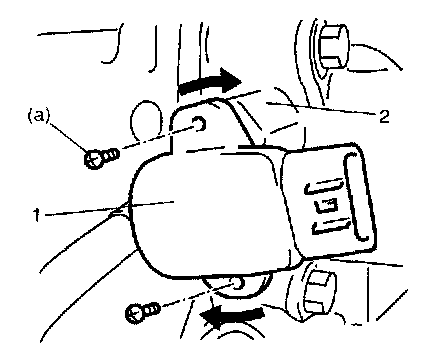

1. Install TP sensor (1) to throttle body (2).
Fit TP sensor (1) to throttle body (2) in such way that its holes are a little away from TP sensor screw holes as shown in figure and turn TP sensor (1) clockwise so that those holes align.

Tightening torque
TP sensor screw (a): 3.5 N.m (0.35 kg-m, 2.5 lb-ft)

2. Connect coupler to TP sensor (1) securely.
3. Connect battery negative cable to battery.
