Vehicle Speed Sensor: Service and Repair







Removal
1. Hoist vehicle

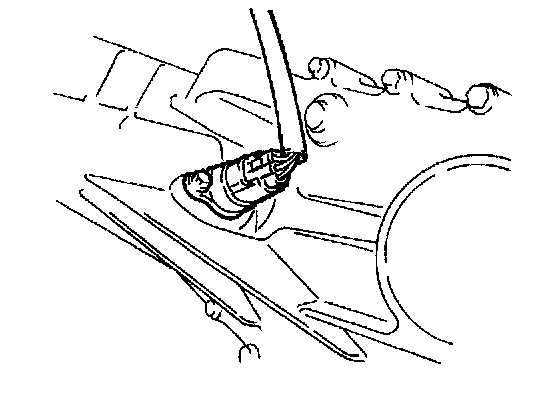

2. Disconnect coupler from VSS (1).

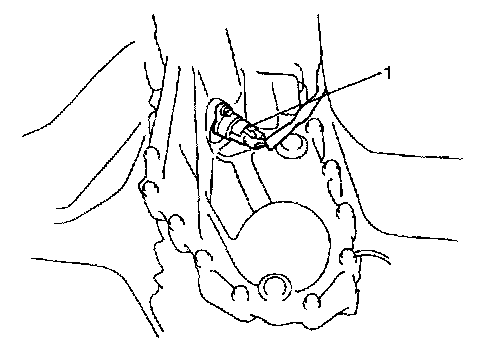

3. Remove VSS (1).

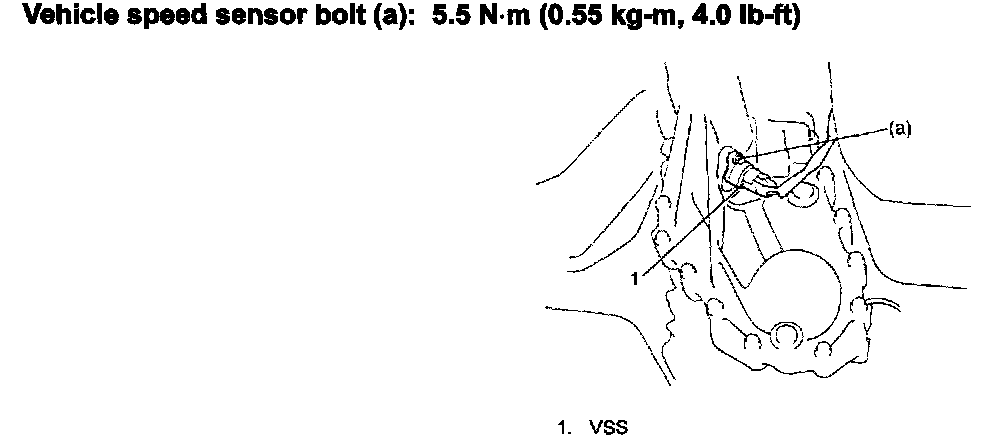

Installation
Reverse removal procedure for installation
