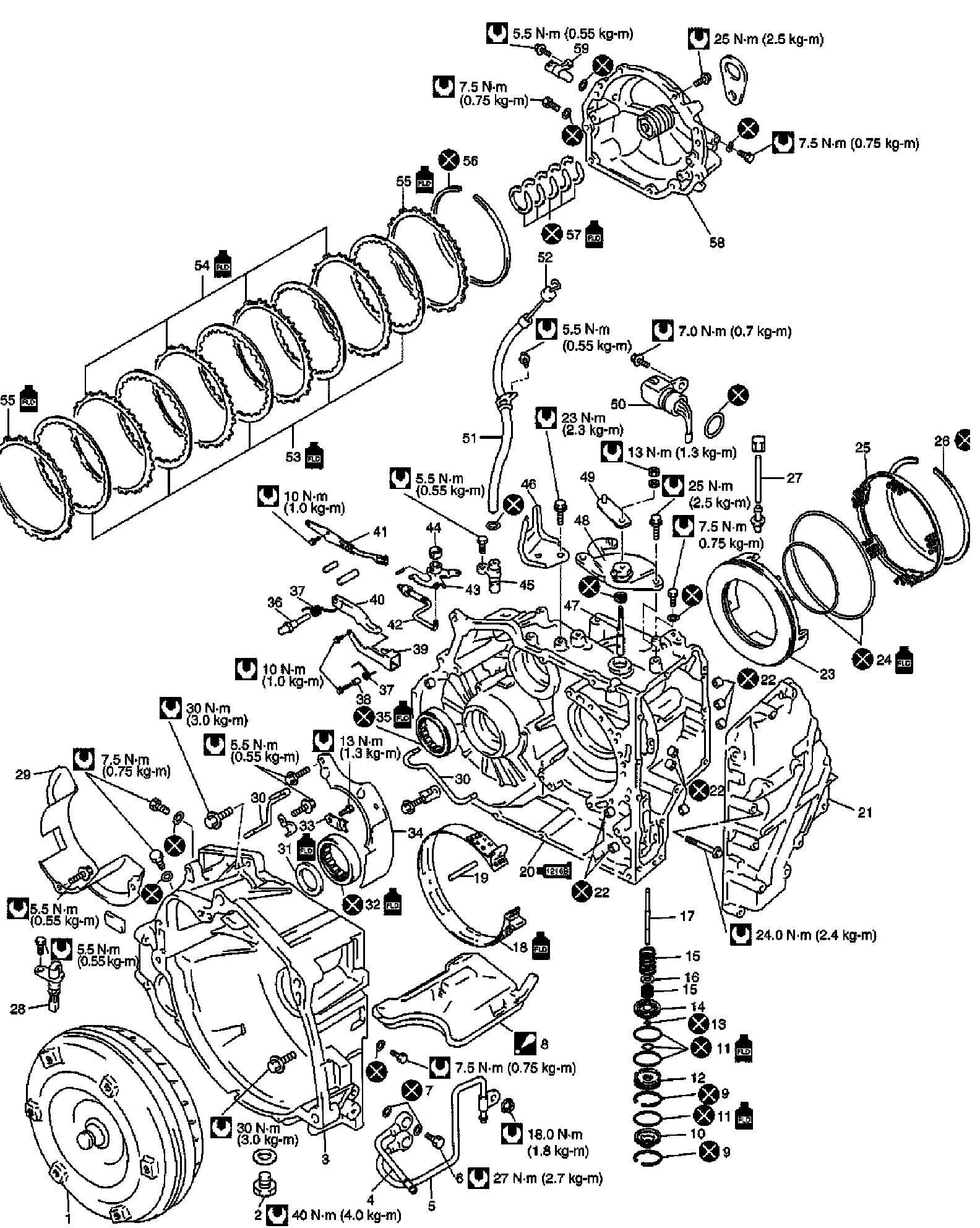

Automatic Transaxle Assembly Components

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

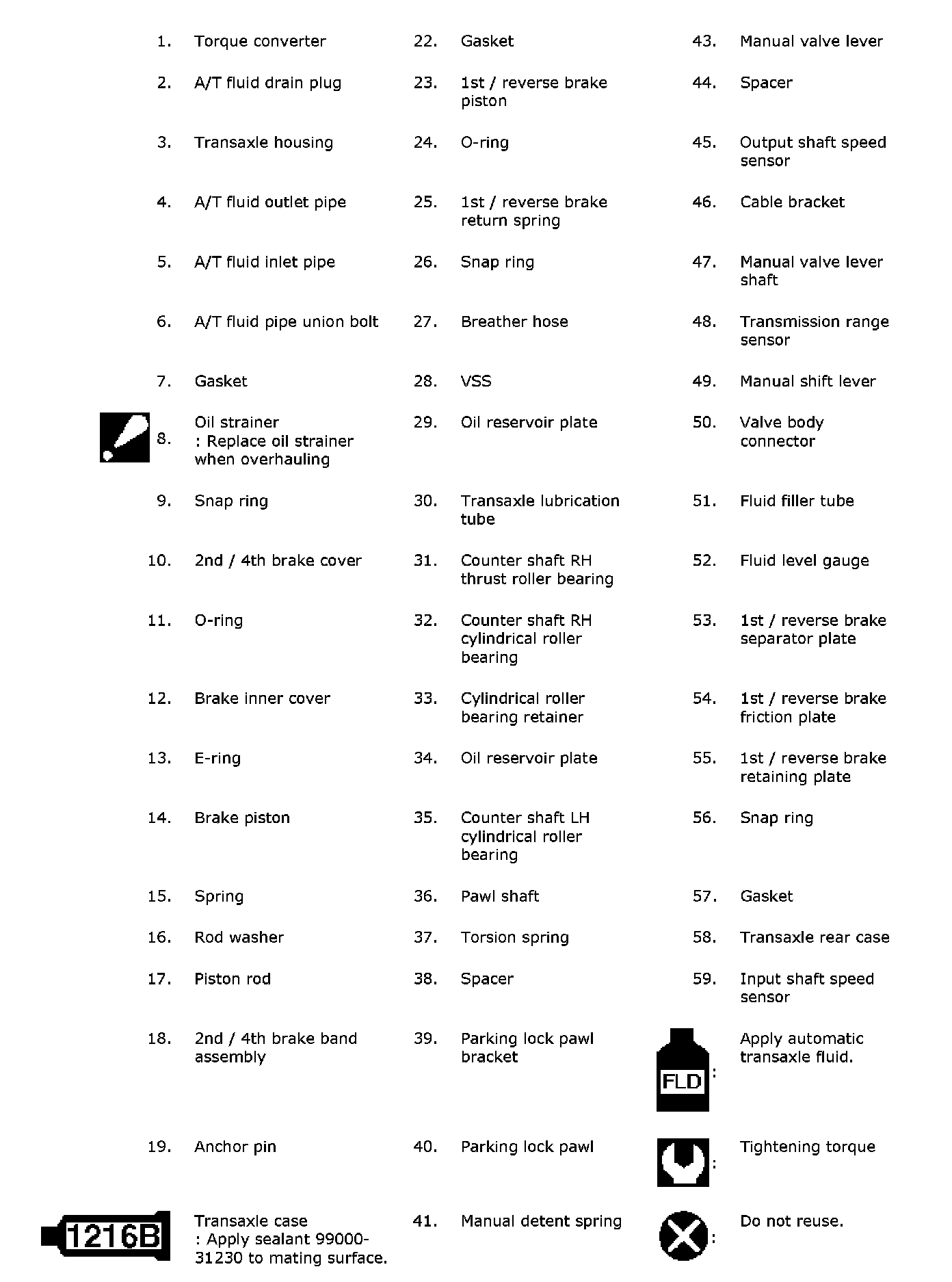

Automatic Transaxle Assembly Components
