Fail-Safe Table

Fail Safe Table

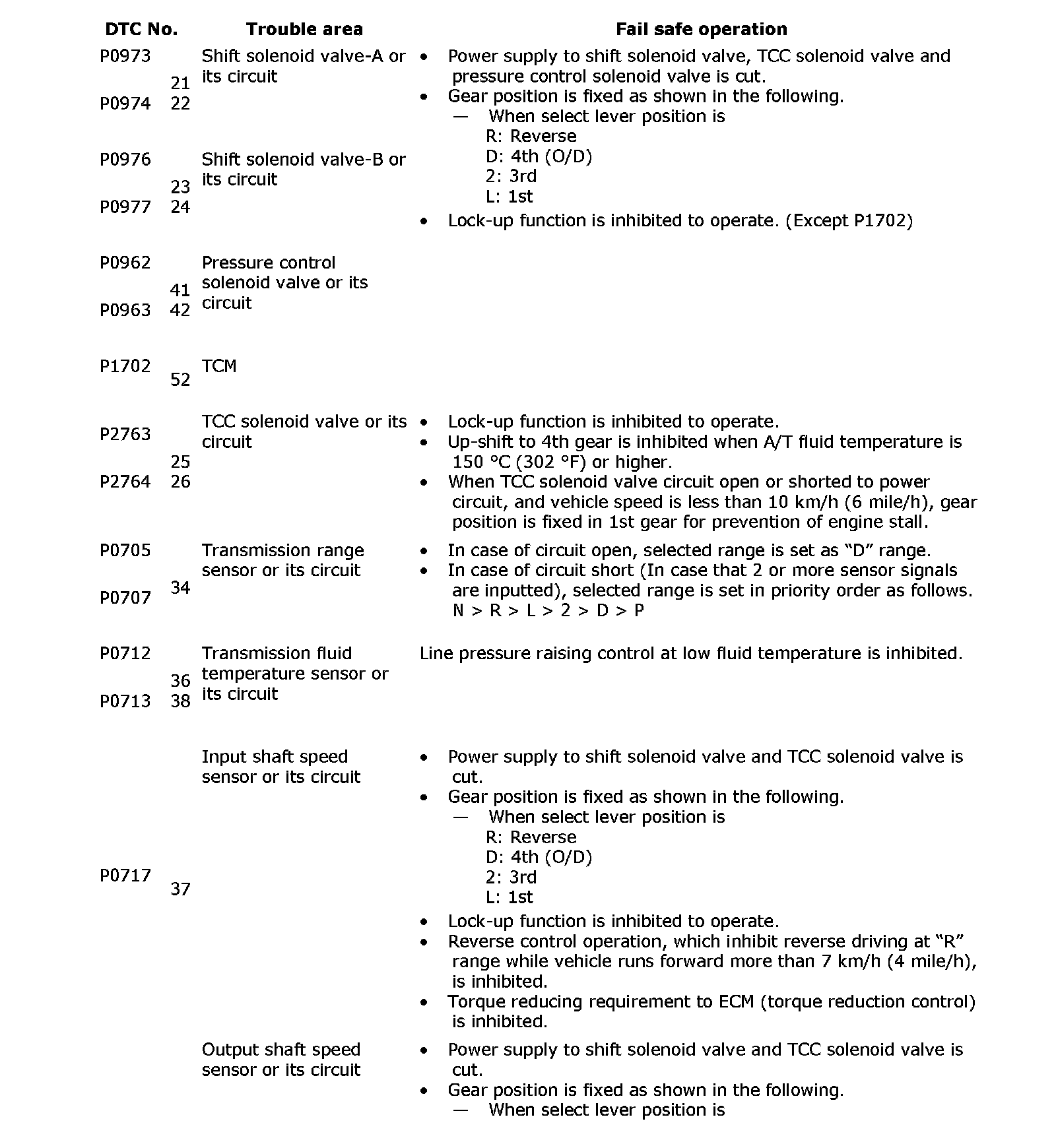

Part 1 Of 2:

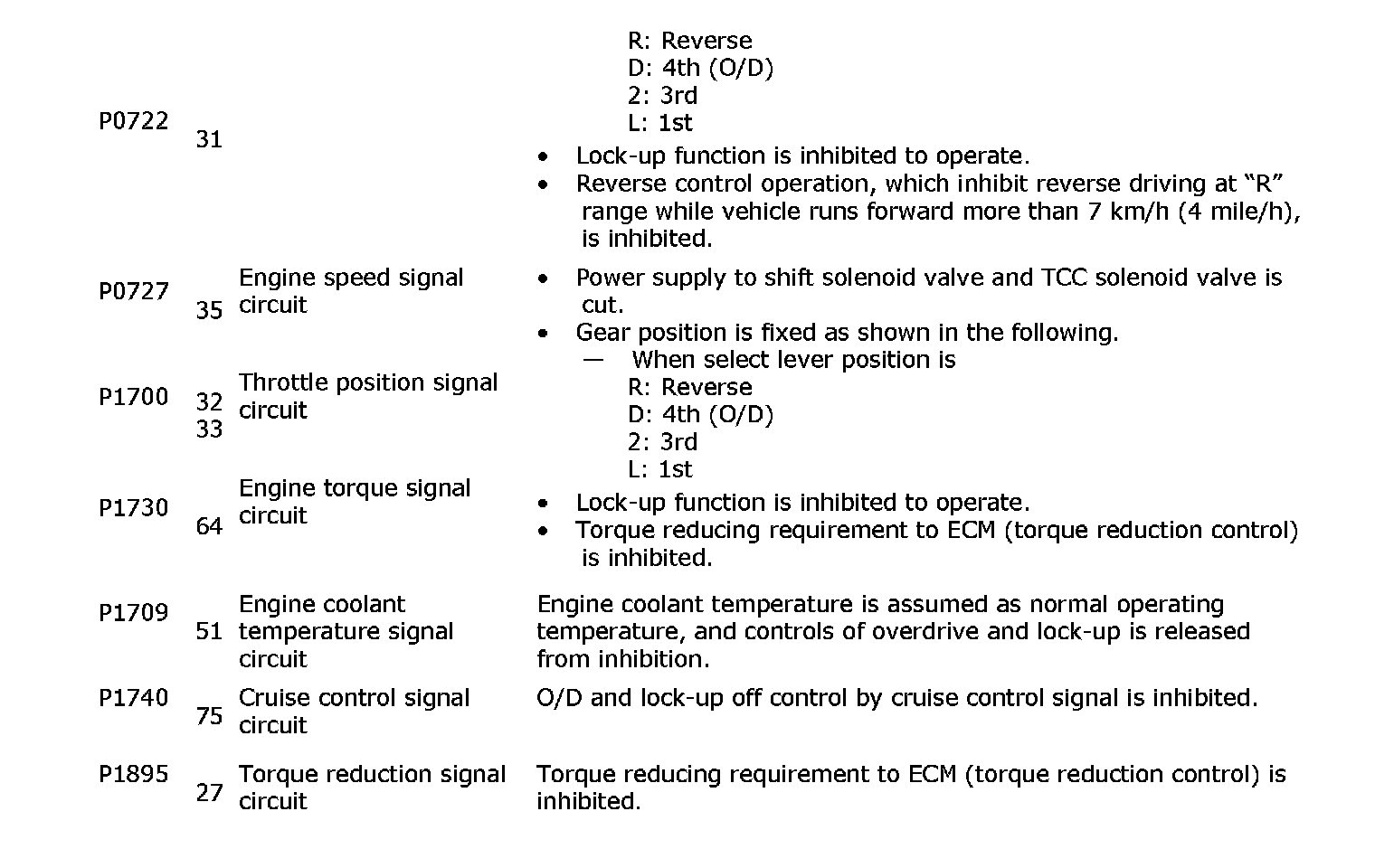

Part 2 Of 2:





This function is provided by the safe mechanism that assures safe driveability even when the solenoid valve, sensor or its circuit fails. The following table shows the fail safe function for each fail condition of sensor, solenoid, TCM or its circuit.
