Power Window Main Switch

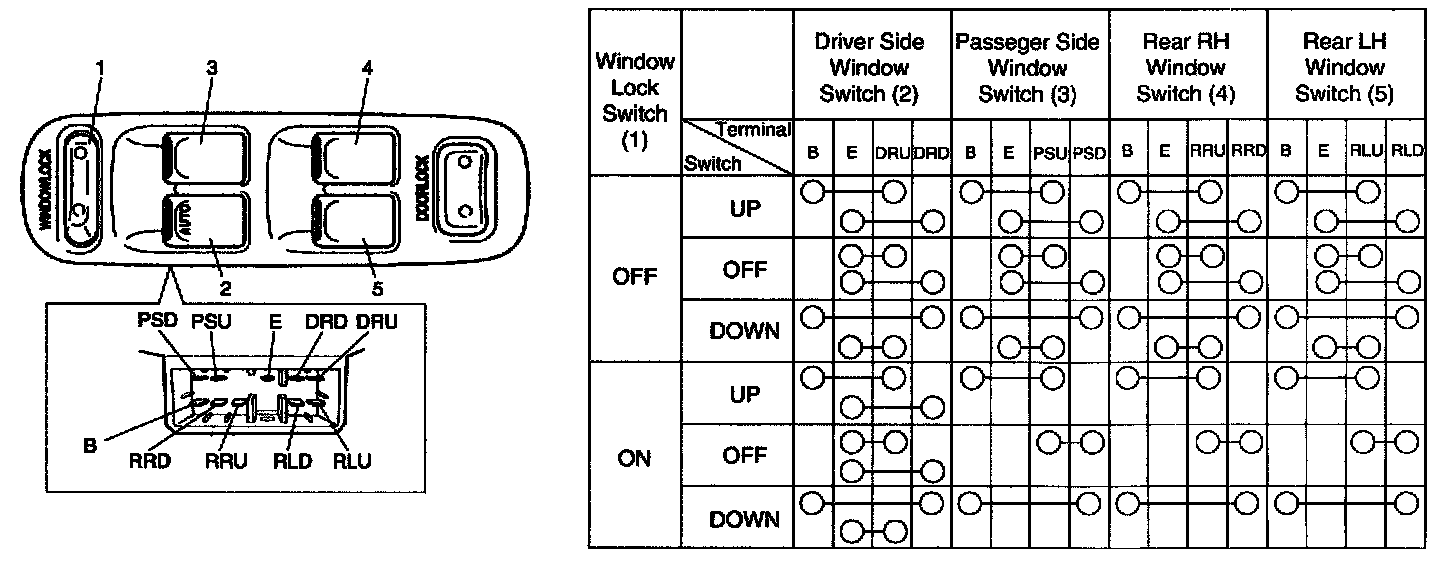

Power Window Main Switch Inspection:




Power Window Main Switch Inspection
Check for continuity between terminals at each switch position as shown in the figure. If check result is not as specified, replace.

Power Window Sub Switch Inspection:




Power Window Sub Switch Inspection
Check for continuity between terminals at each switch condition as shown in the figure.

If check result is not as specified, replace.
