System/Wiring Diagram

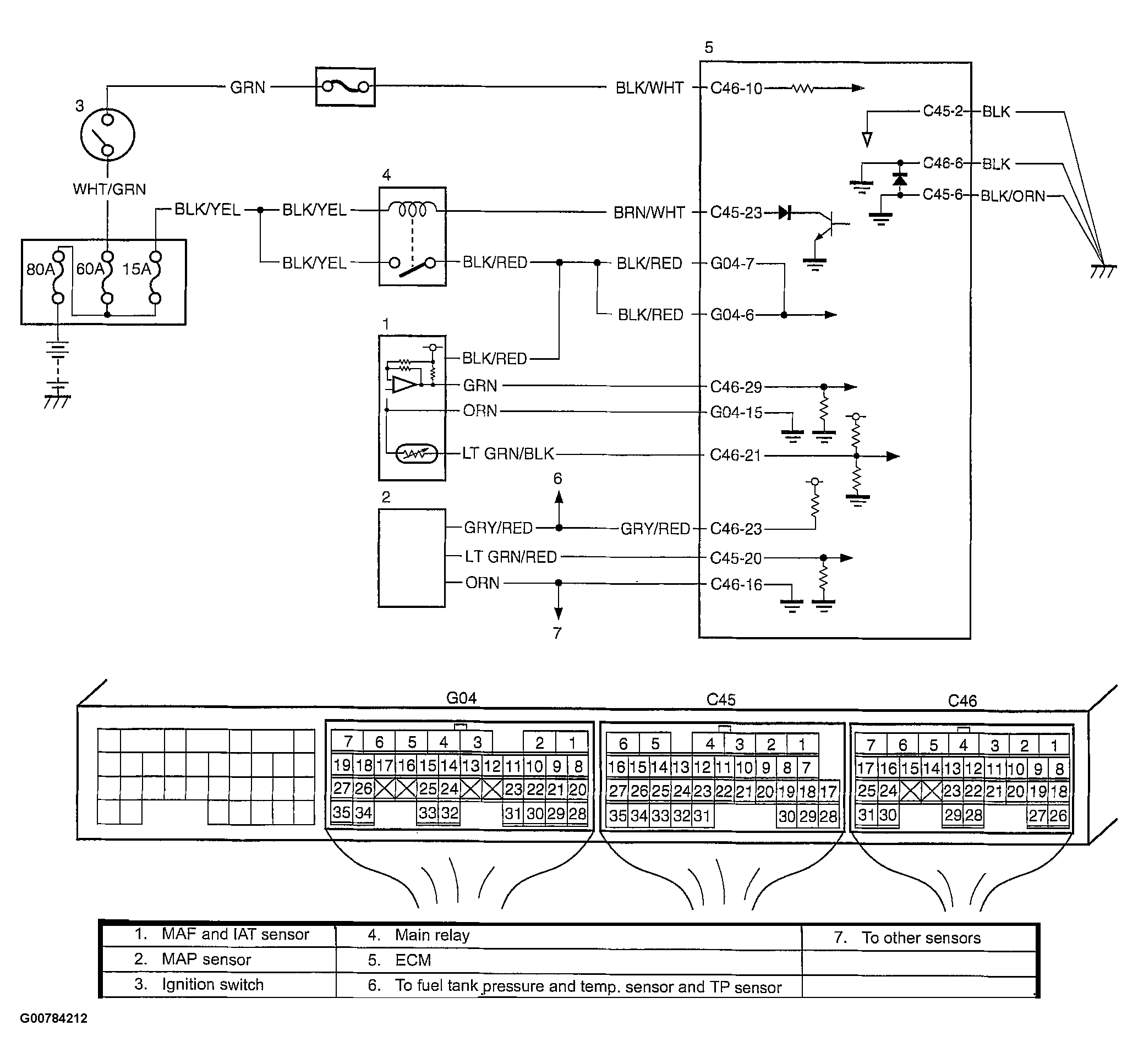

Fig 1: DTC P0102 Mass Air Flow Sensor Circuit Low Input - System Wiring Diagram
G00784212Courtesy of SUZUKI OF AMERICA CORP.
