DTC Troubleshooting

NOTE: When this DTC and P1700 are stored together, also clear DTC stored in TCM after completion of repair.

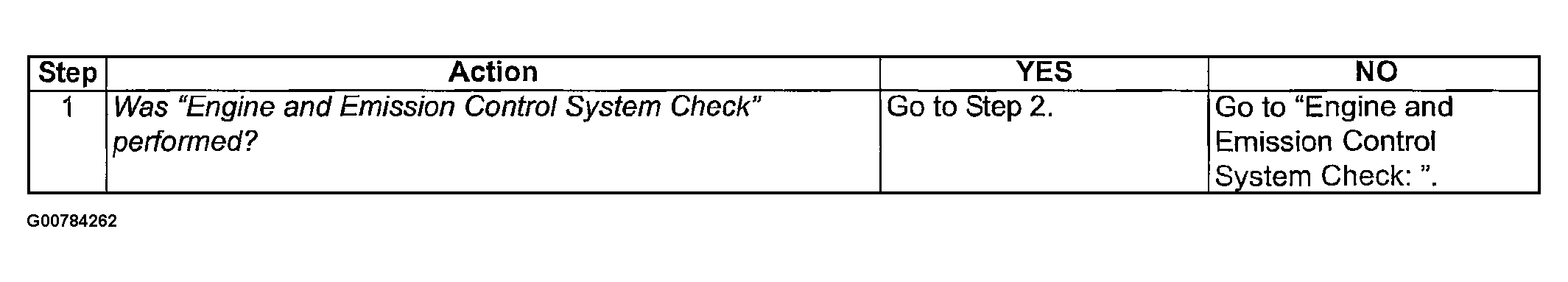

Fig 1: DTC Troubleshooting Chart (1 of 3)
G00784262Courtesy of SUZUKI OF AMERICA CORP.

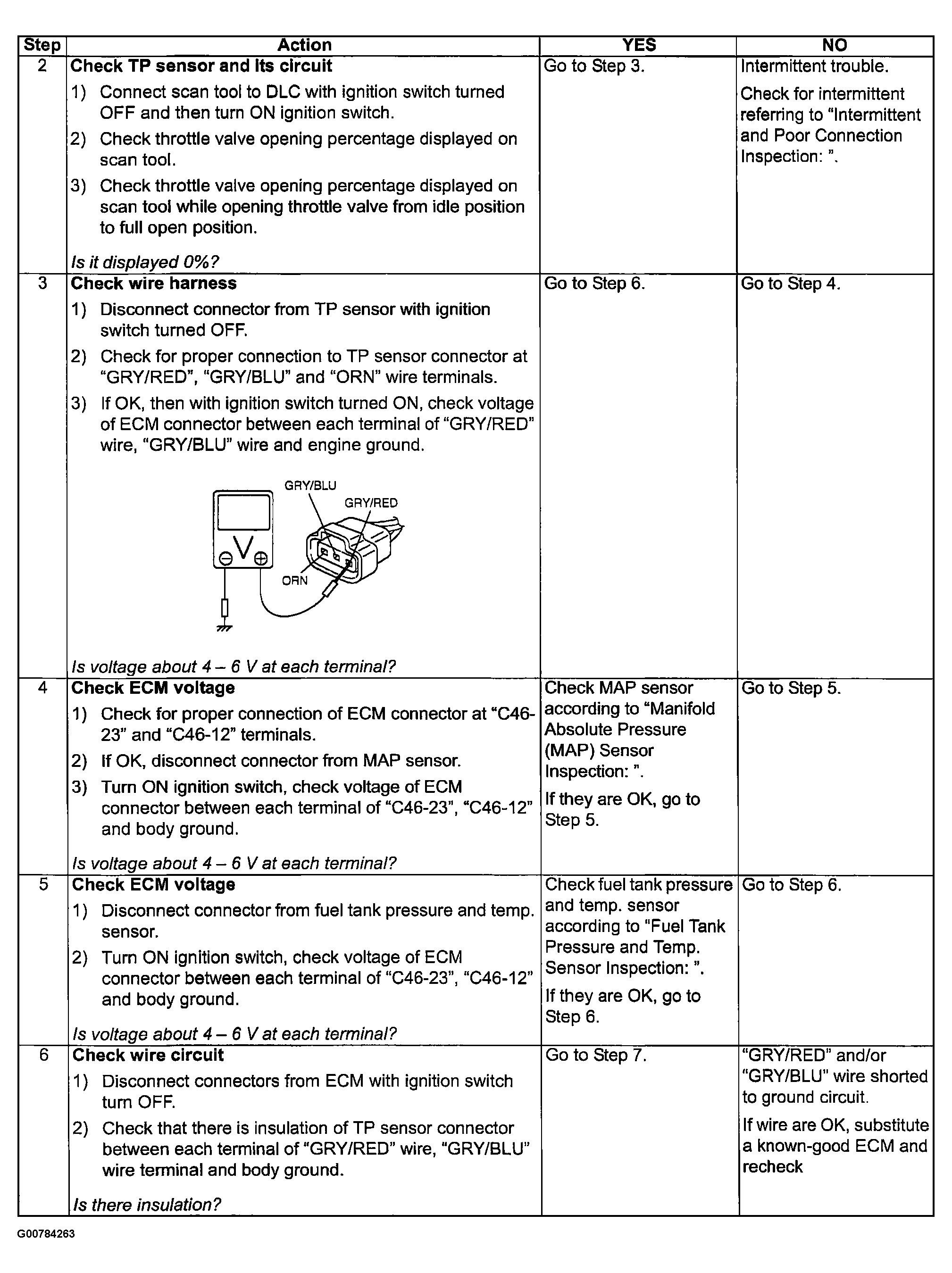

Fig 2: DTC Troubleshooting Chart (2 of 3)
G00784263Courtesy of SUZUKI OF AMERICA CORP.

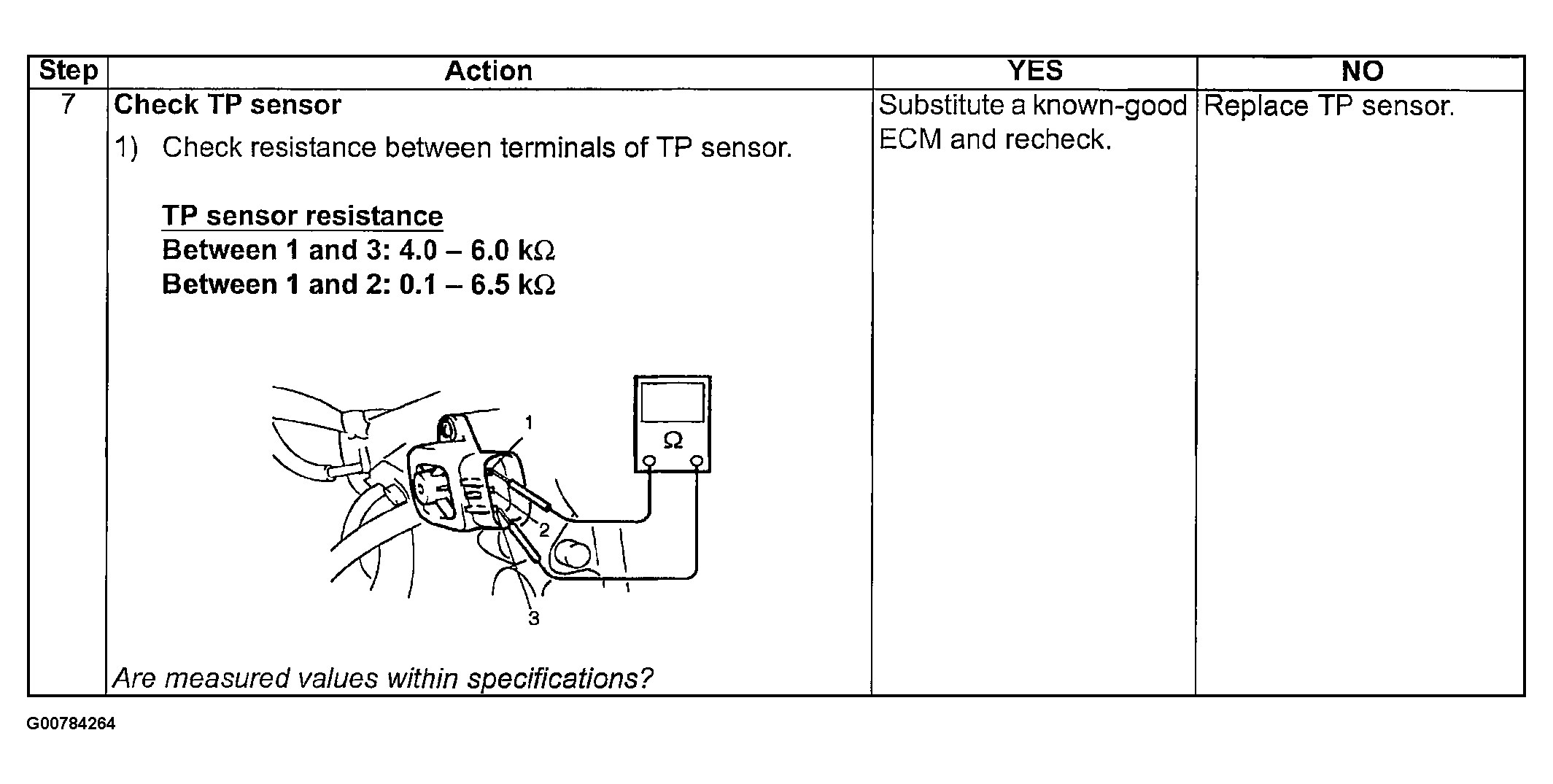

Fig 3: DTC Troubleshooting Chart (3 of 3)
G00784264Courtesy of SUZUKI OF AMERICA CORP.
