System/Wiring Diagram

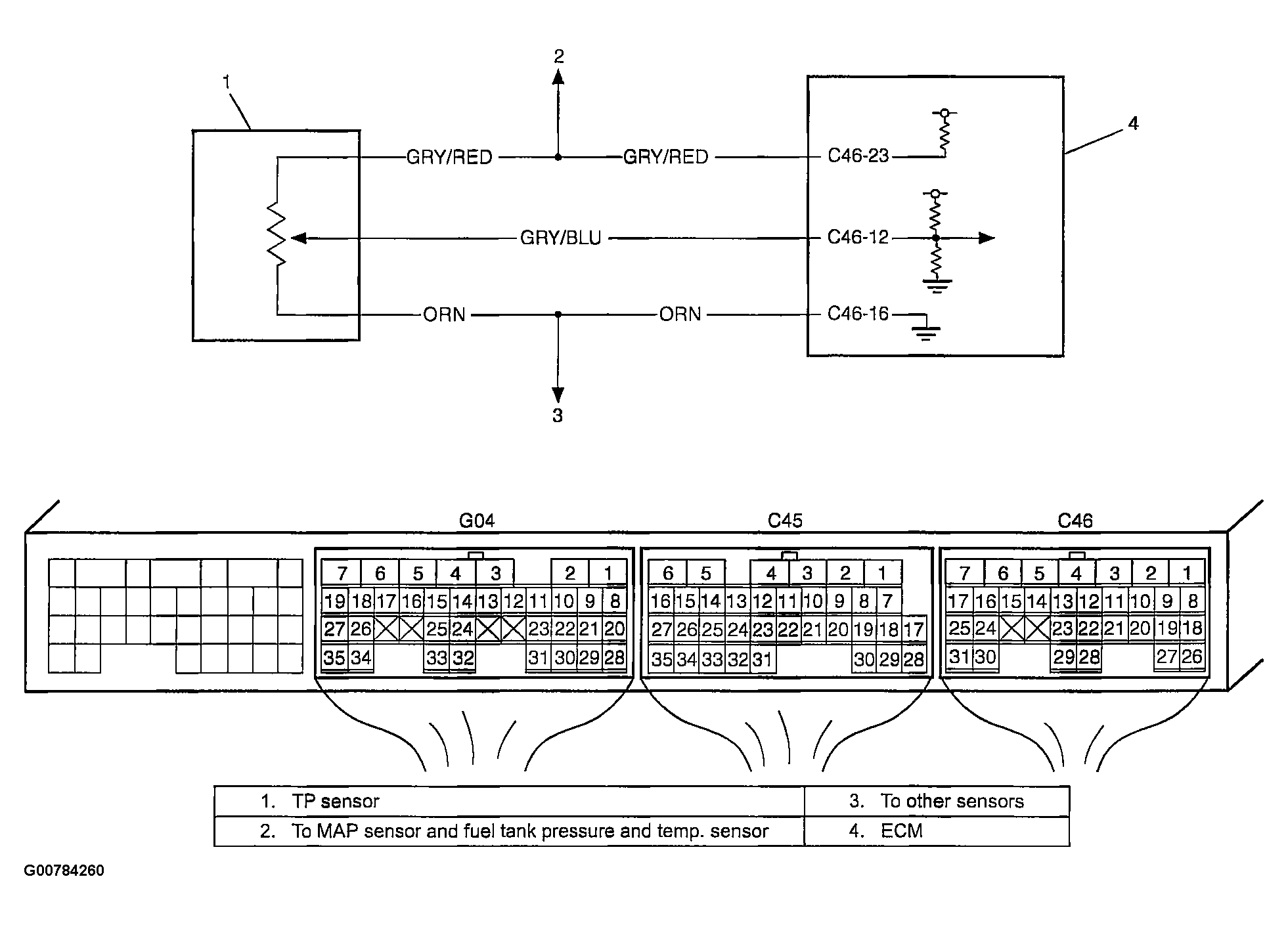

Fig 1: DTC P0122 Throttle Position Sensor Circuit Low Input - System Wiring Diagram
G00784260Courtesy of SUZUKI OF AMERICA CORP.
