System/Wiring Diagram

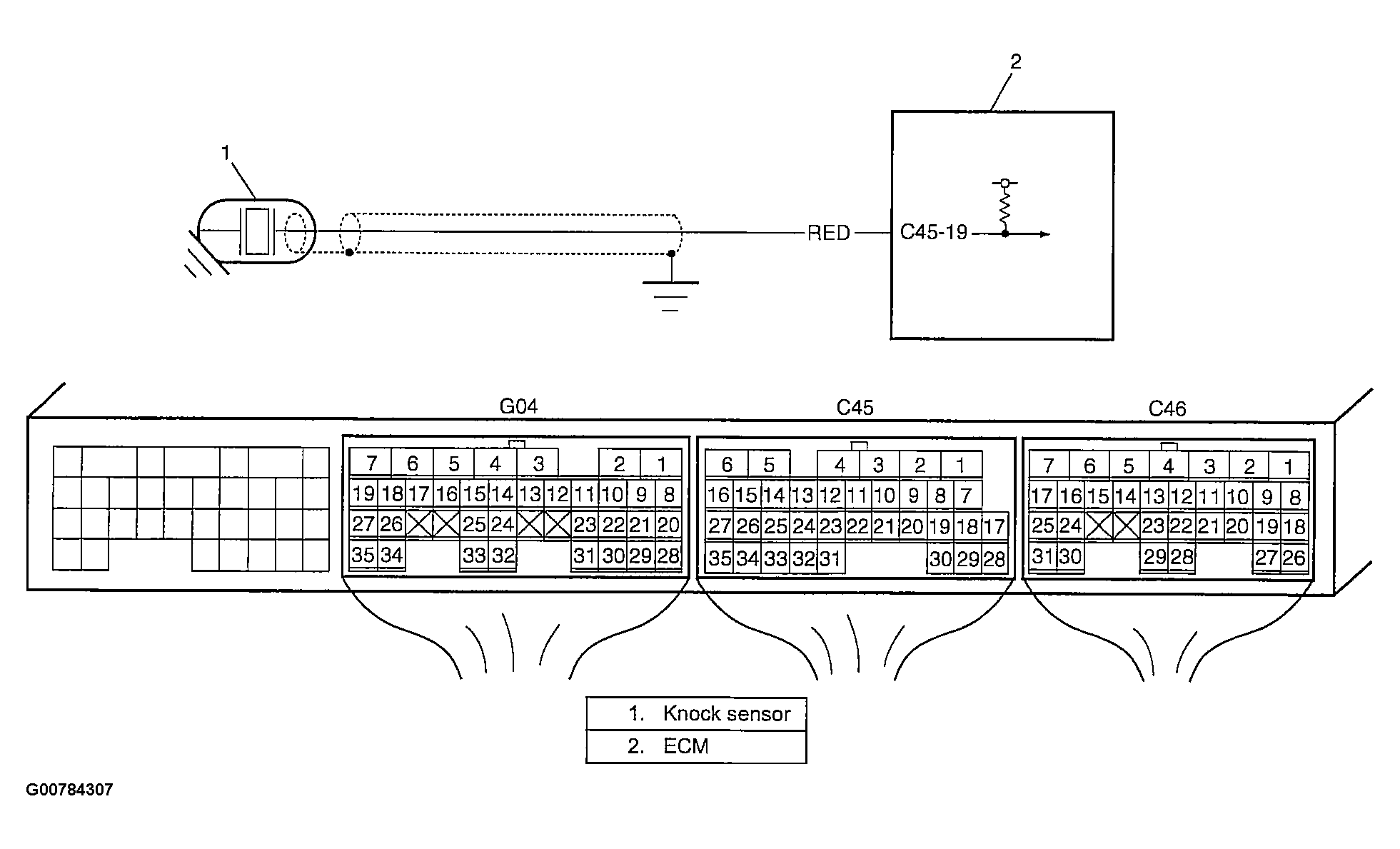

Fig 1: DTC P0327/P0328 Knock Sensor Circuit Low Input/High Input - System Wiring Diagram
G00784307Courtesy of SUZUKI OF AMERICA CORP.
