DTC P0401, P0402: Exhaust Gas Recirculation Flow Insufficient/Excessive Detected System
>>
DTC Detecting Condition and Trouble Area
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC Detecting Condition and Trouble Area

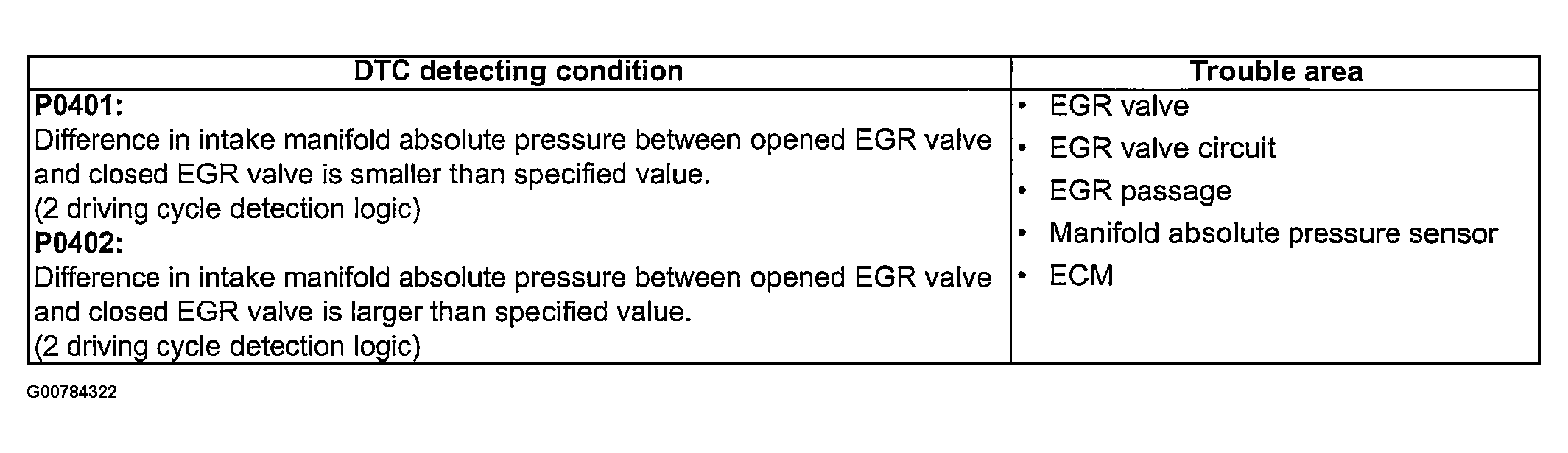

Fig 1: DTC Detecting Condition & Trouble Area Table
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
